Idler Pulley: Service and Repair



Drive Belt Idler Pulley Replacement

Removal Procedure





1. Remove the accessory drive belt.

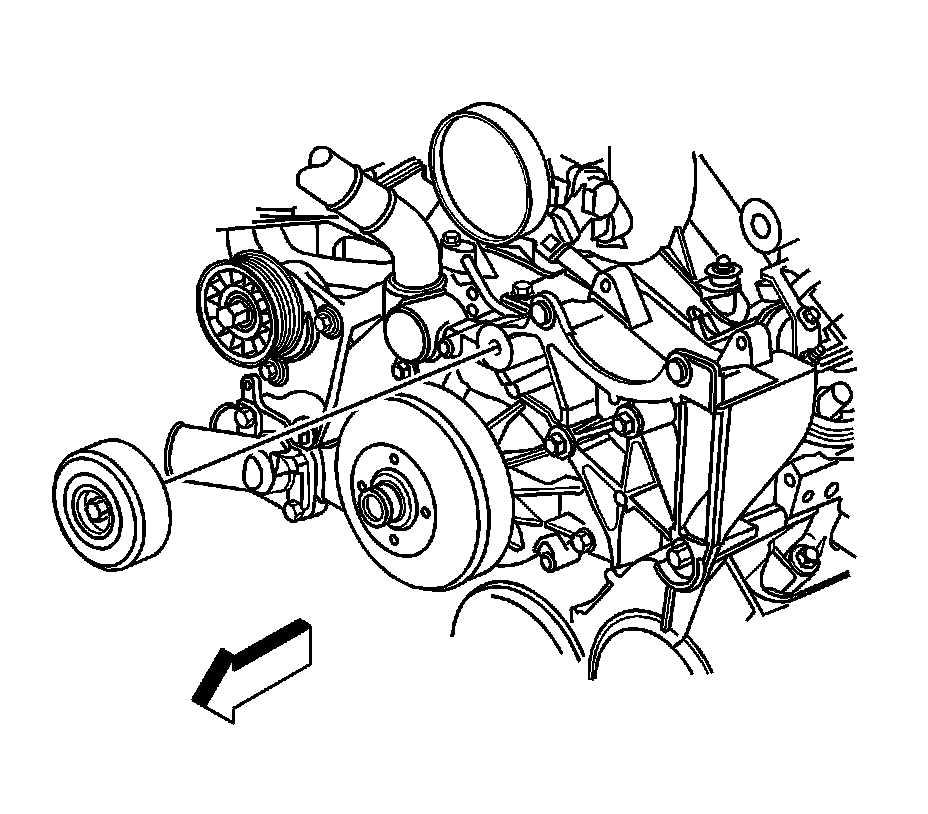

2. Remove the drive belt idler pulley and bolt.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the drive belt idler pulley and bolt to the generator bracket.
^ Tighten the bolt to 50 Nm (37 ft. lbs.).
2. Install the drive belt.
