Drive Belt Tensioner Replacement - Air Conditioning

Drive Belt Tensioner Replacement - Air Conditioning

Removal Procedure





1. Remove the air conditioning (A/C) drive belt.
2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.

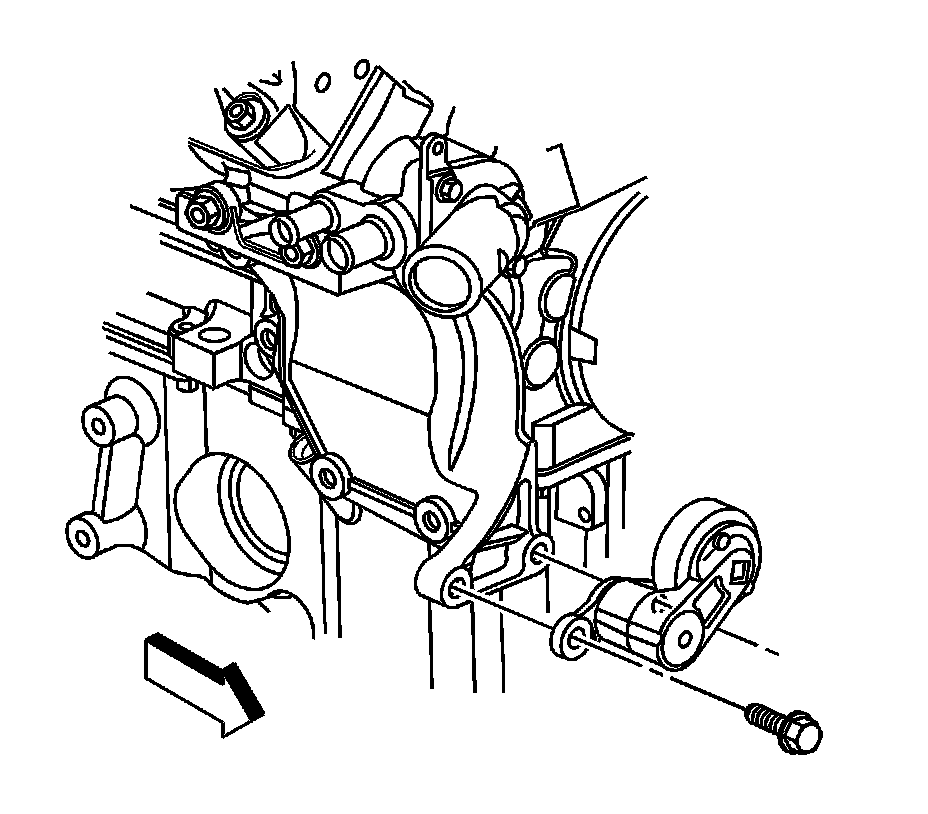

3. Remove the A/C belt tensioner bolts.
4. Remove the A/C belt tensioner.

Installation Procedure





1. Install the A/C belt tensioner.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the A/C belt tensioner bolts.
^ Tighten the bolts to 50 Nm (37 ft. lbs.).
3. Lower the vehicle.
4. Install the A/C drive belt.
