Iinterior Lights Dimming Diagram 1

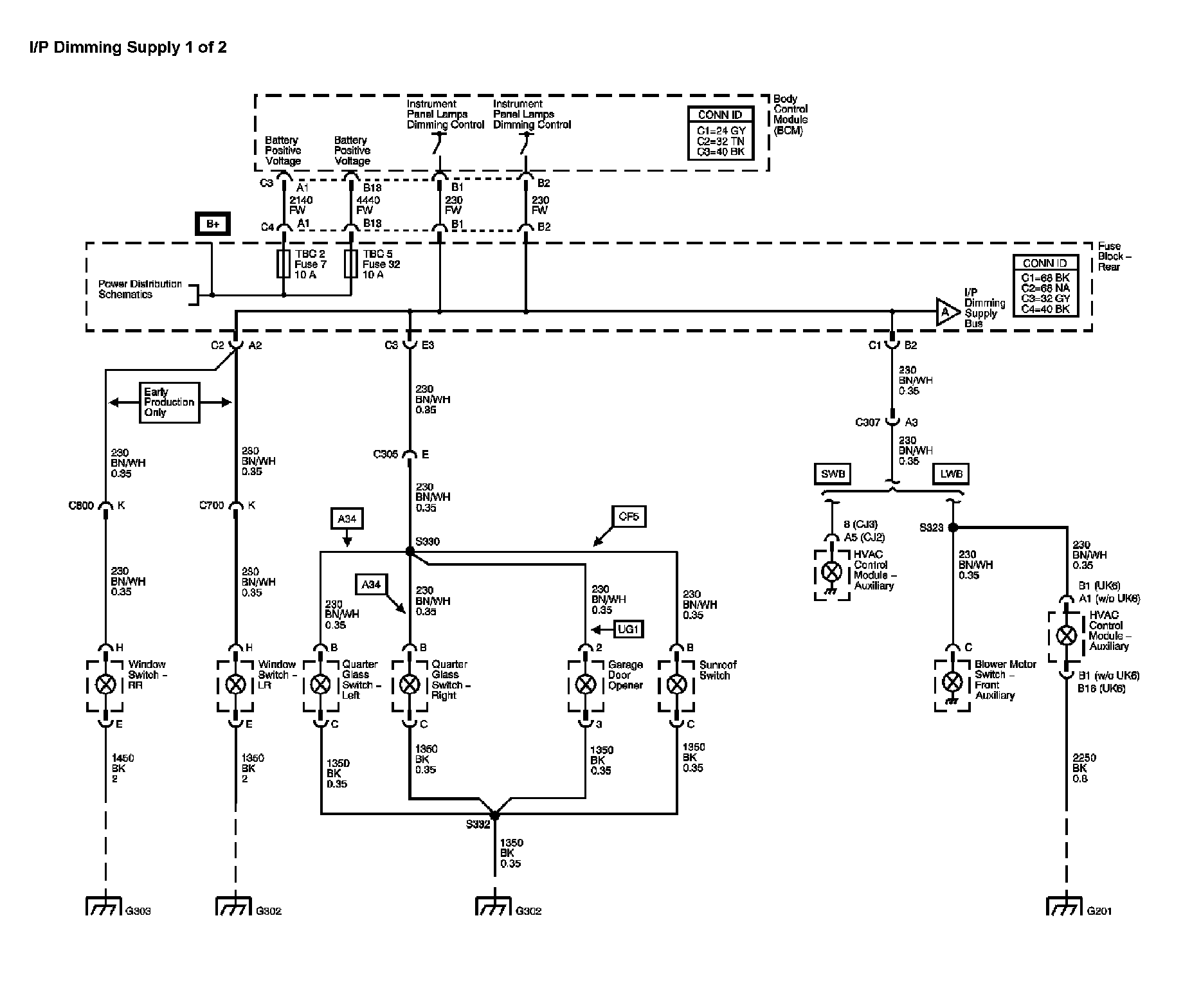

Interior Lights Dimming Diagram 1 (1 Of 2):

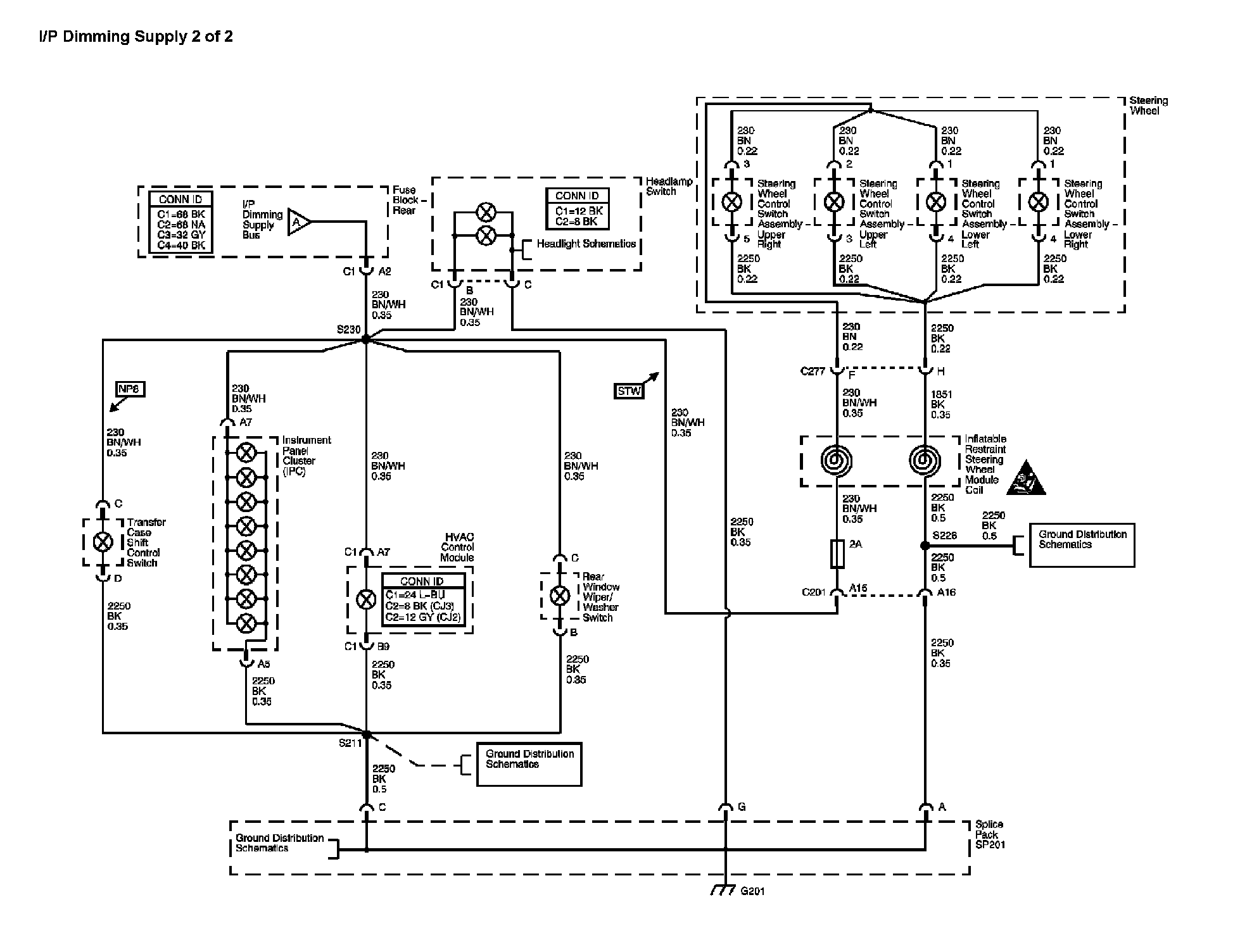

Interior Lights Dimming Diagram 1 (2 Of 2):

Next Diagram Iinterior Lights Dimming Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
