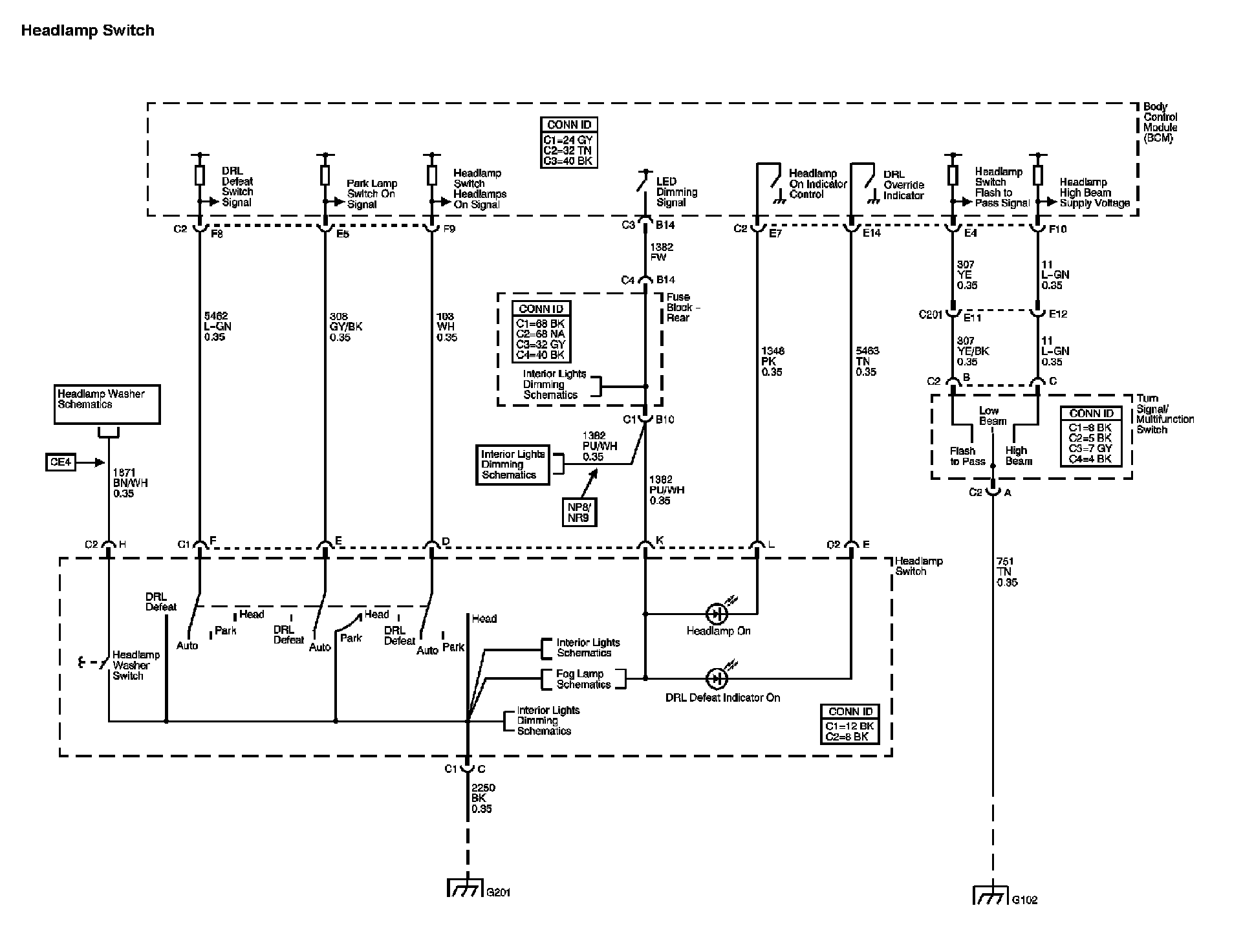

Headlights/Daytime Running Lights (DRL) Diagram 2

Headlights/Daytime Running Lights (DRL) Diagram 2:

Previous Diagram Headlights/Daytime Running Lights (DRL) Diagram 1

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
