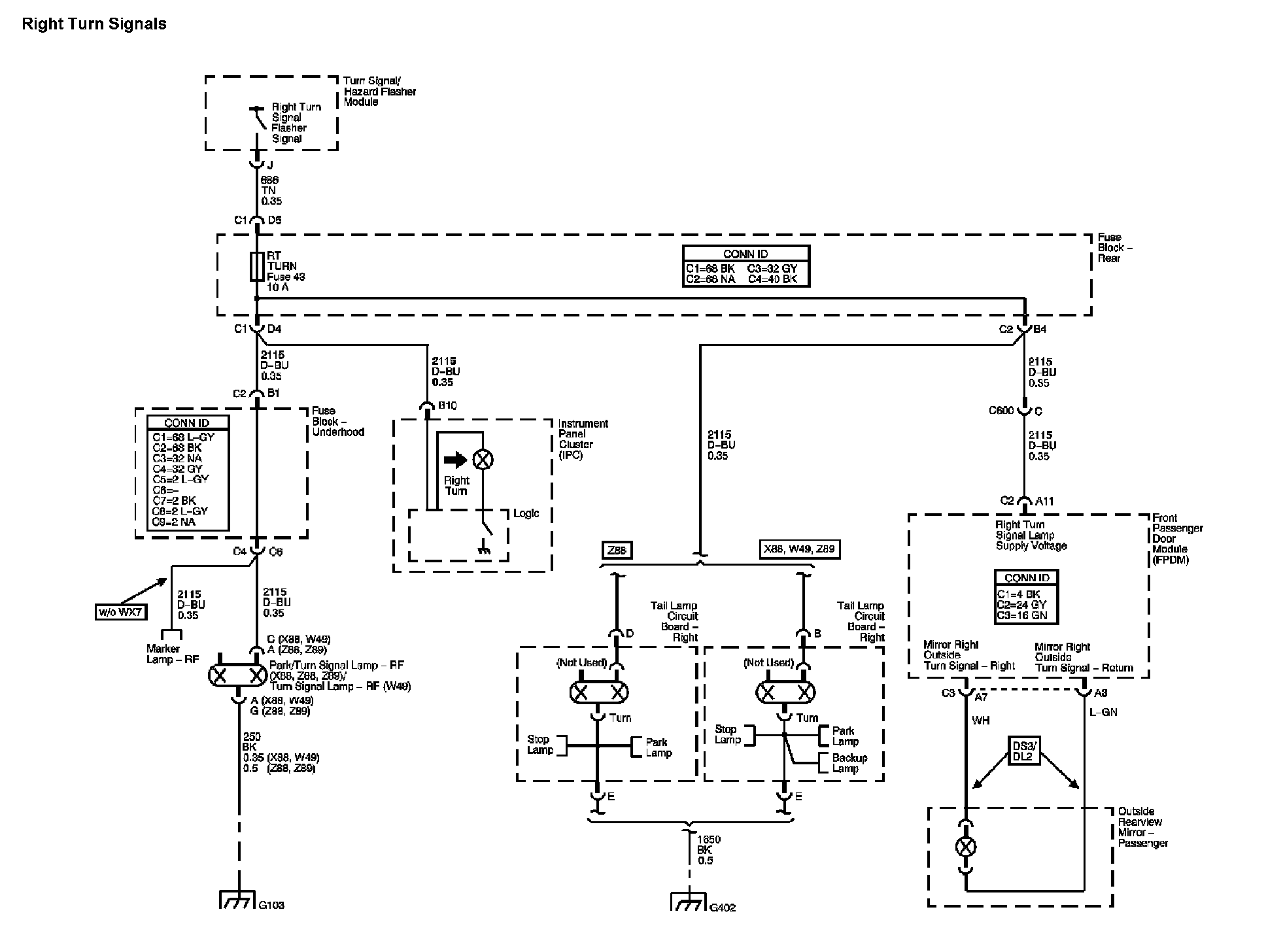

Exterior Lights Diagram 7

Exterior Lights Diagram 7:

Next Diagram Exterior Lights Diagram 8

Previous Diagram Exterior Lights Diagram 6

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
