Home >> Isuzu >> 2006 >> Ascender 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Door Actuator / Motor, HVAC >> HVAC System - Manual >> Mode Actuator - Auxiliary (Long Wheel Base)

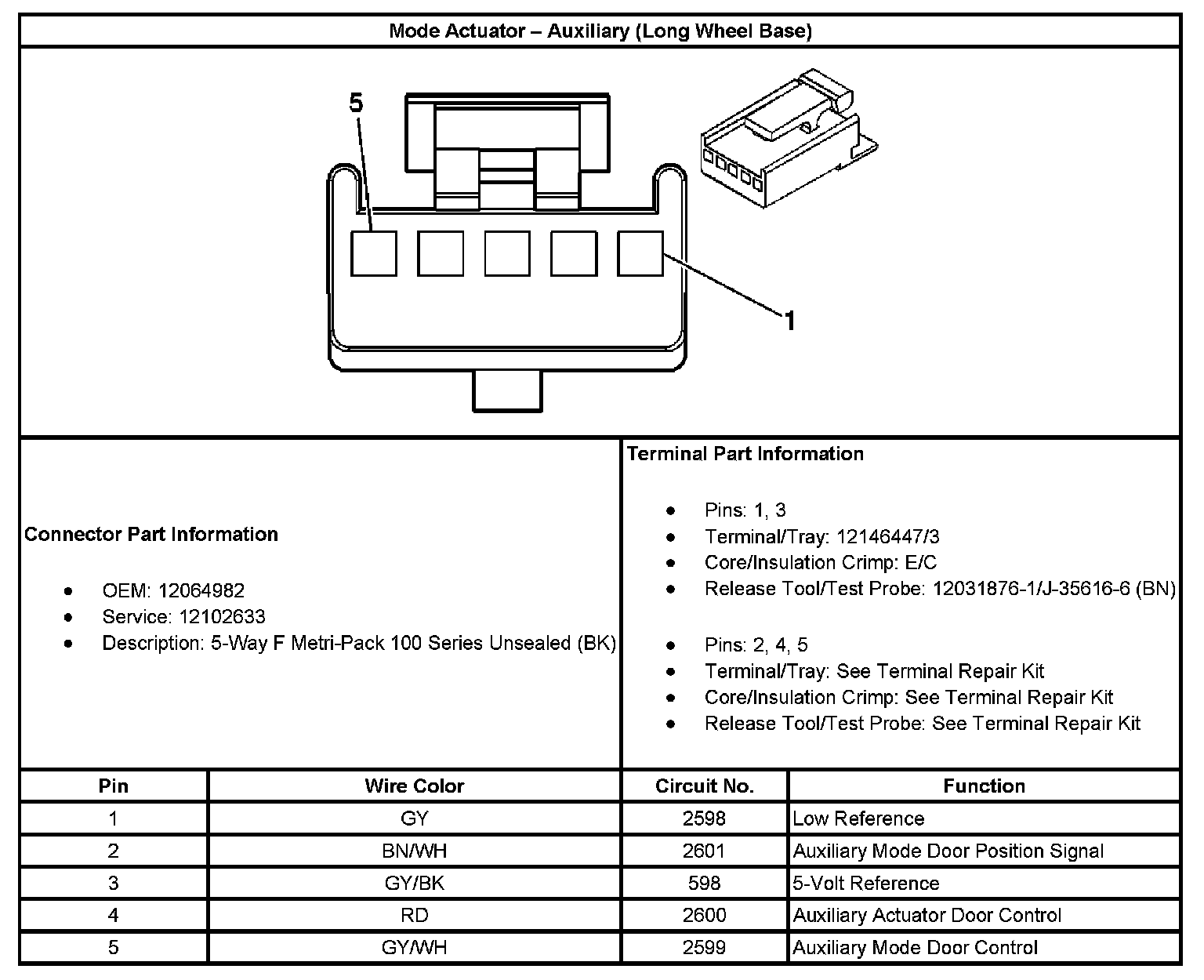

Mode Actuator - Auxiliary (Long Wheel Base)

Mode Actuator - Auxiliary (Long Wheel Base):
