Home >> Isuzu >> 2004 >> Rodeo 2WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 150 >> 150-3 to 150-5

150-3 to 150-5

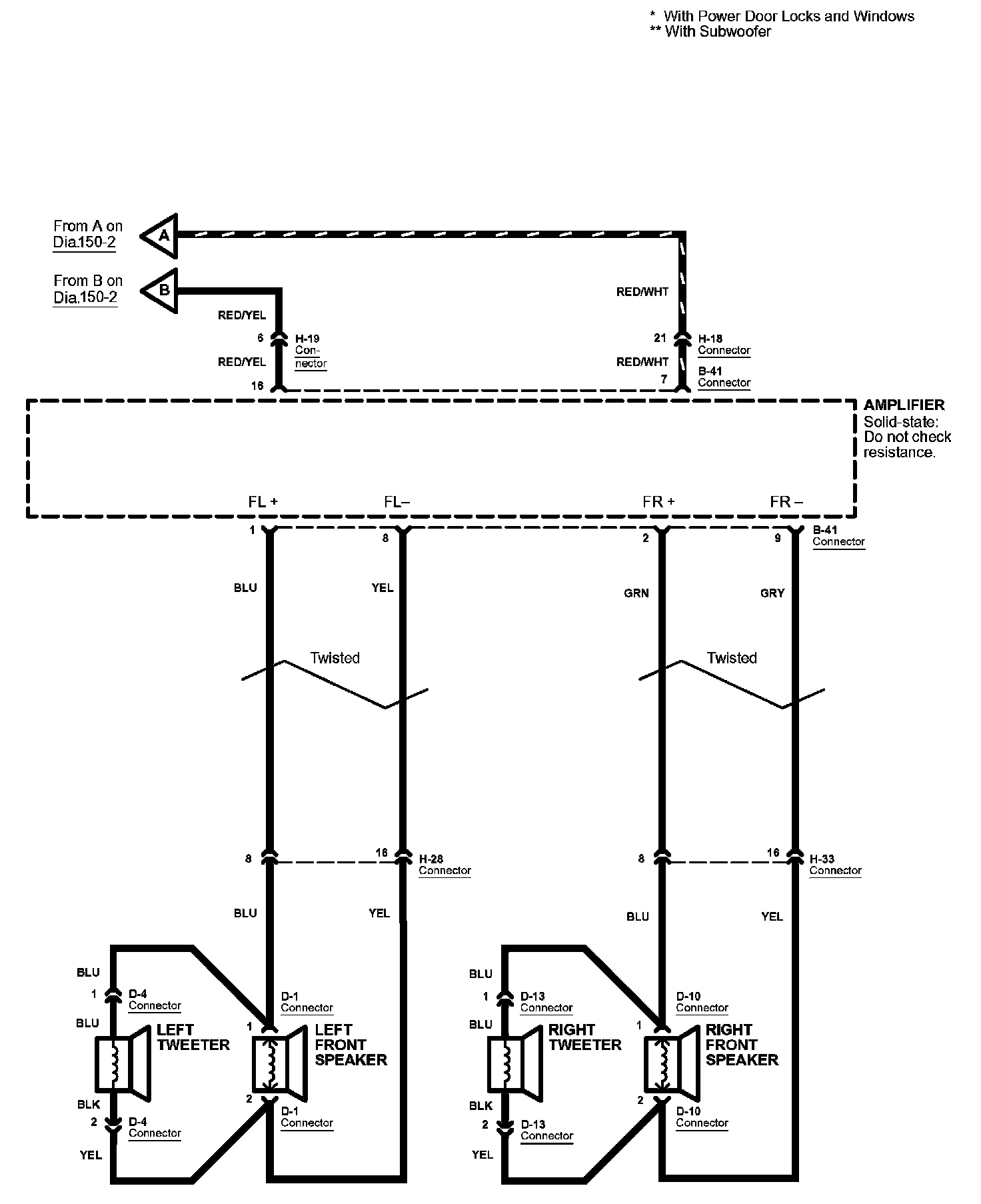

Diagram 150-3 (Sound System - With Amplifier):

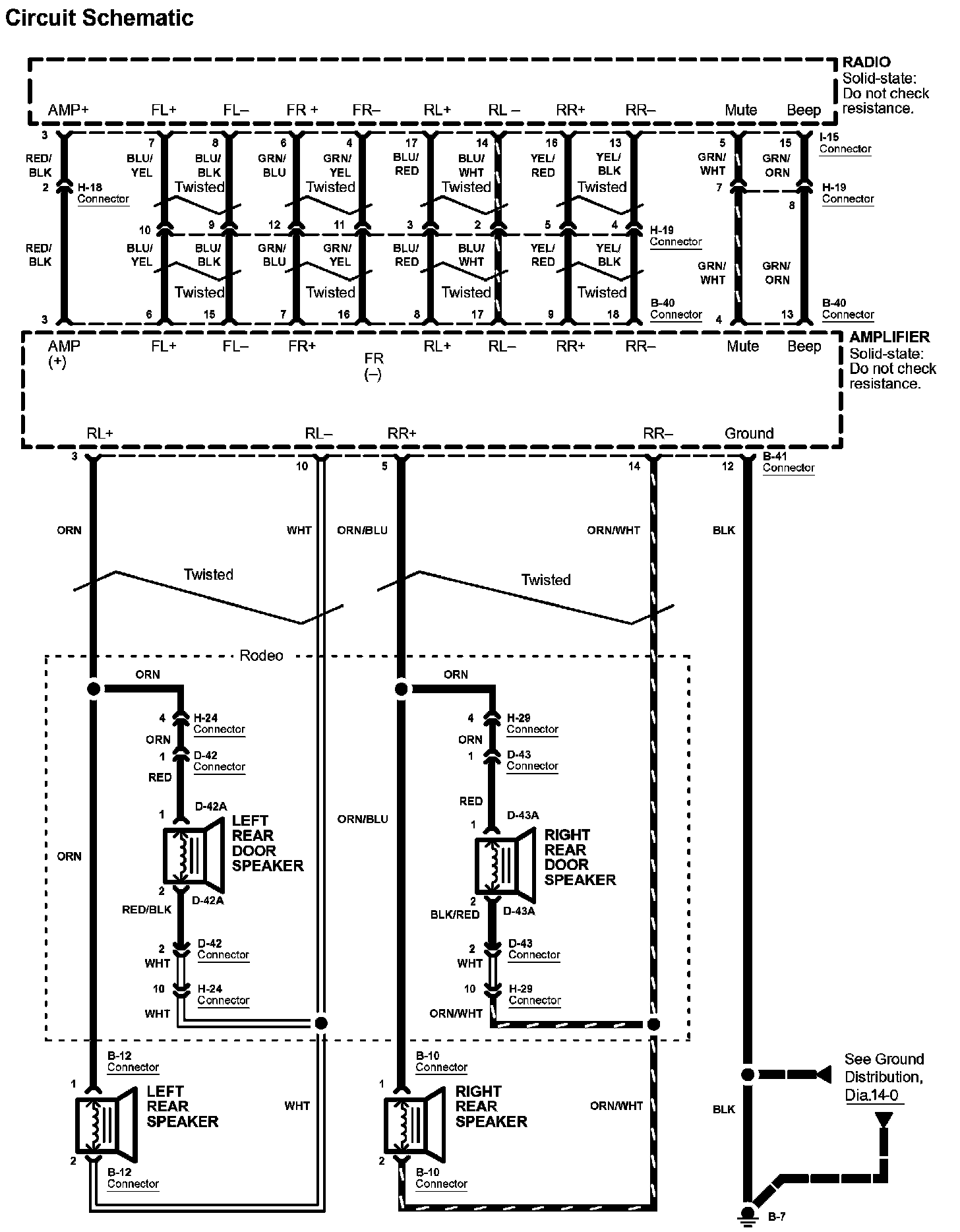

Diagram 150-4 (Sound System - With Amplifier):



Diagram 150-5 (Sound System - Steering Wheel Controls):
