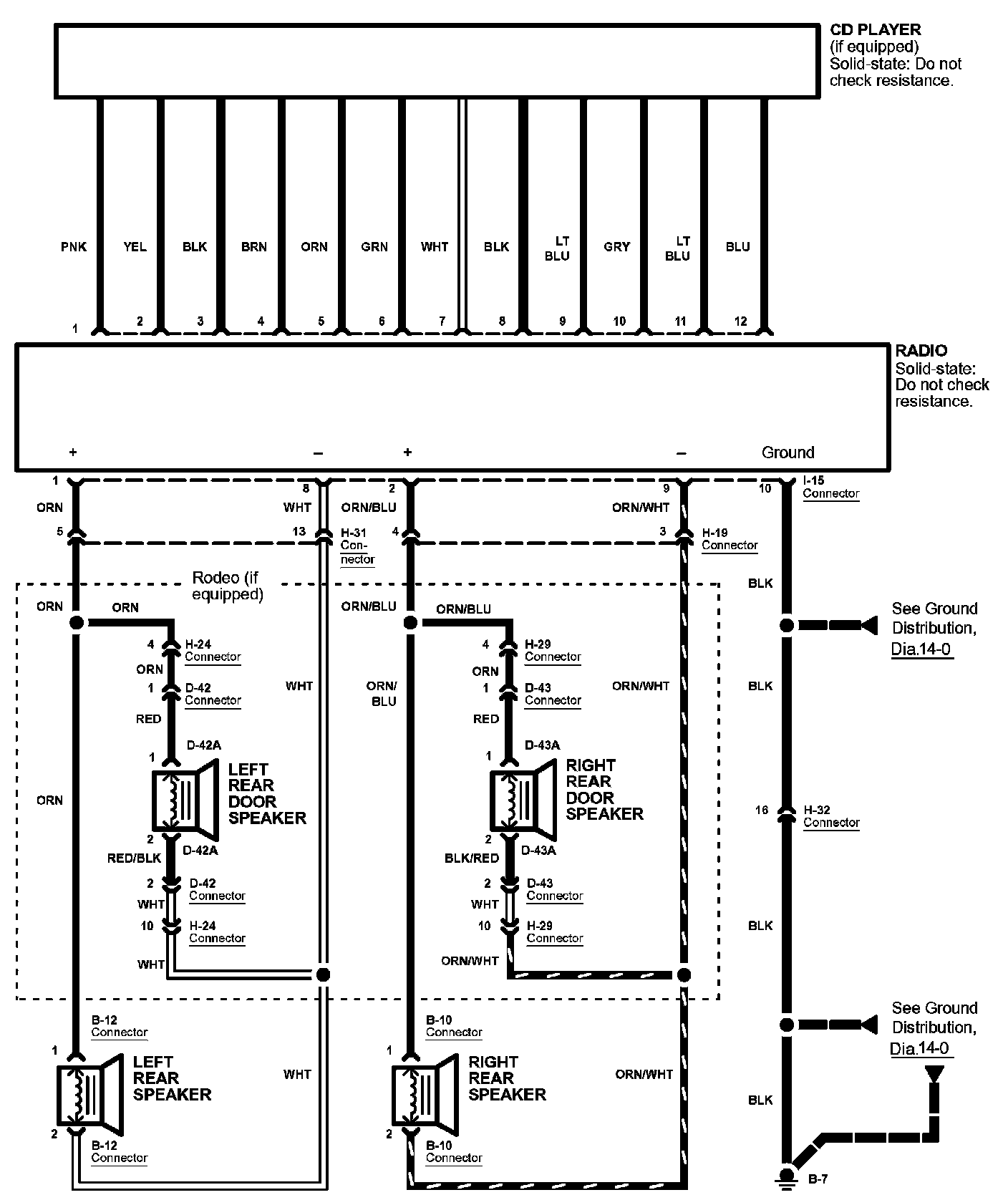

Diagram 150-0 (Sound System - Without Amplifier):

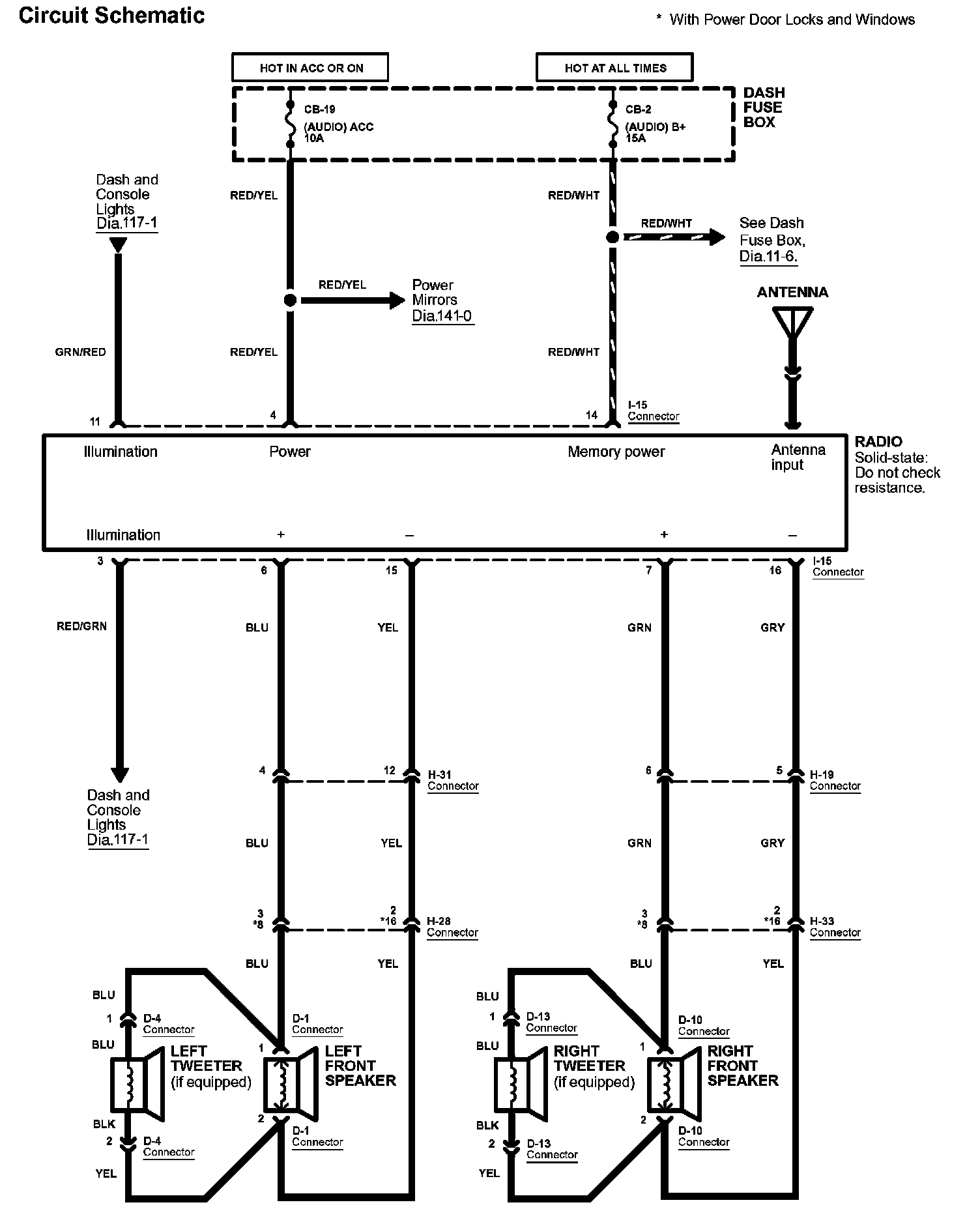

Diagram 150-1 (Sound System - Without Amplifier):

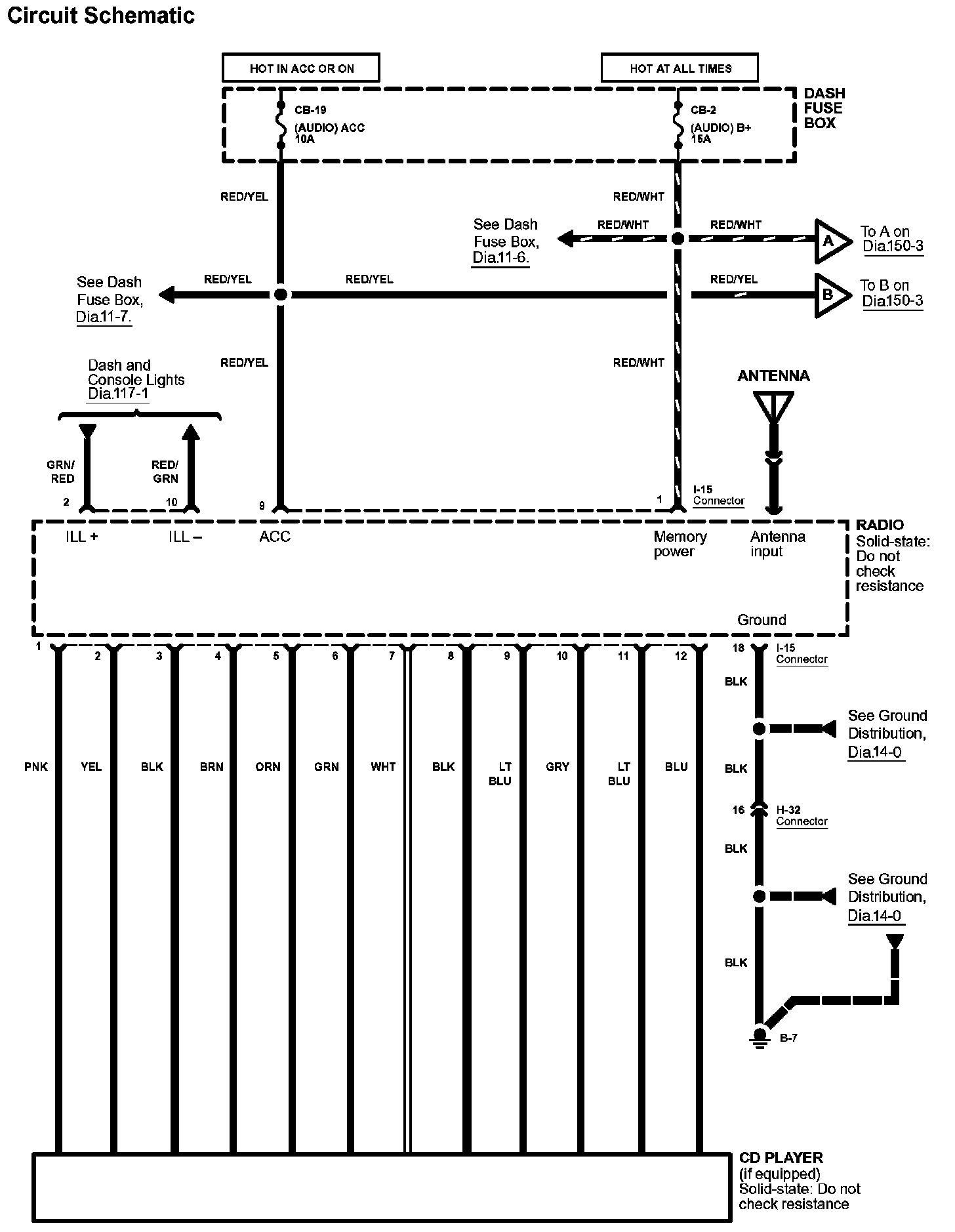

Diagram 150-2 (Sound System - With Amplifier):
