Chart B-16: Rear Dump Solenoid Coil Failure (DTC 46 (Flash out) / C0252, C0254 (Serial Communications))

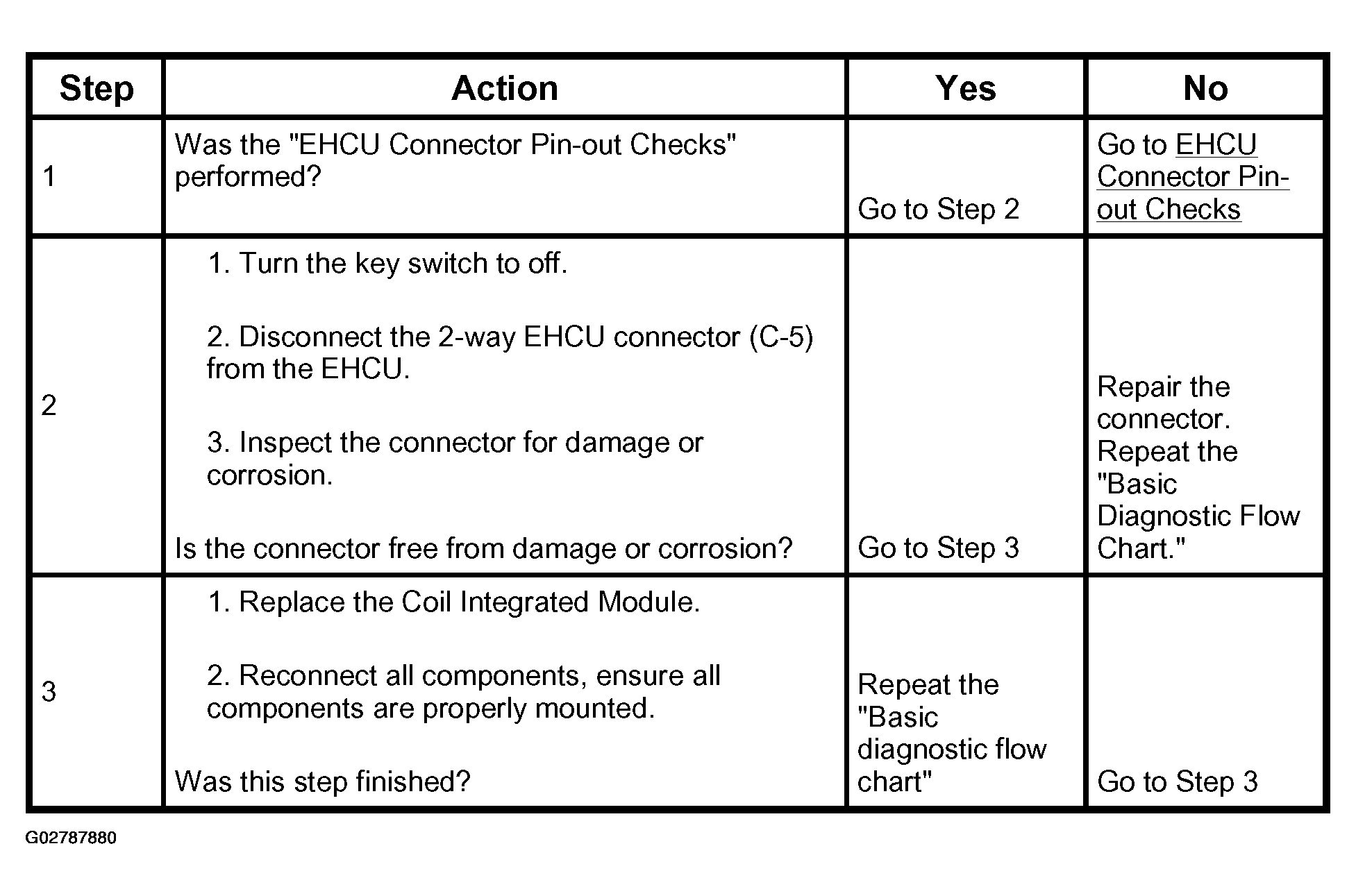

Fig 1: Diagnostic Chart - Rear Dump Solenoid Coil Failure (DTC 46 (Flash Out) / C0252, C0254 (Serial Communications))
G02787880Courtesy of ISUZU MOTOR CO.
