Chart B-15: Rear Isolation Solenoid Coil Failure (DTC 45 (Flash out) / C0251, C0253 (Serial Communications))

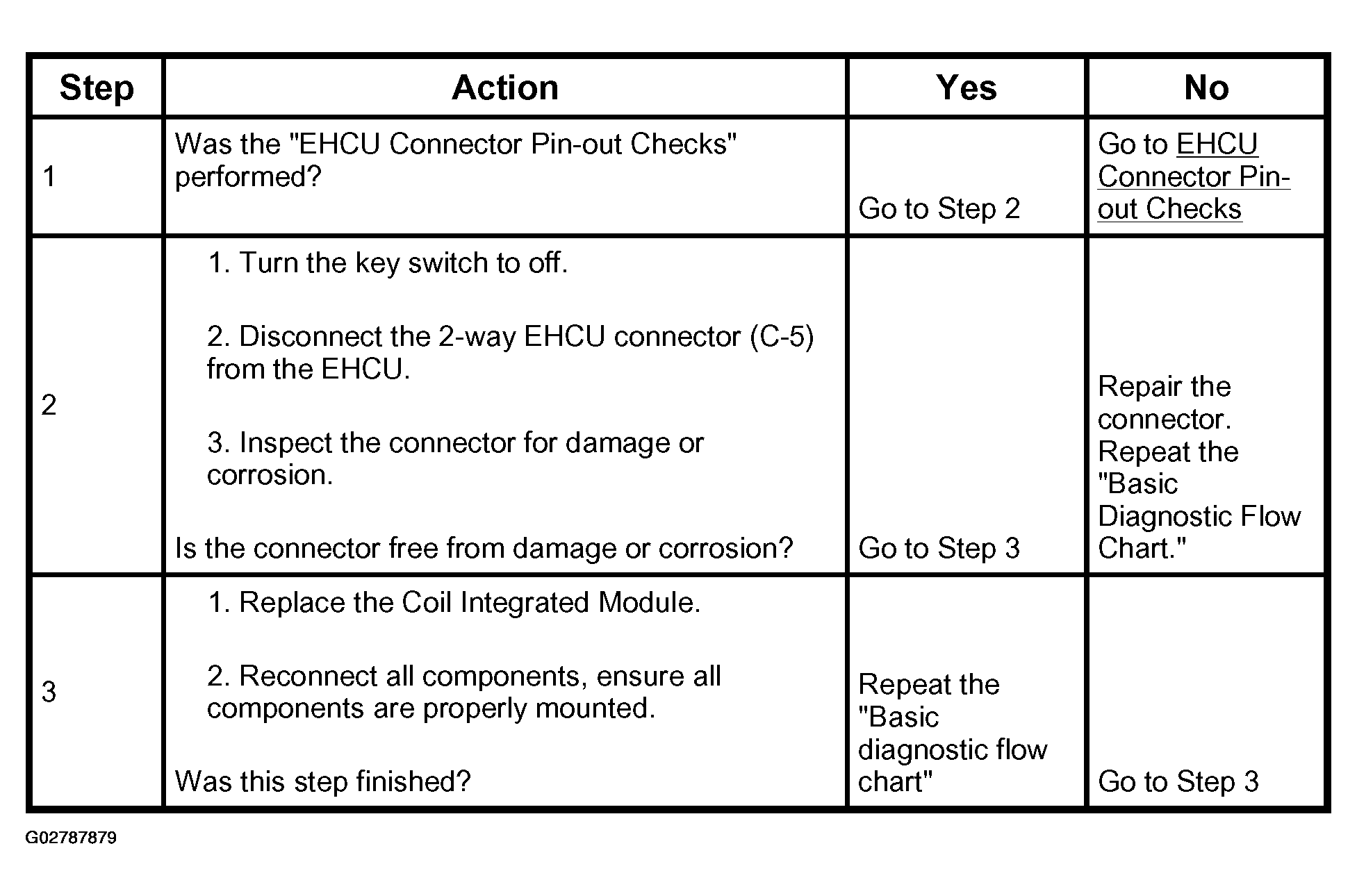

Fig 1: Diagnostic Chart - Rear Isolation Solenoid Coil Failure
G02787879Courtesy of ISUZU MOTOR CO.
