Chart B-13: FR Isolation Solenoid Coil Failure (DTC 43 (Flash out) / C0241, C0243 (Serial Communications))

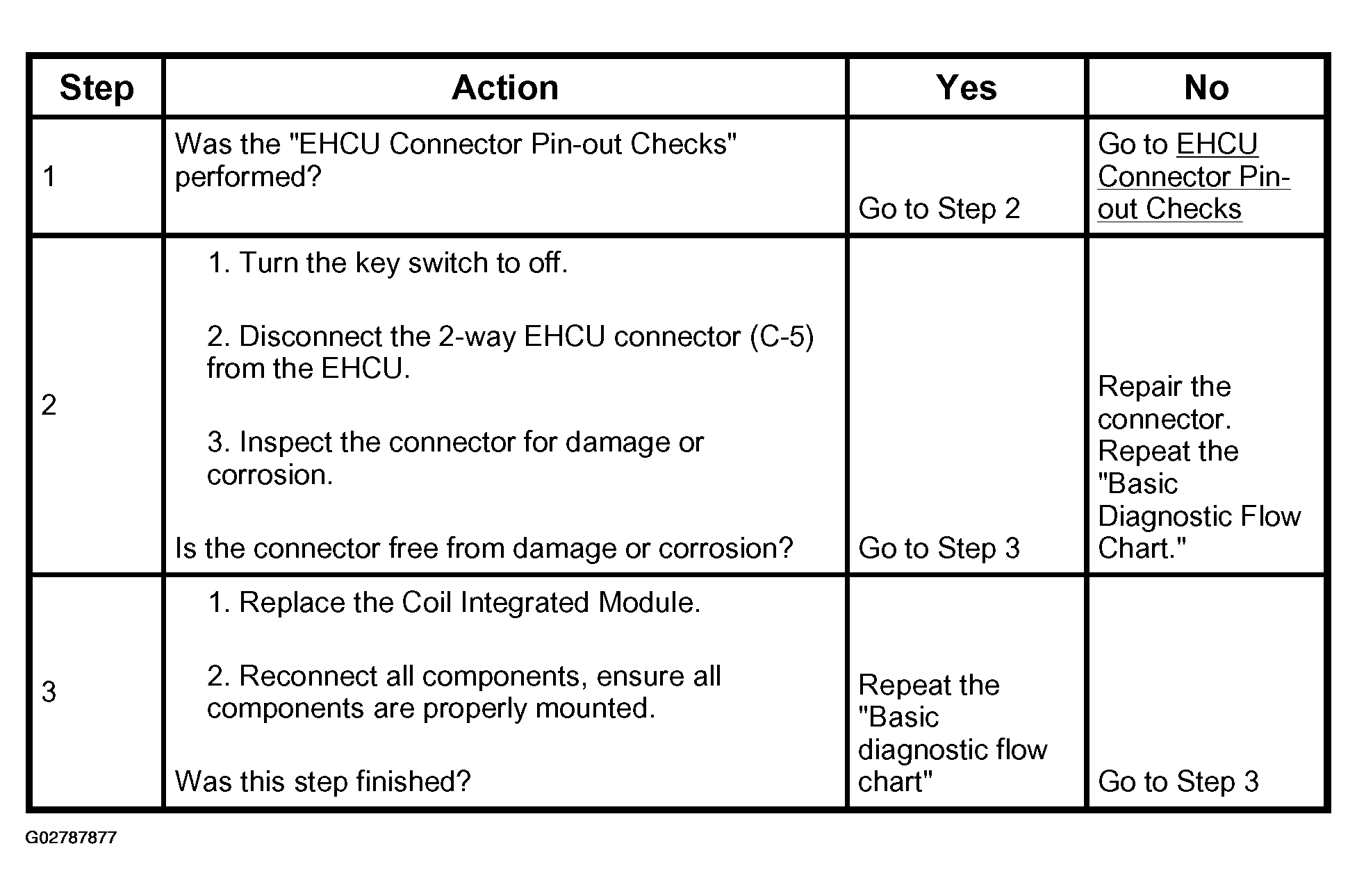

Fig 1: Diagnostic Chart - FR Isolation Solenoid Coil Failure (DTC 43 (Flash Out) / C0241, C0243 (Serial Communications))
G02787877Courtesy of ISUZU MOTOR CO.
