Chart B-12: FL Dump Solenoid Coil Failure (DTC 42 (Flash out) / C0246, C0248 (Serial Communications))

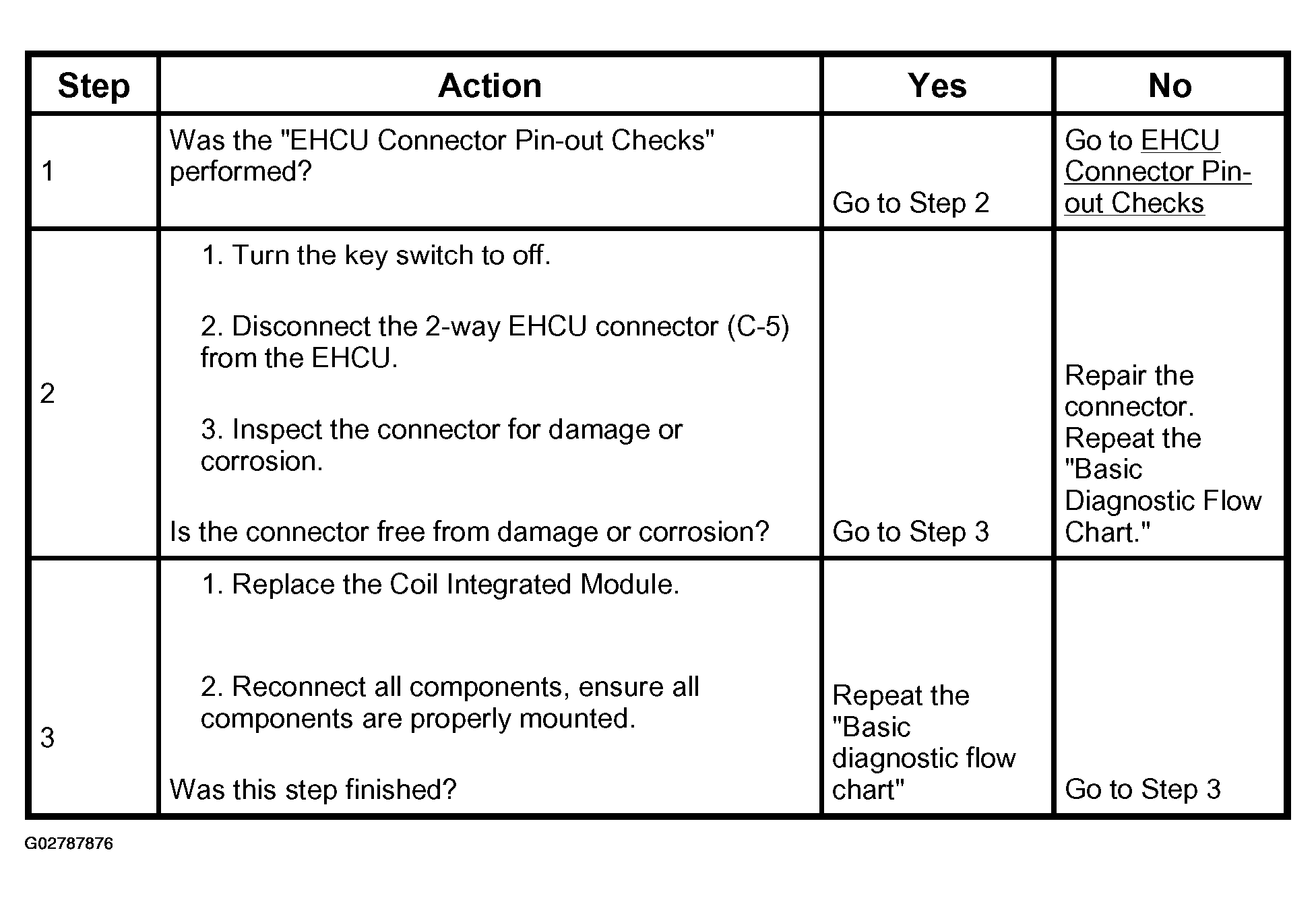

Fig 1: Diagnostic Chart - FL Dump Solenoid Coil Failure (DTC 42 (Flash Out) / C0246, C0248 (Serial Communications))
G02787876Courtesy of ISUZU MOTOR CO.
