Table for Meter/Gauge Connector Terminal Connections
Table for Meter/Gauge Connector Terminal Connections

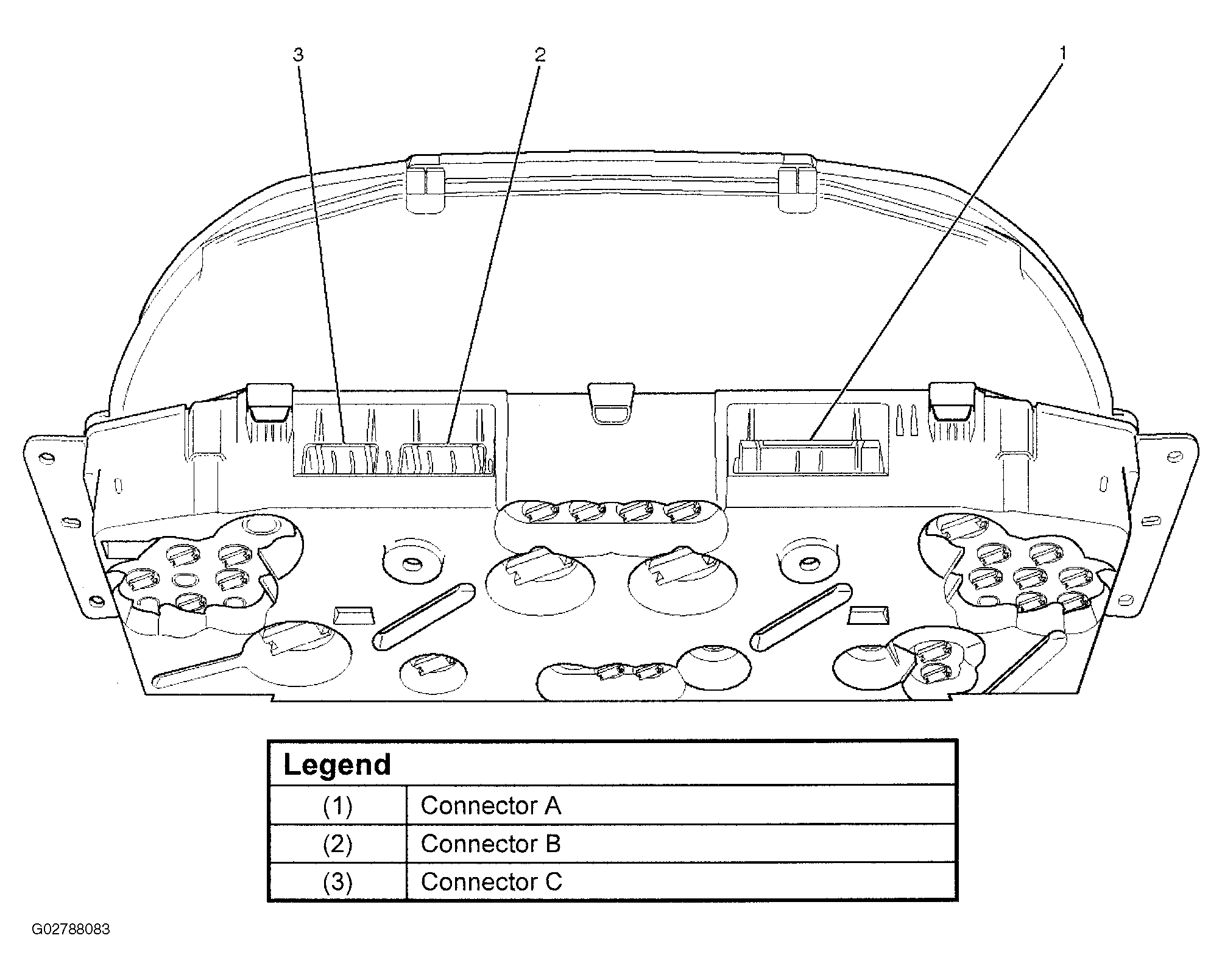

Fig 1: Identifying Meter/Gauge Connector Terminal Connections
Courtesy of ISUZU MOTOR CO.

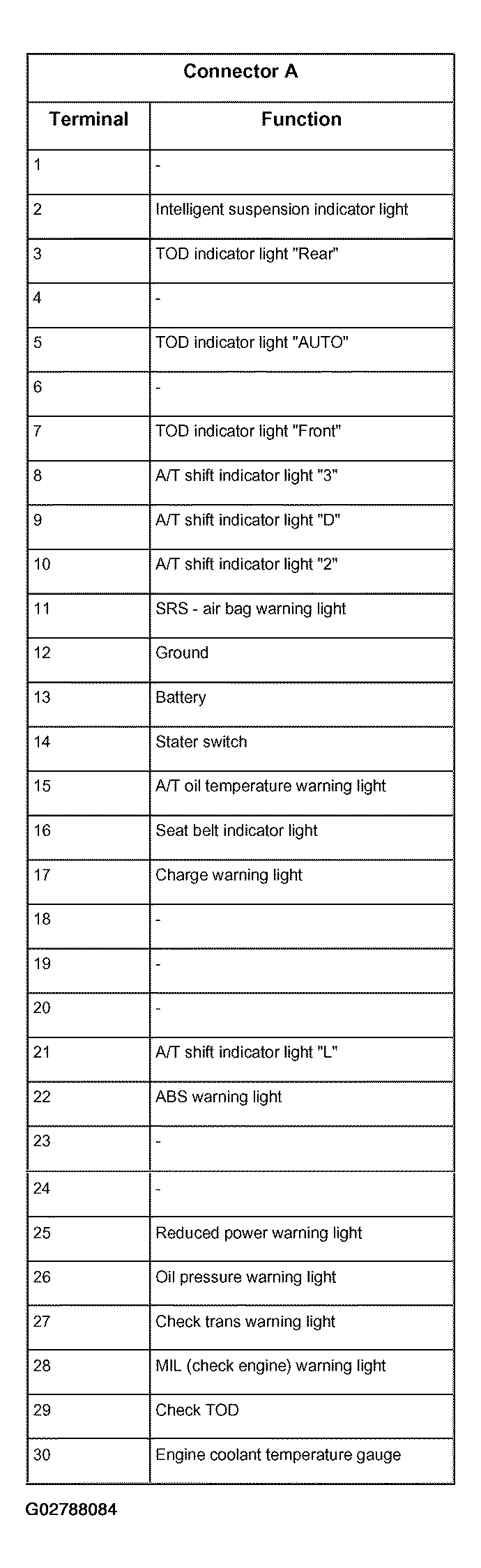

Fig 2: Table for Meter/Gauge Connector Terminals - Function (1 Of 3)
Courtesy of ISUZU MOTOR CO.

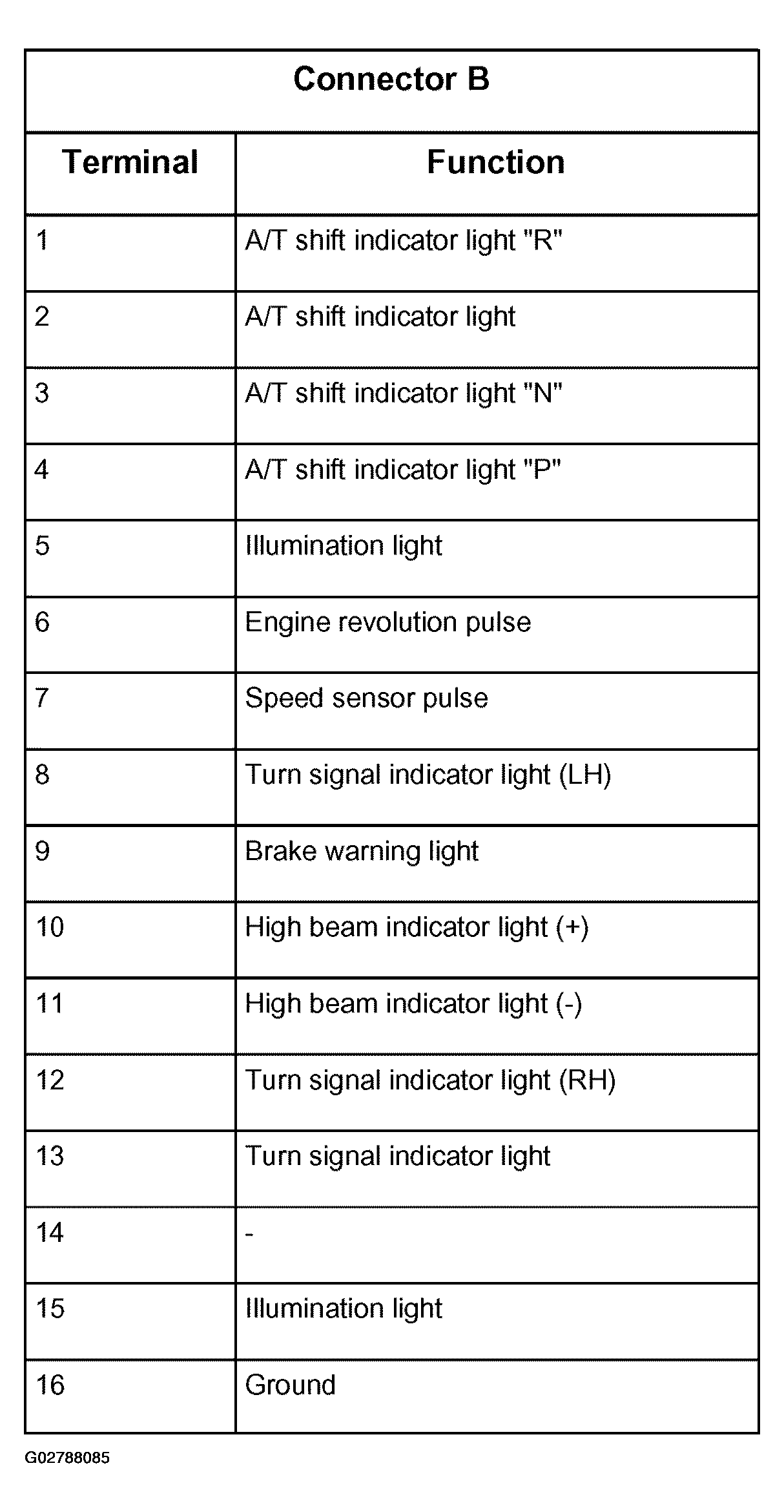

Fig 3: Table for Meter/Gauge Connector Terminals - Function (2 Of 3)
Courtesy of ISUZU MOTOR CO.

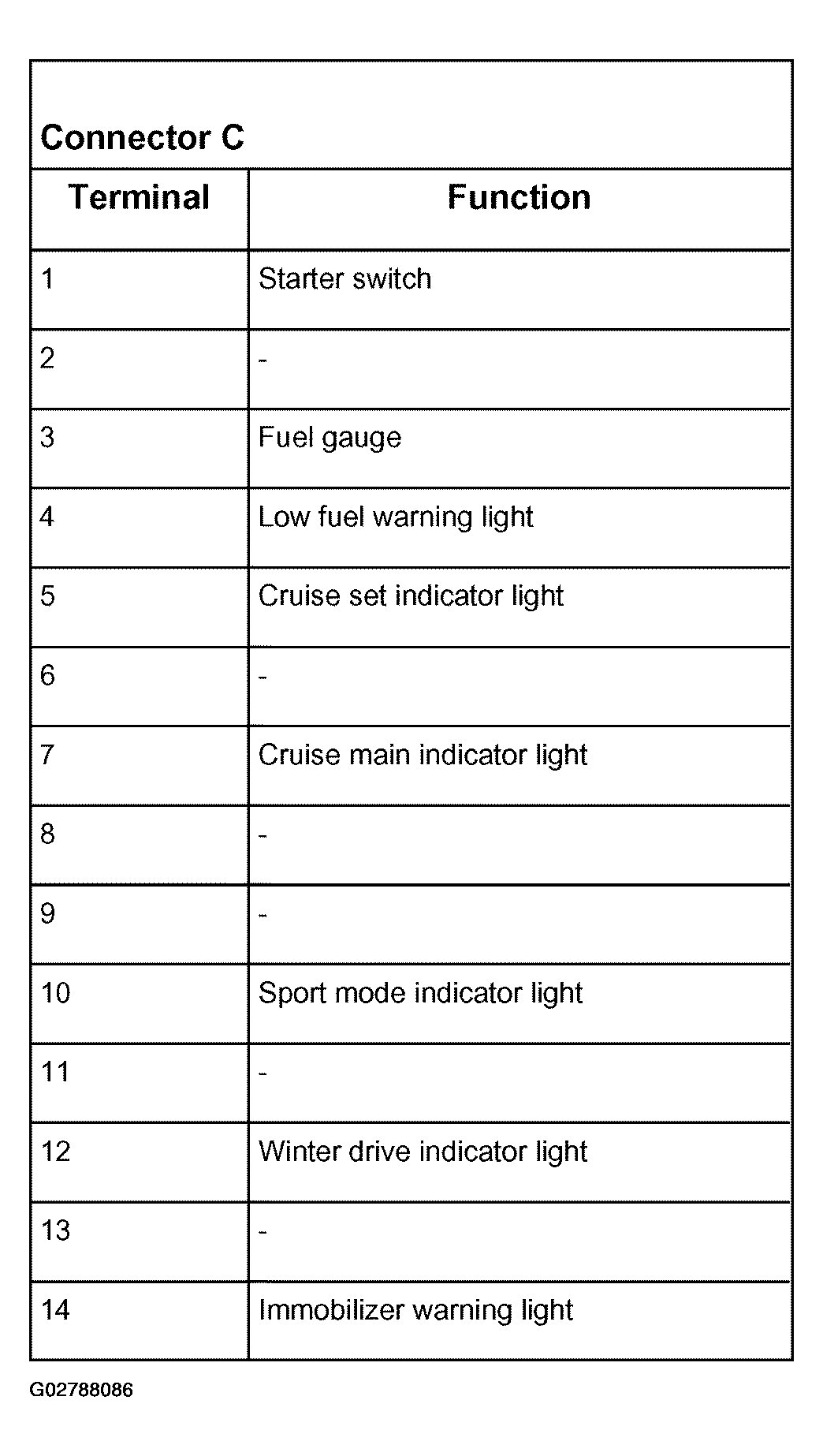

Fig 4: Table for Meter/Gauge Connector Terminals - Function (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
