Meter Assembly: Removal

Disconnect the battery ground cable.
Remove the Dash Side Trim Panel -LH.
Remove the lower cover assembly (2).
- Refer to INSTRUMENT PANEL ASSEMBLY .
Remove the meter cluster assembly (1).
- Refer to INSTRUMENT PANEL ASSEMBLY .

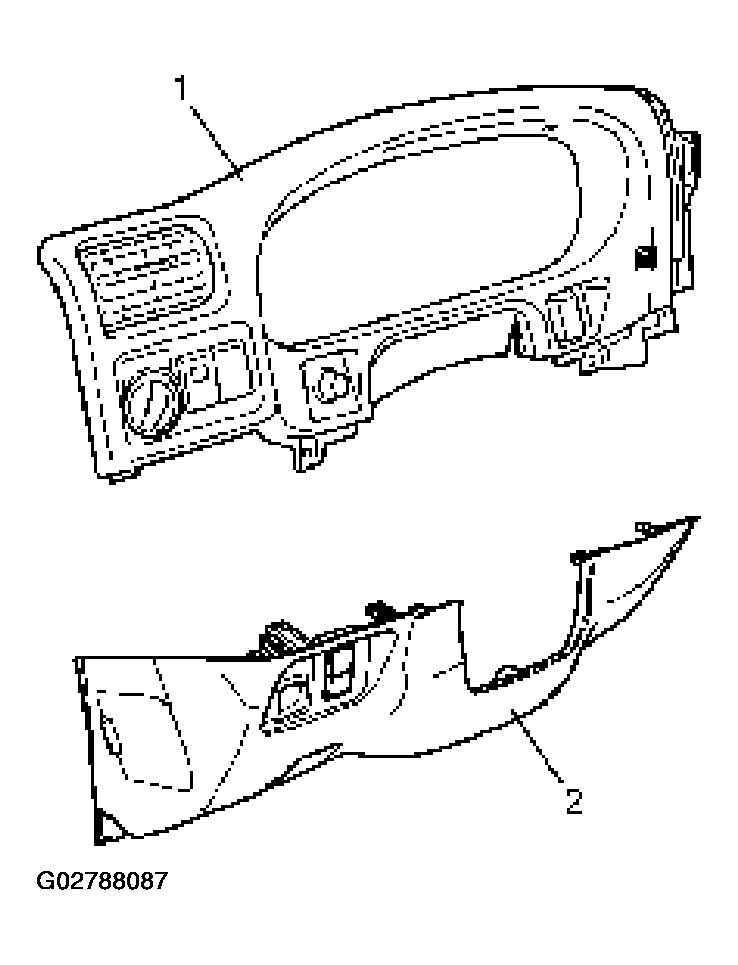

Fig 1: Removing Lower Cover Assembly And Meter Cluster Assembly
Courtesy of ISUZU MOTOR CO.
Remove the meter assembly (3).
- Remove four fixing screws.
- Disconnect the meter connectors.

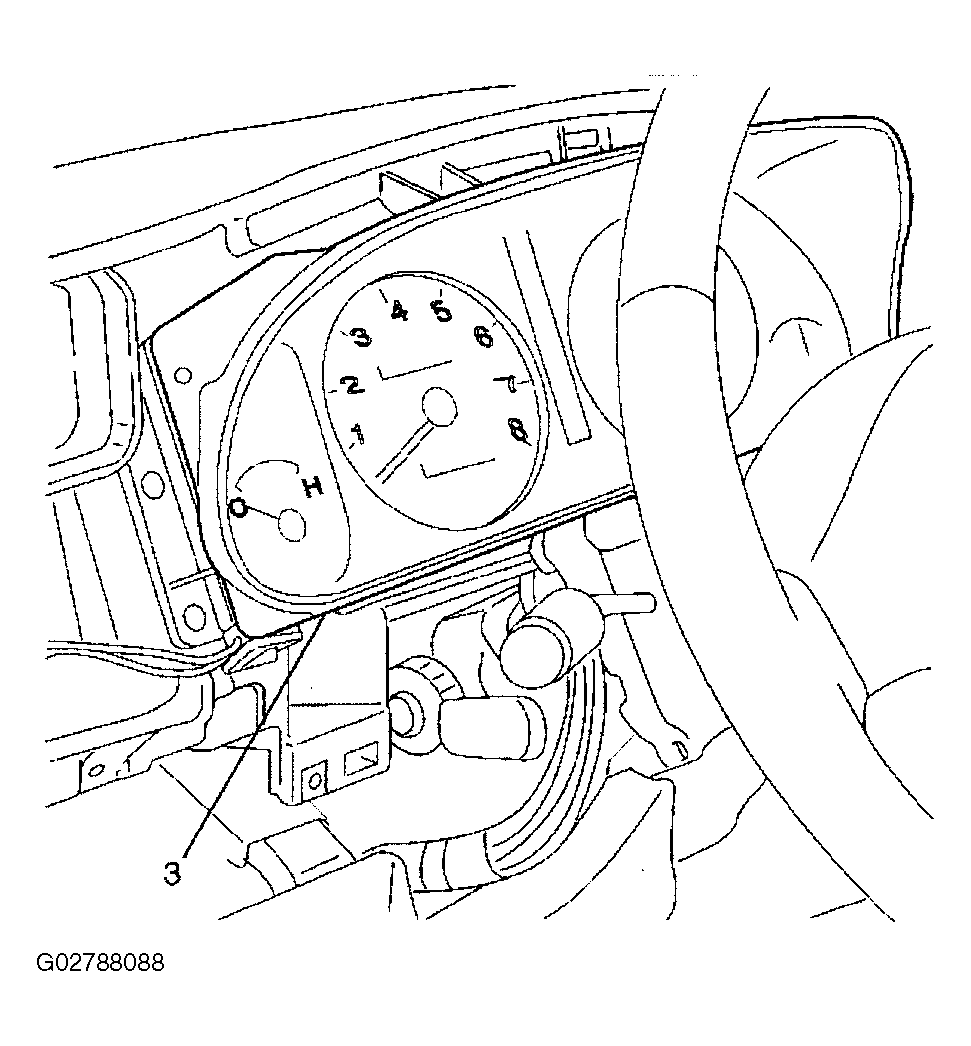

Fig 2: Removing Meter Assembly
Courtesy of ISUZU MOTOR CO.

CAUTION: The removed meter assembly should be placed upright or with its face side up.
