A/T Shift Indicator Light Bulb: Removal

  1. Disconnect the battery ground cable.

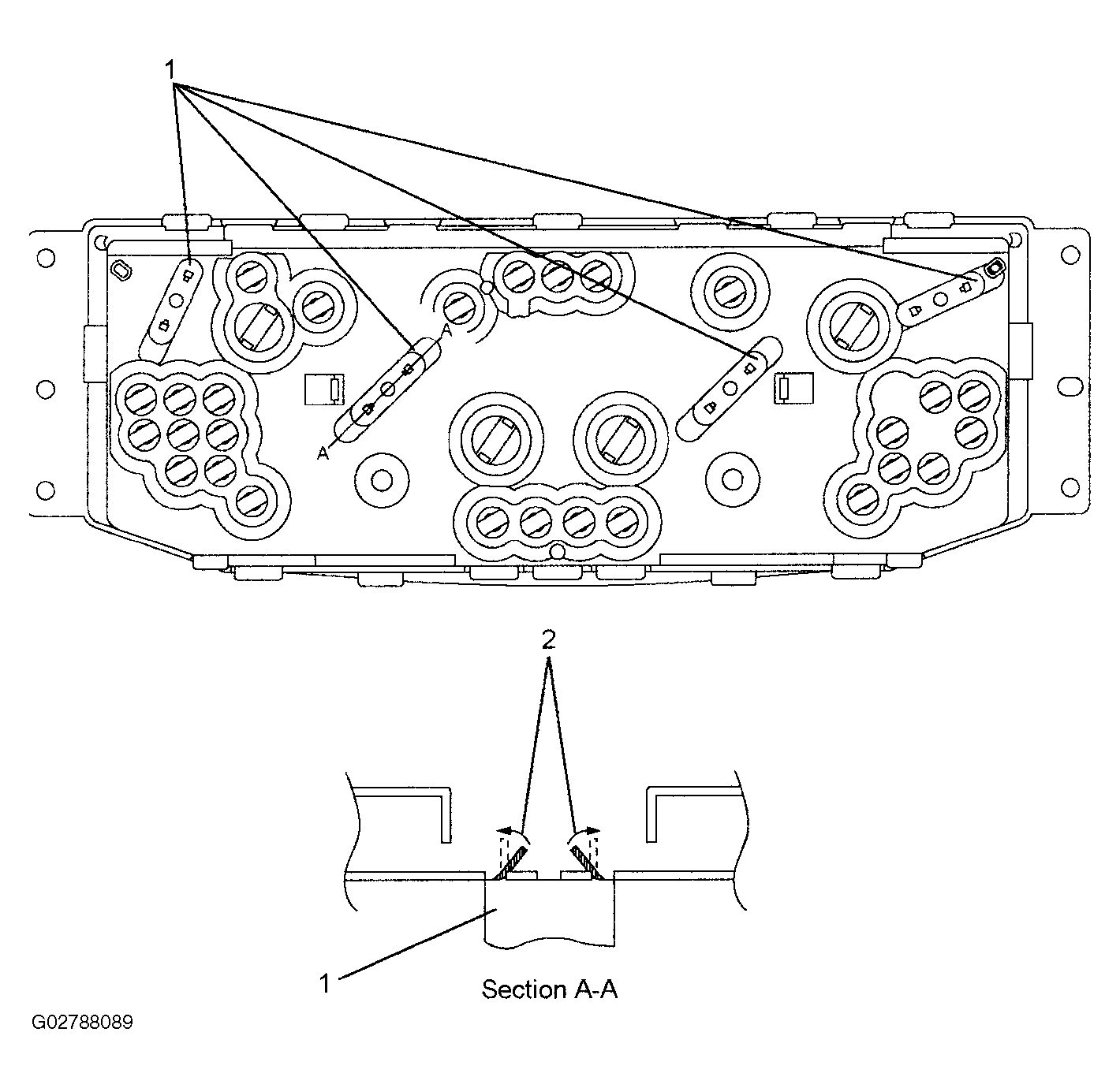

  2. Pry up the bent portions (2) of the metal cover (1).
    Fig 1: Prying Up Bent Portions Of Metal Cover
    G02788089Courtesy of ISUZU MOTOR CO.
  3. Remove the meter lens (3) from the meter visor (4).
  4. Remove the meter visor from the meter case (5).
    Fig 2: Removing Meter Lens From Meter Visor
    G02788090Courtesy of ISUZU MOTOR CO.
  5. Remove the meter assembly.
    • Push the metal cover (6) with the screw driver (7).
    Fig 3: Pushing Metal Cover With Screw Driver
    G02788091Courtesy of ISUZU MOTOR CO.
  6. Remove the meter rear cover.
  7. Remove the meter circuit board.
  8. Remove the A/T shift indicator bulb.
