Layout for Meters/Gauges, Warning Lights, Indicator Lights and Illumination Lights

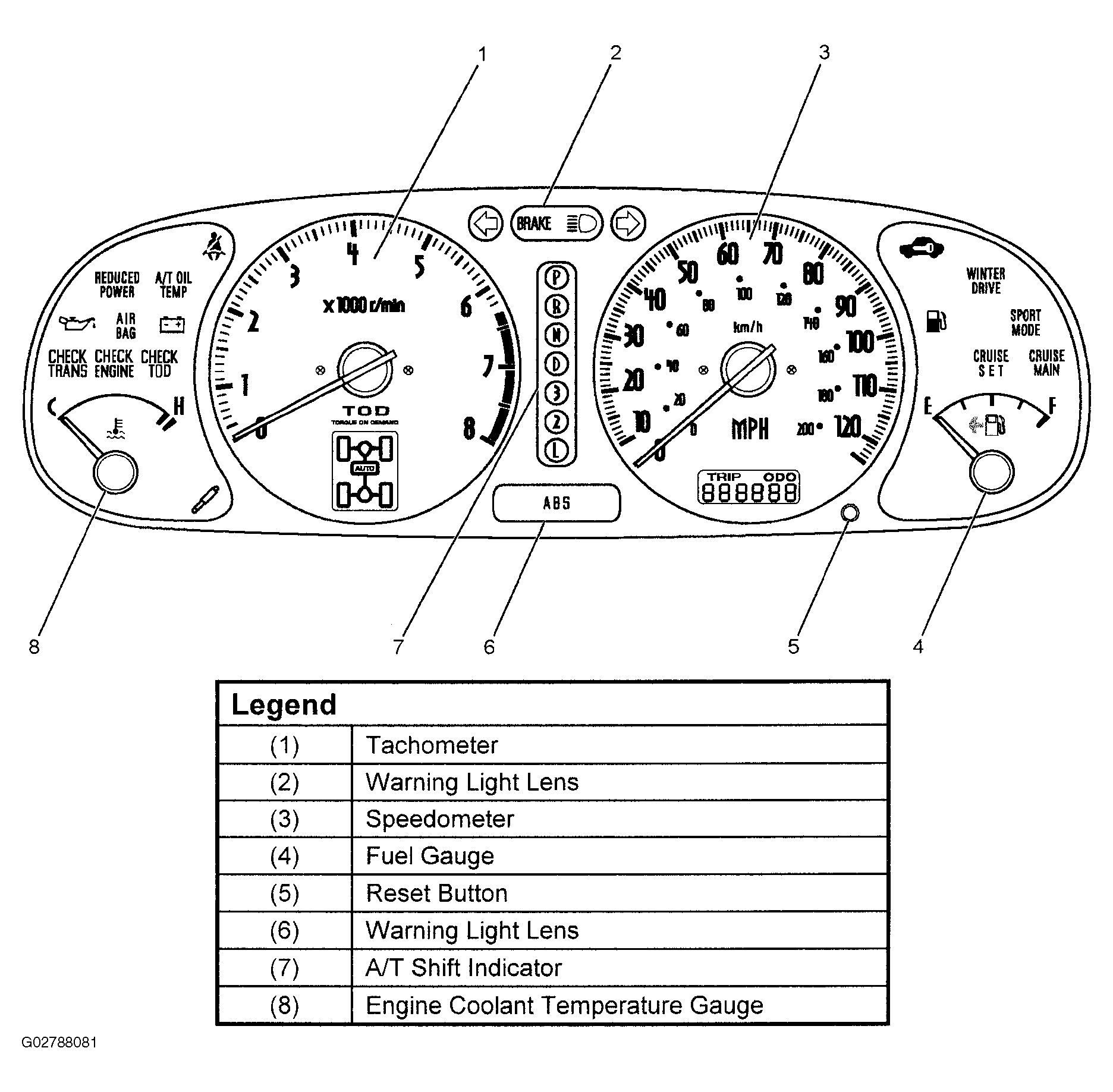

Fig 1: Identifying Layout For Meters/Gauges, Warning Lights, Indicator Lights And Illumination Lights - Front View

Courtesy of ISUZU MOTOR CO.

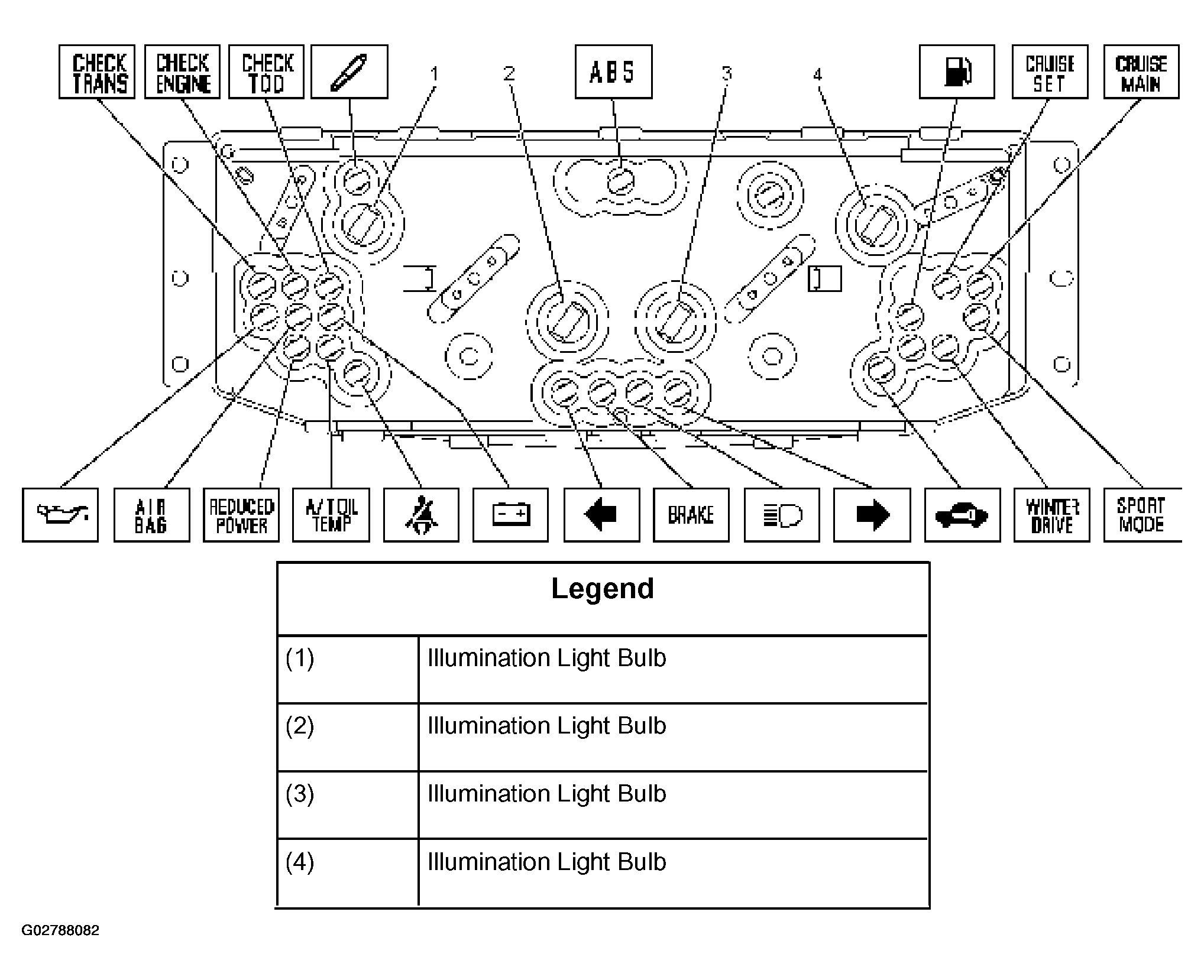

Fig 2: Identifying Layout For Meters/Gauges, Warning Lights, Indicator Lights And Illumination Lights - Rear View

Courtesy of ISUZU MOTOR CO.
