Vehicle Speed Sensor: Removal

  1. Disconnect the battery ground cable.
  2. Remove the vehicle speed sensor (1).
    • Disconnect the connector.
    • Rotate the sensor counterclockwise.

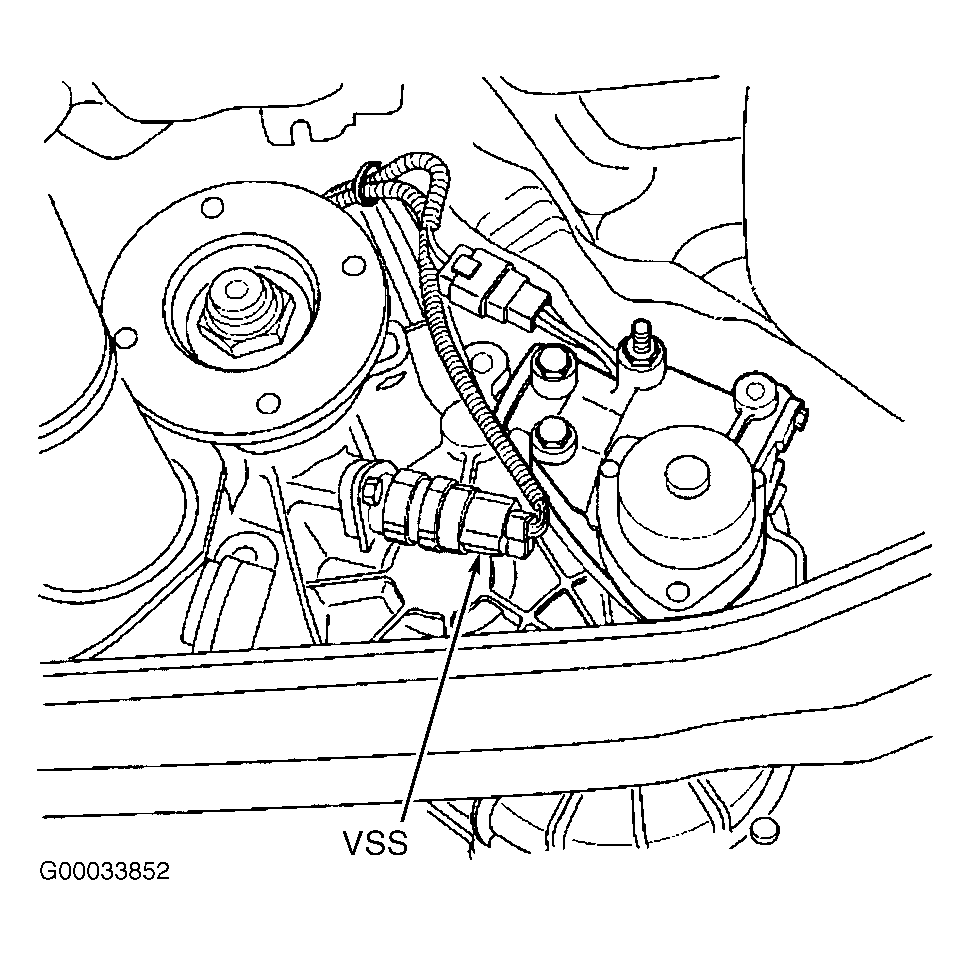

      Fig 1: Locating Vehicle Speed Sensor
      G00033852Courtesy of ISUZU MOTOR CO.
