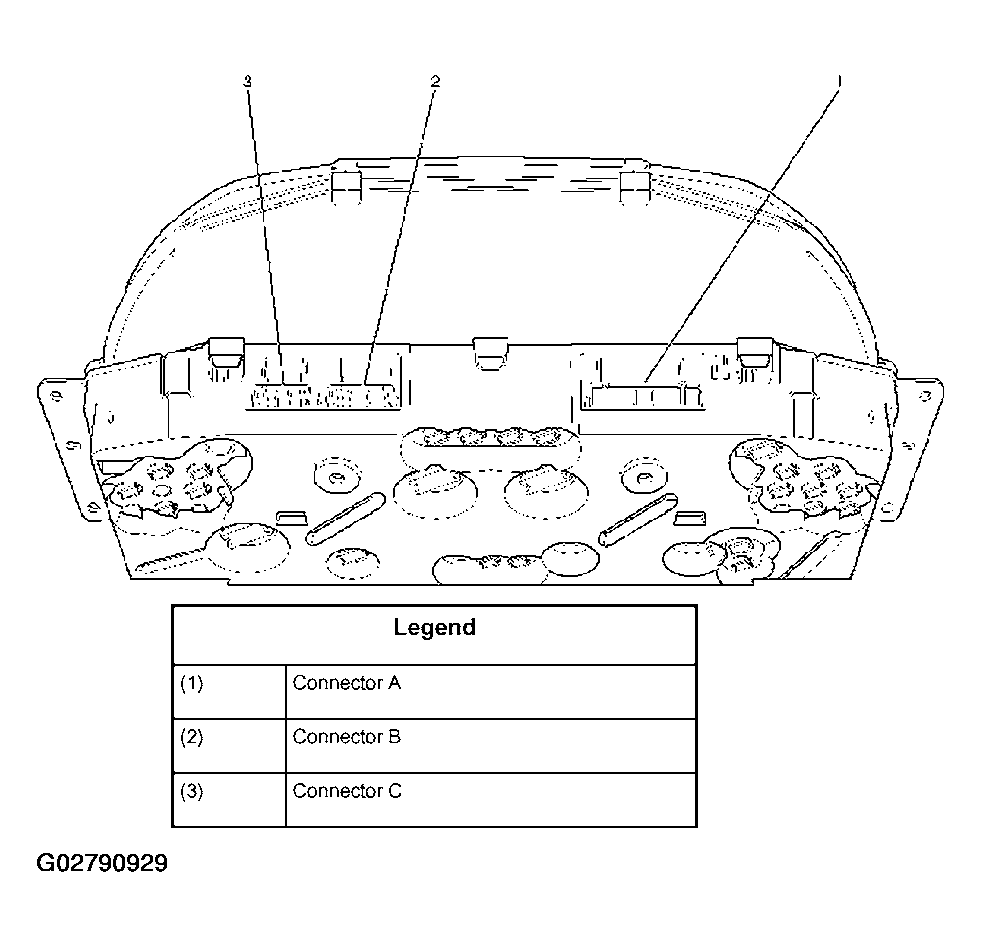

Table for Meter/Gauge Connector Terminal Connections
Connector A
| Terminal | Function |
|---|---|
| 1 | - |
| 2 | A/T Oil temperature warning light |
| 3 | - |
| 4 | - |
| 5 | - |
| 6 | - |
| 7 | - |
| 8 | A/T shift indicator light "3" |
| 9 | A/T shift indicator light "D" |
| 10 | A/T shift indicator light "2" |
| 11 | SRS - air bag warning light |
| 12 | Ground |
| 13 | Battery |
| 14 | Starter switch |
| 15 | Check engine warning light |
| 16 | Seat belt indicator light |
| 17 | Charge warning light |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | A/T shift indicator light "L" |
| 22 | 4L indicator light |
| 23 | 4WD indicator light |
| 24 | - |
| 25 | Reduced power warning light |
| 26 | Check 4WD warning light |
| 27 | Check trans warning light |
| 28 | Engine Oil pressure warning light |
| 29 | ABS warning light |
| 30 | Engine coolant temperature gauge |
Connector B
| Terminal | Function |
|---|---|
| 1 | A/T shift indicator light "R" |
| 2 | A/T shift indicator light |
| 3 | A/T shift indicator light "N" |
| 4 | A/T shift indicator light "P" |
| 5 | Illumination light |
| 6 | Engine revolution pulse |
| 7 | Speed sensor pulse |
| 8 | Turn signal indicator light (LH) |
| 9 | Brake warning light |
| 10 | High beam indicator light (+) |
| 11 | High beam indicator light (-) |
| 12 | Turn signal indicator light (RH) |
| 13 | Turn signal indicator light |
| 14 | - |
| 15 | Illumination light |
| 16 | Ground |
Connector C
| Terminal | Function |
|---|---|
| 1 | Starter switch |
| 2 | Upshift indicator light |
| 3 | Fuel gauge |
| 4 | Reduced power warning light |
| 5 | Low fuel warning light |
| 6 | Upshift indicator light |
| 7 | Winter drive indicator light |
| 8 | - |
| 9 | - |
| 10 | Power drive indicator light |
| 11 | Cruise set indicator light |
| 12 | Intelligent suspension indicator light |
| 13 | Sport mode indicator light |
| 14 | Immobilizer warning light |
