Meter Assembly: Removal
- Disconnect the battery ground cable.
- Remove the Dash Side Trim Panel -LH.

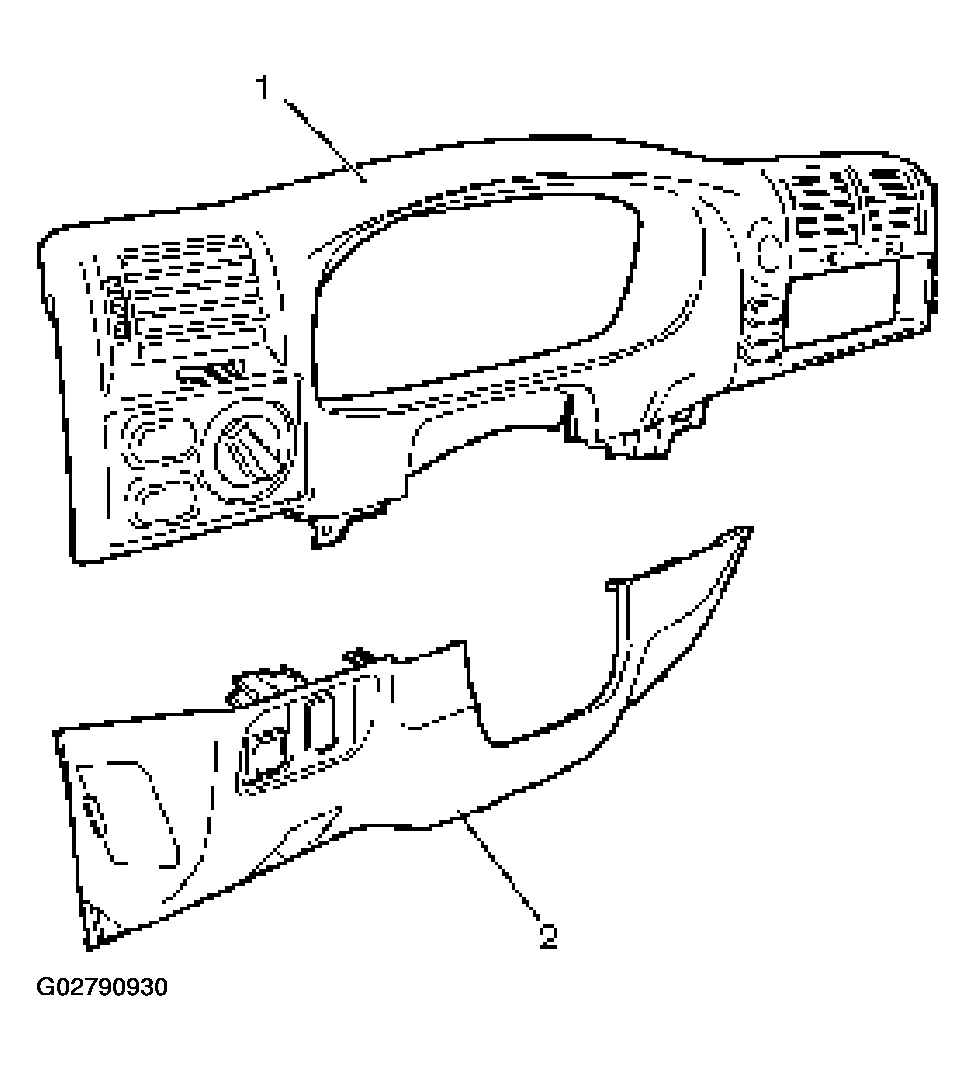

- Remove the Lower Cover Assembly (2).
- Refer to the INSTRUMENT PANEL ASSEMBLY .
- Remove the Meter Cluster Assembly (1).
- Refer to the INSTRUMENT PANEL ASSEMBLY .

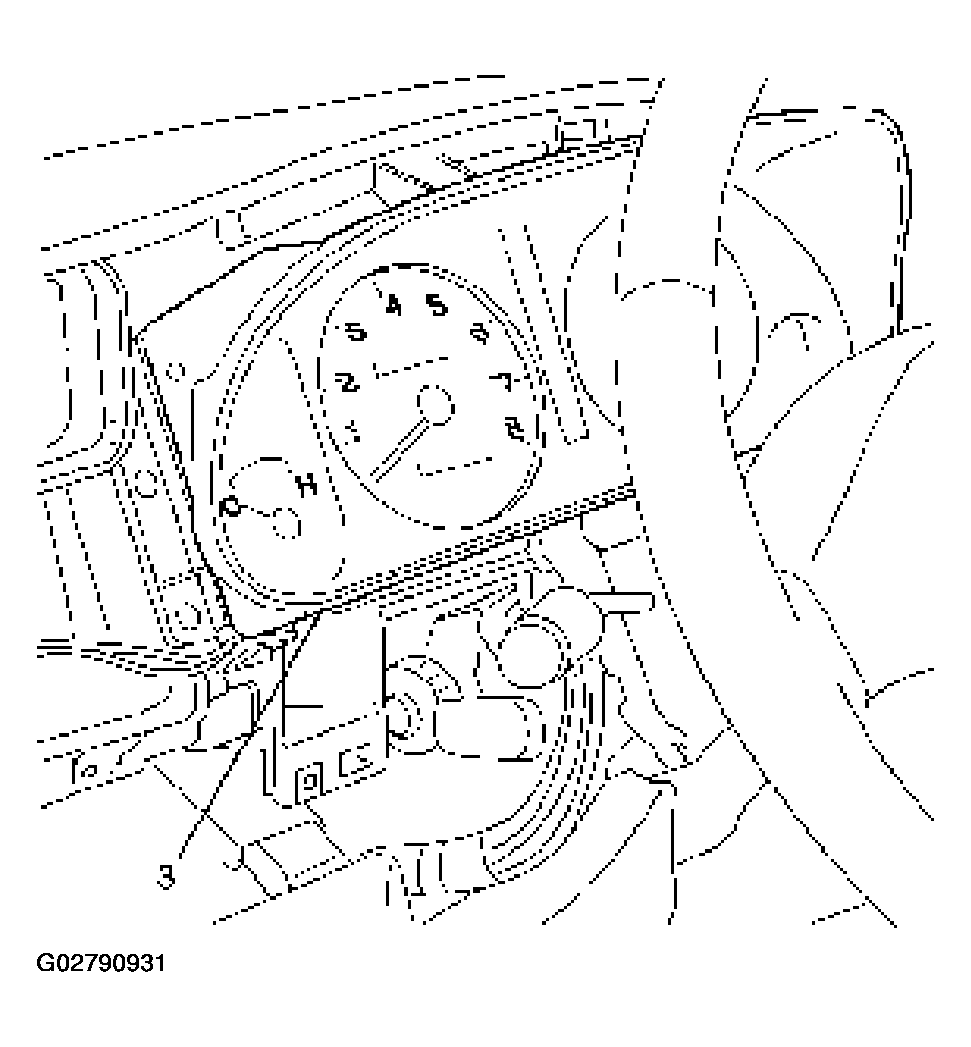

- Remove the meter assembly (3).
- Remove the four fixing screws.
- Disconnect the meter connector.
CAUTION:
The removed meter assembly should be placed upright or with its face side up.
