A/T Shift Indicator Light Bulb: Removal

  1. Disconnect the battery ground cable.
  2. Pry up the bended portions (2) of the metal cover (1).

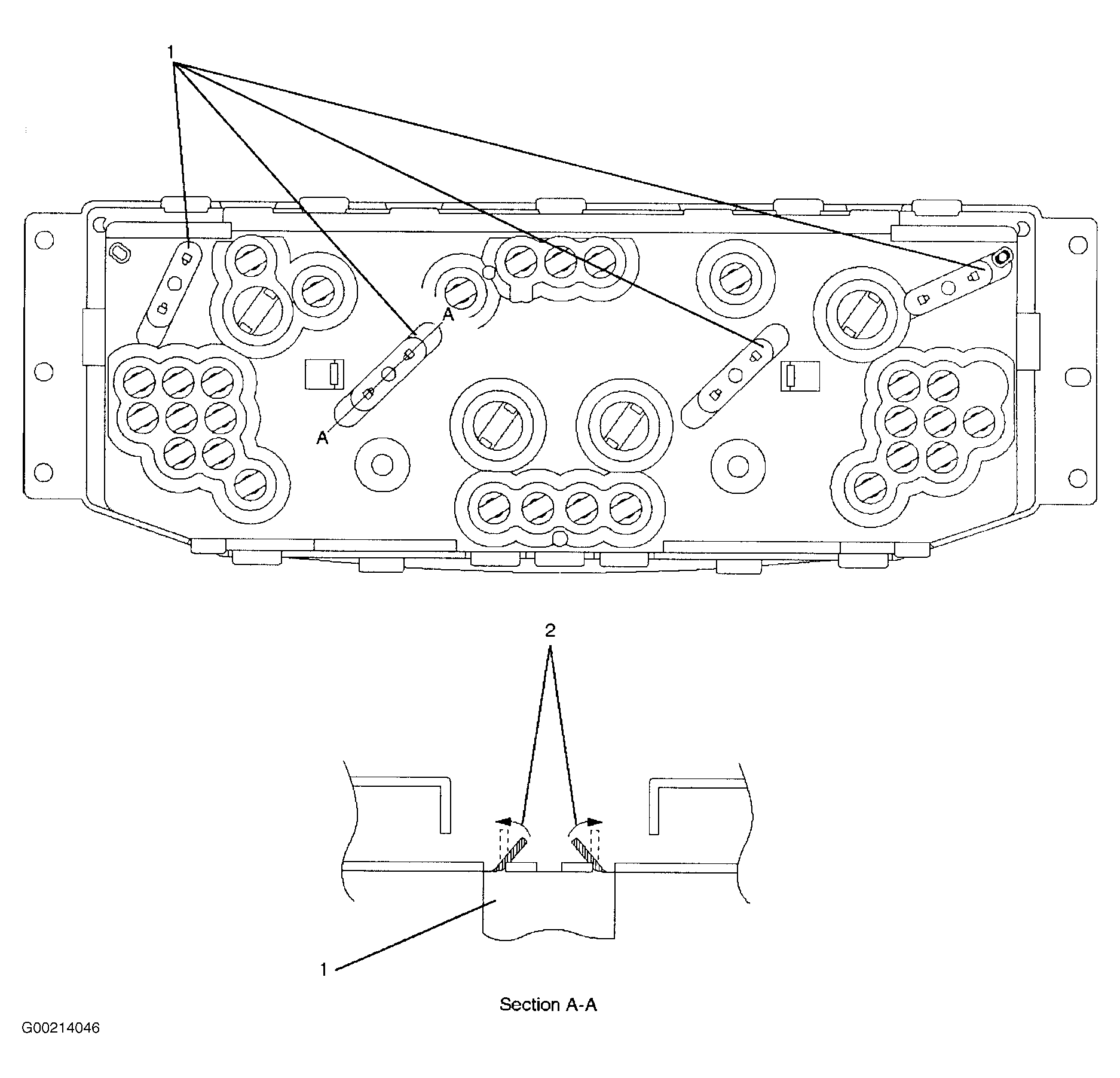

    Fig 1: Prying Up Bended Portions Of Metal Cover
    G00214046Courtesy of ISUZU MOTOR CO.
  3. Remove the meter lens (3) from the meter visor (4).
  4. Remove the meter visor from the meter case (5).

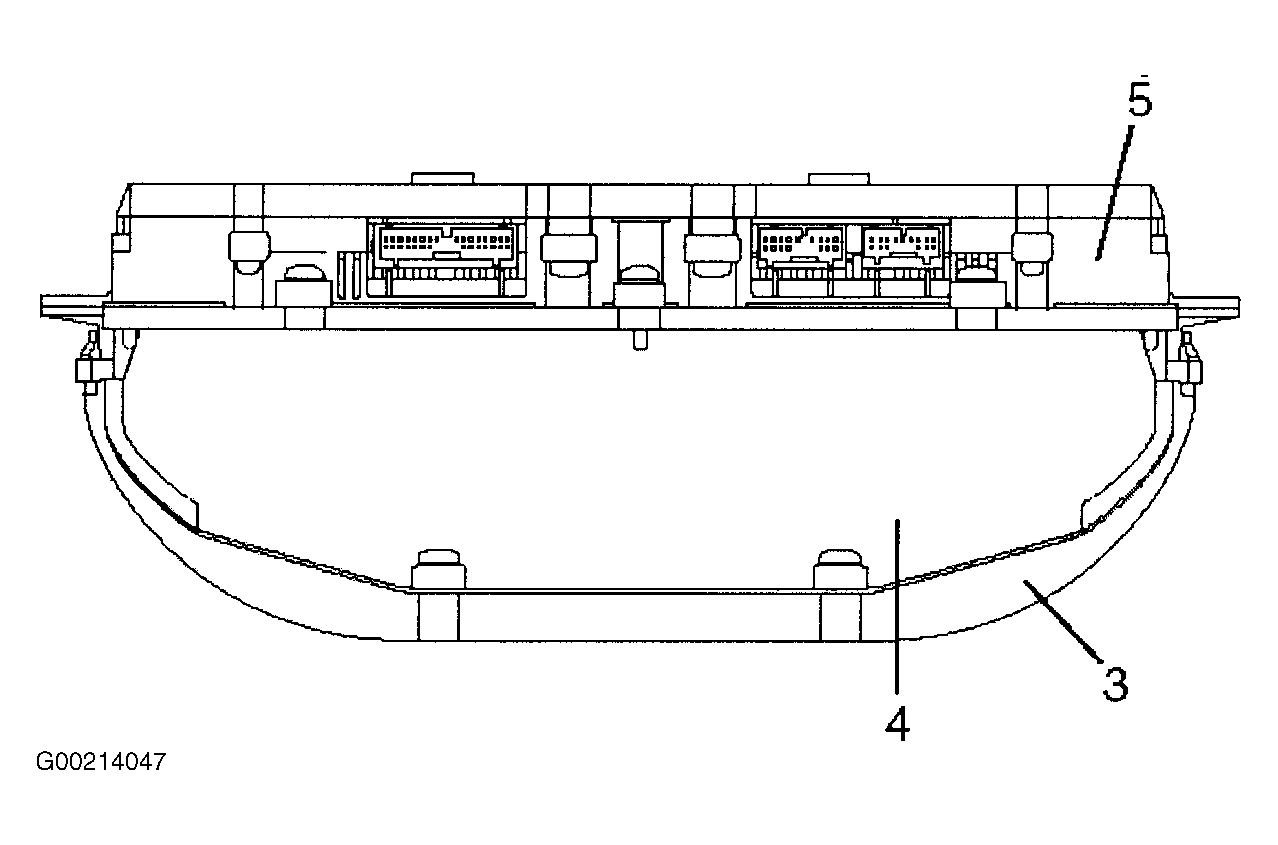

    Fig 2: Removing Meter Visor From Meter Case
    G00214047Courtesy of ISUZU MOTOR CO.
  5. Remove the meter assembly.
    • Push the metal cover (6) with the screw driver (7).
      • Fig 3: Pushing Metal Cover
      G00214048Courtesy of ISUZU MOTOR CO.
  6. Remove the meter rear cover.
  7. Remove the meter circuit board.
  8. Remove the A/T shift indicator bulb.
