Schematic Diagrams

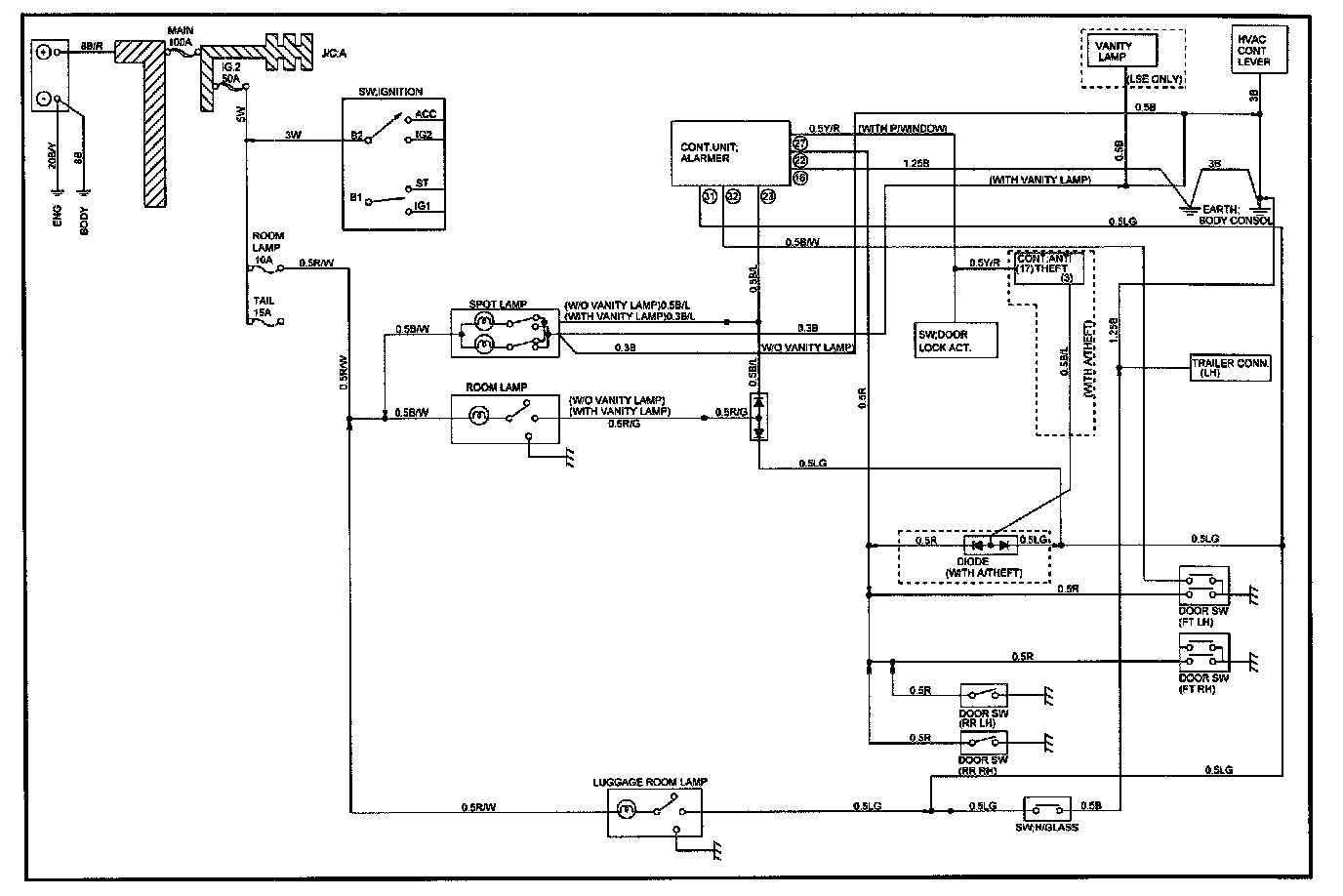

Room, Luggage, Courtesy, Spot, Warning Buzzer (LWB):



Room, Luggage, Courtesy, Spot, Warning Buzzer (SWB):
