150-0 to 150-2

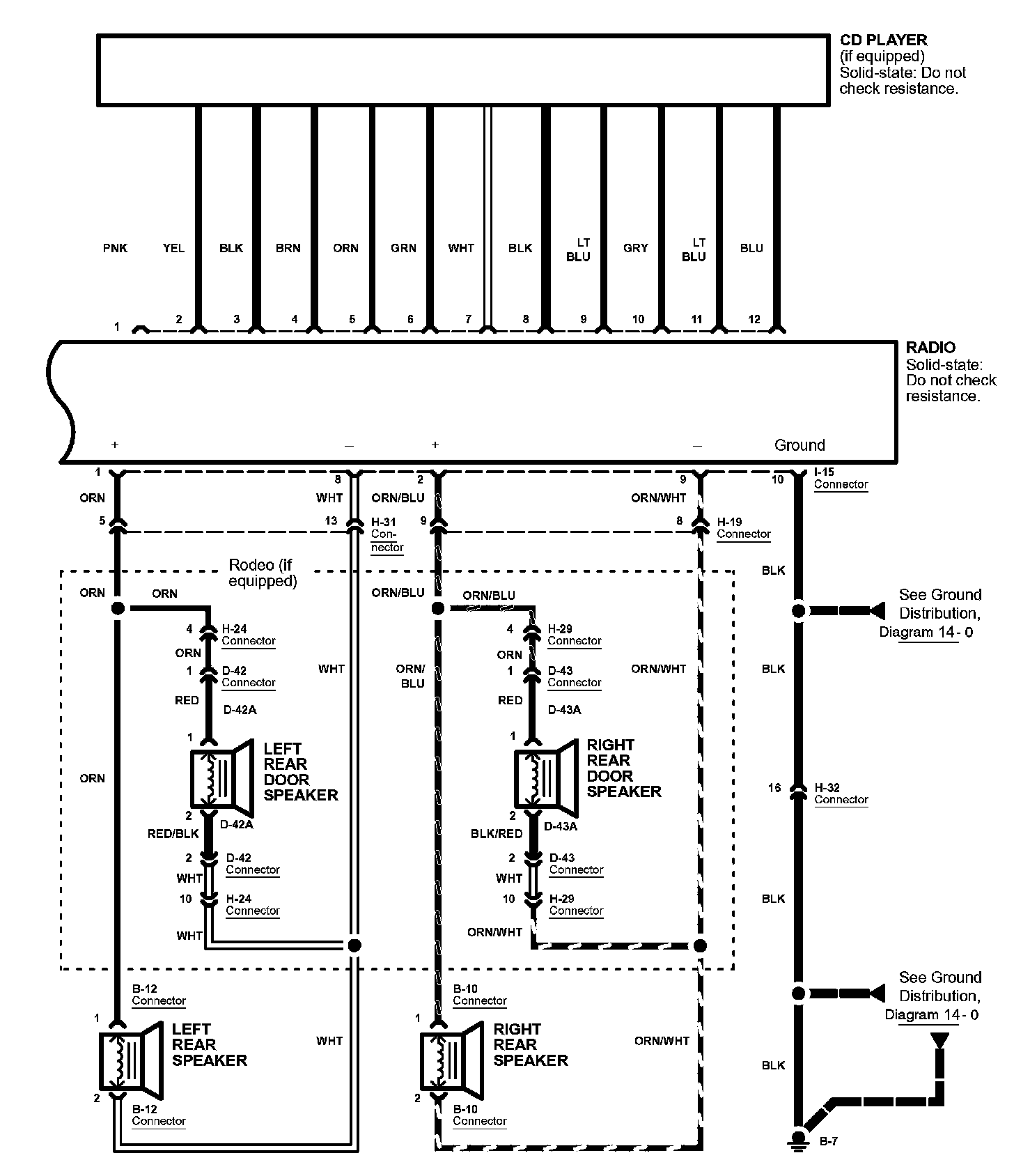

Diagram 150-0 (Without Amplifier):

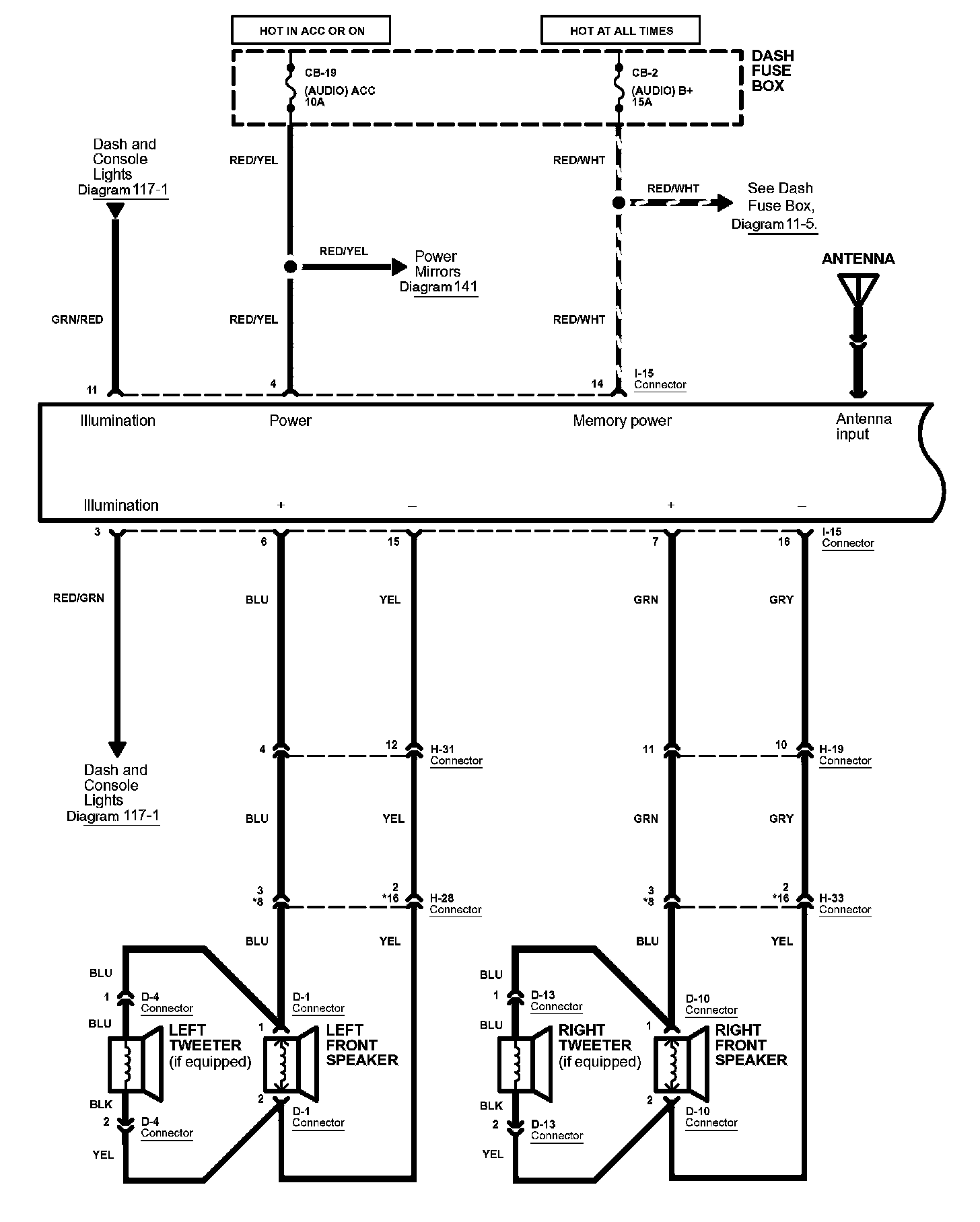

Diagram 150-1 (Without Amplifier):

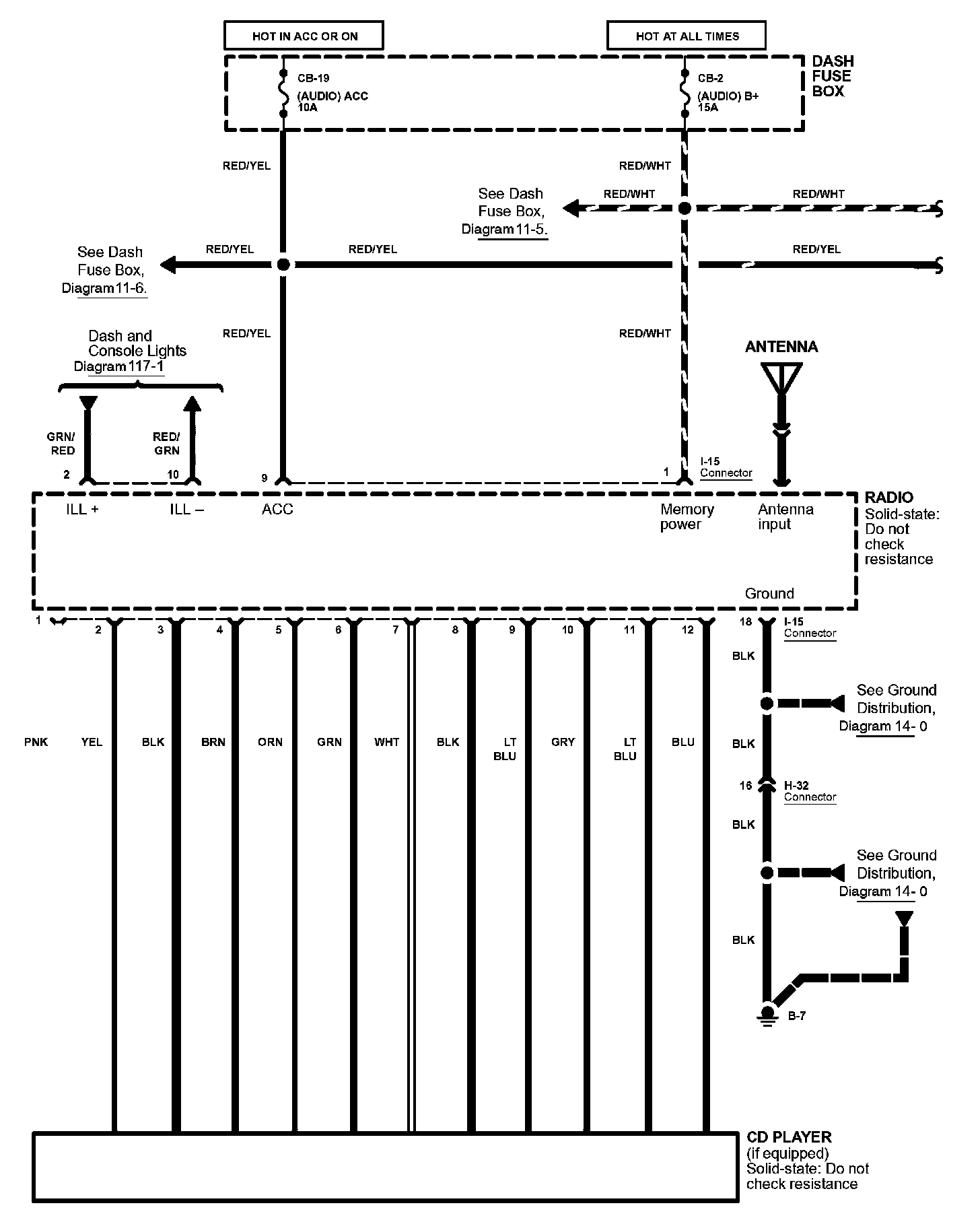

Diagram 150-2 (With Amplifier):
