Diagram Set 133
>>
133-0 to 133-4
133-0 to 133-4

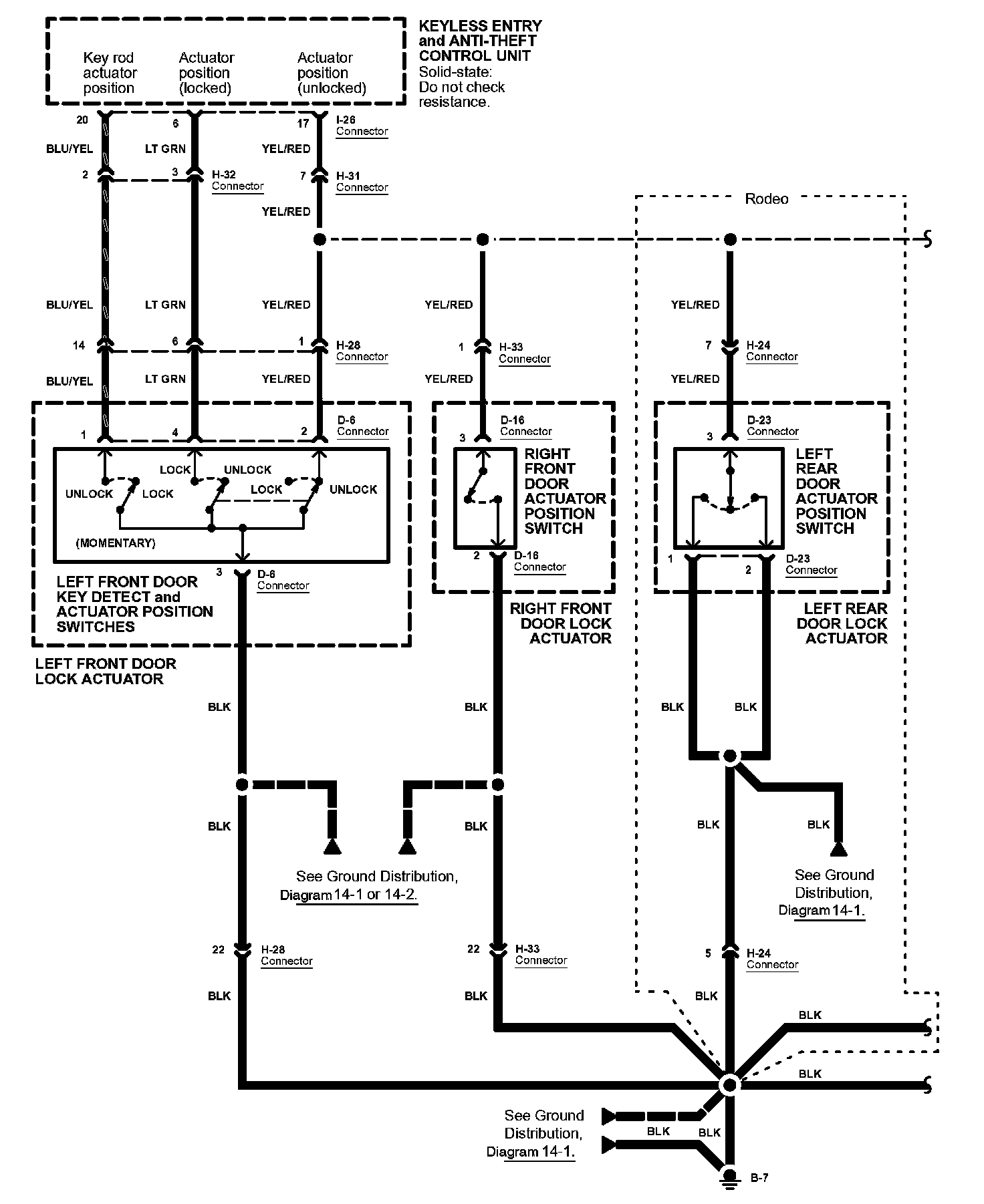

Diagram 133-0:

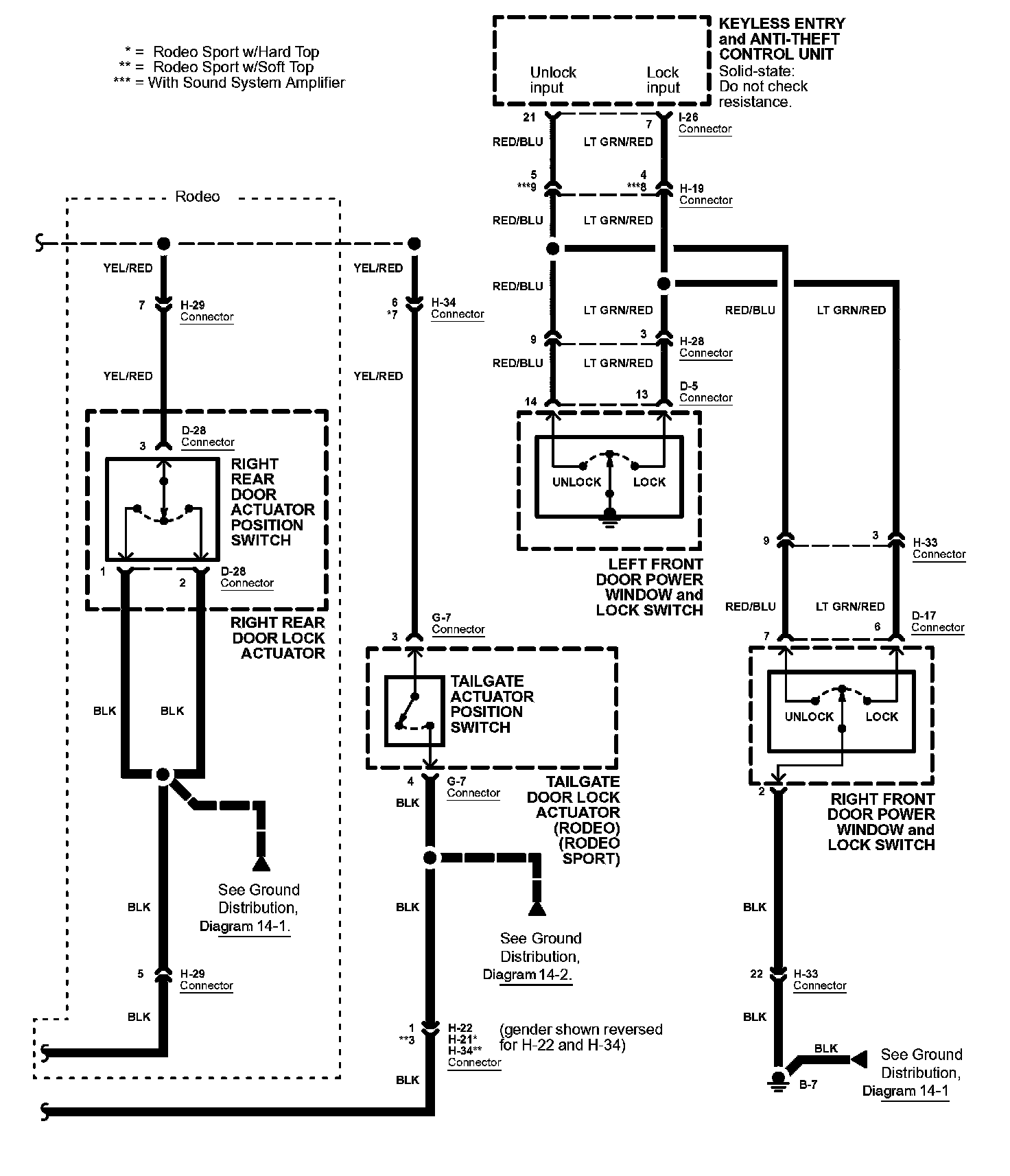

Diagram 133-1:

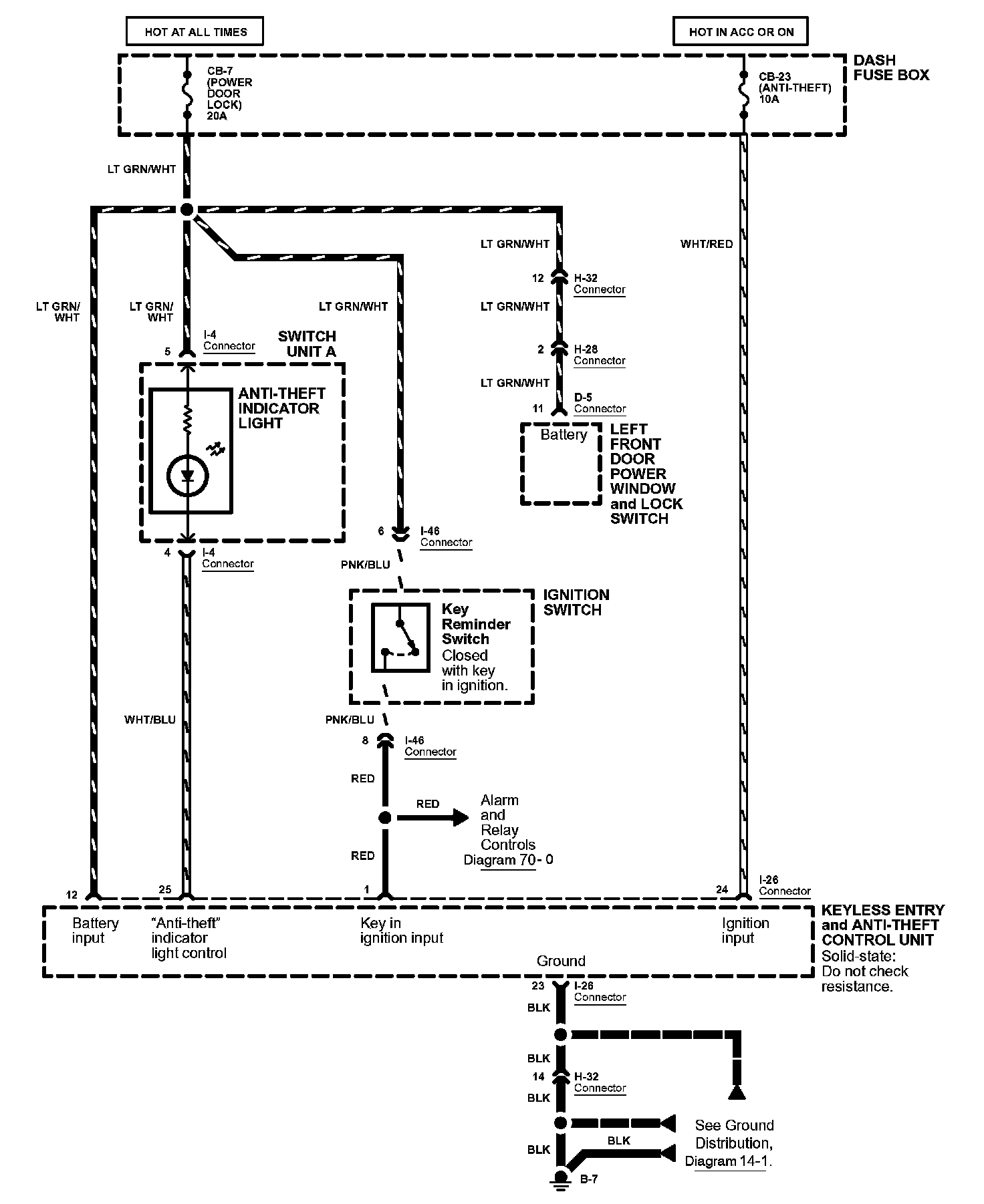

Diagram 133-2:

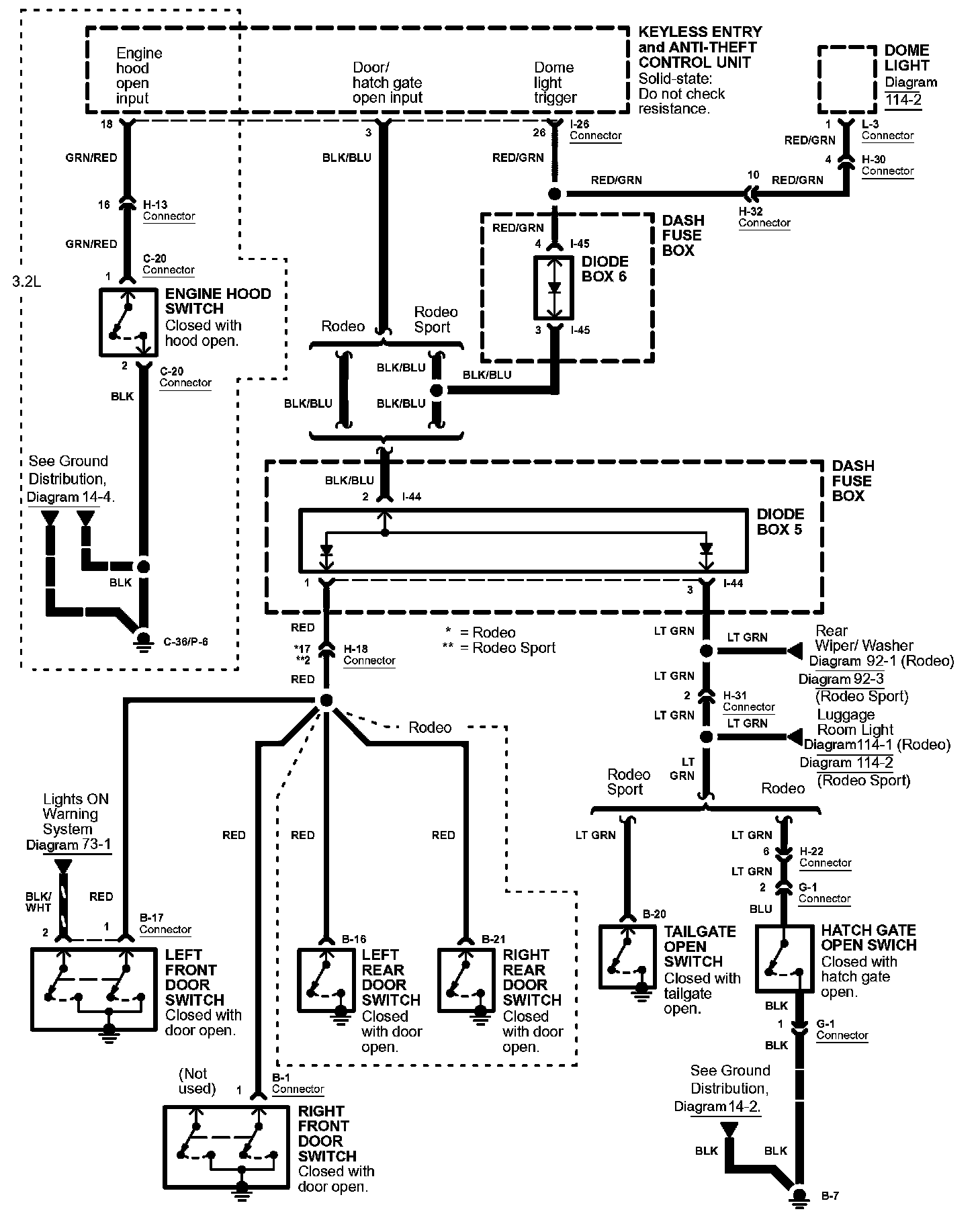

Diagram 133-3:

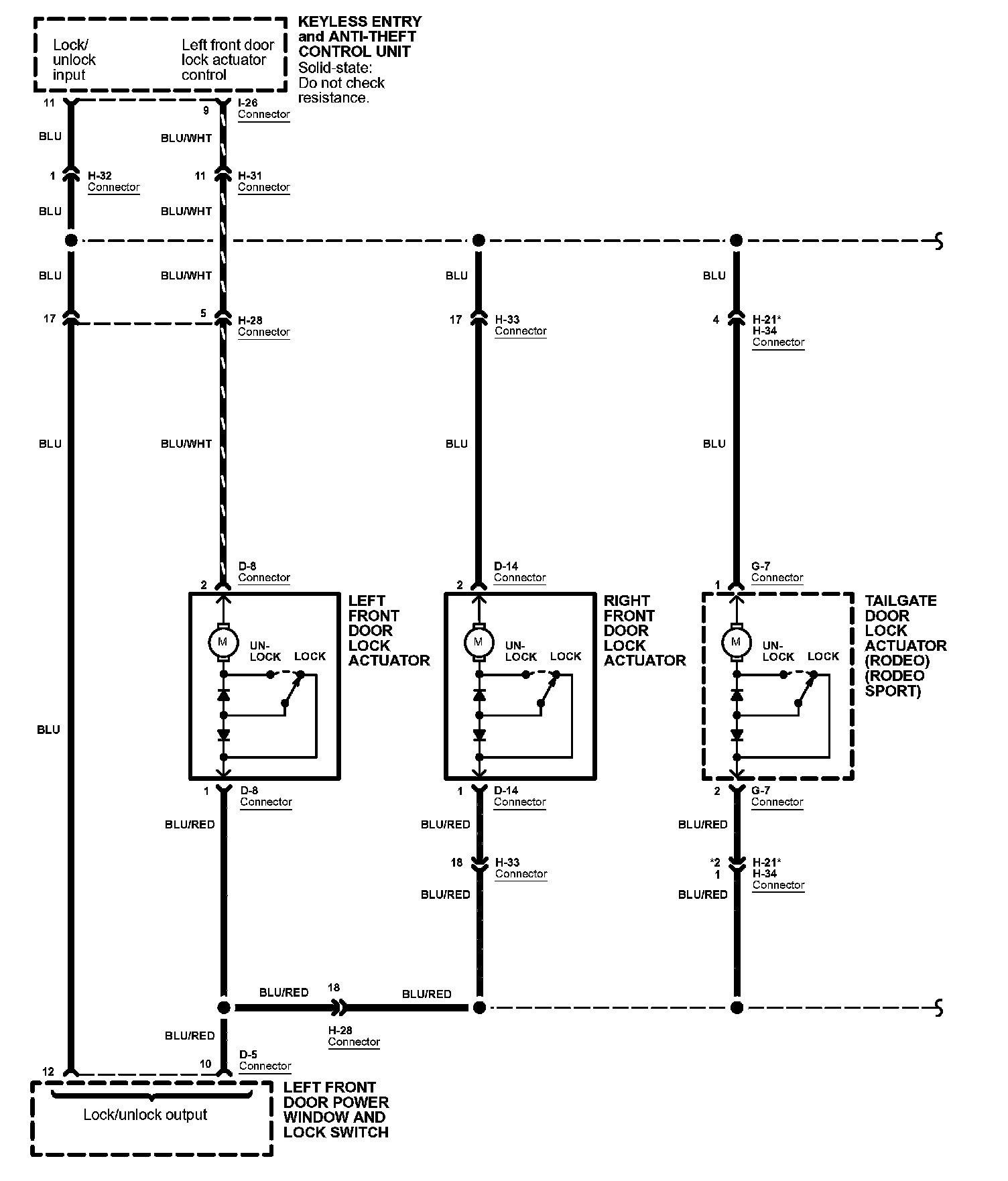

Diagram 133-4:
