Home >> Isuzu >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Dimmer Switch >> Diagrams

Dimmer Switch: Diagrams

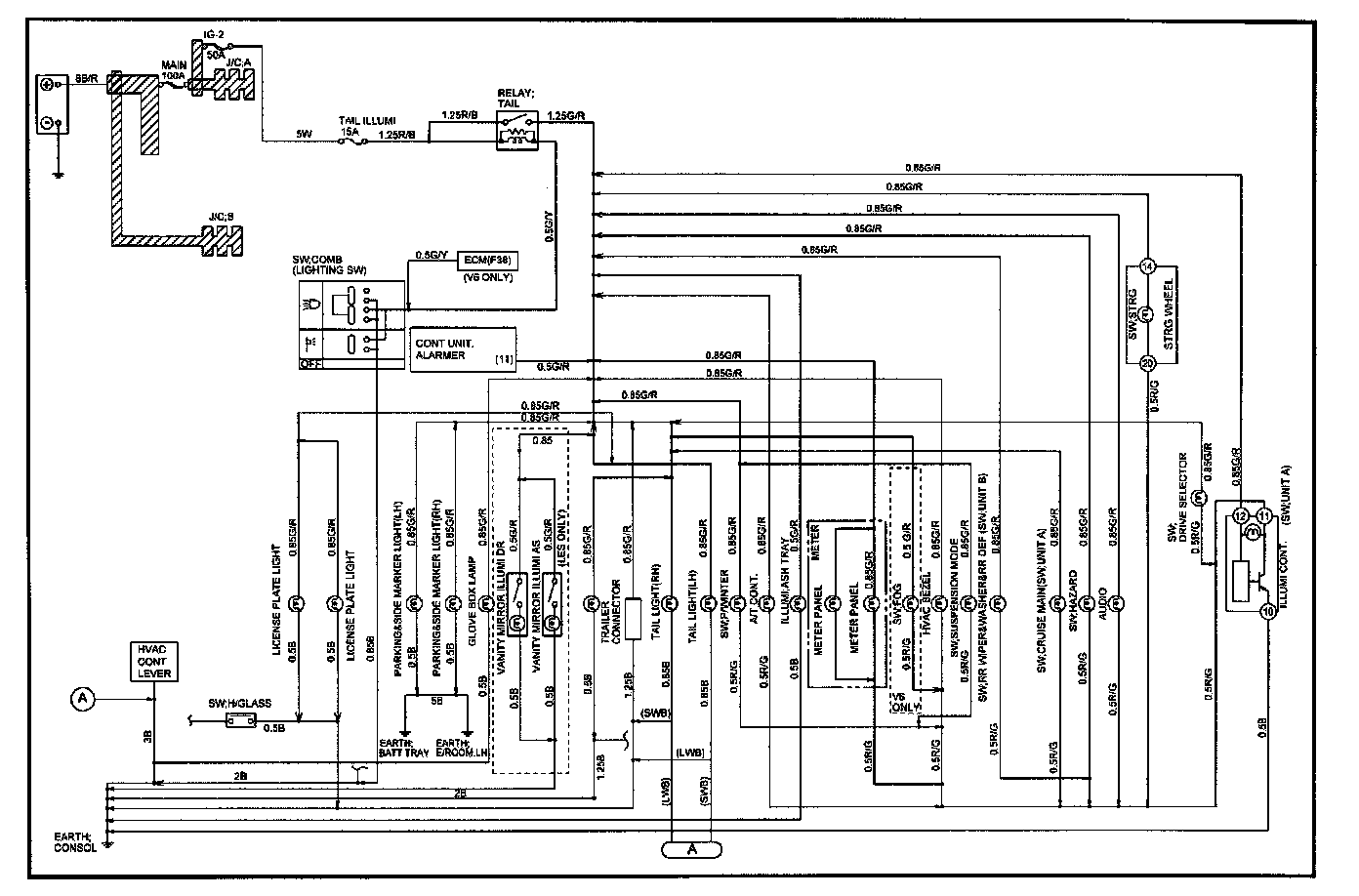

Illumination Light:
