Vehicle Speed Sensor: Removal

  1. Disconnect the battery ground cable.
  2. Remove the vehicle speed sensor(1).
    • Disconnect the connector.
    • Rotate the sensor counterclockwise.

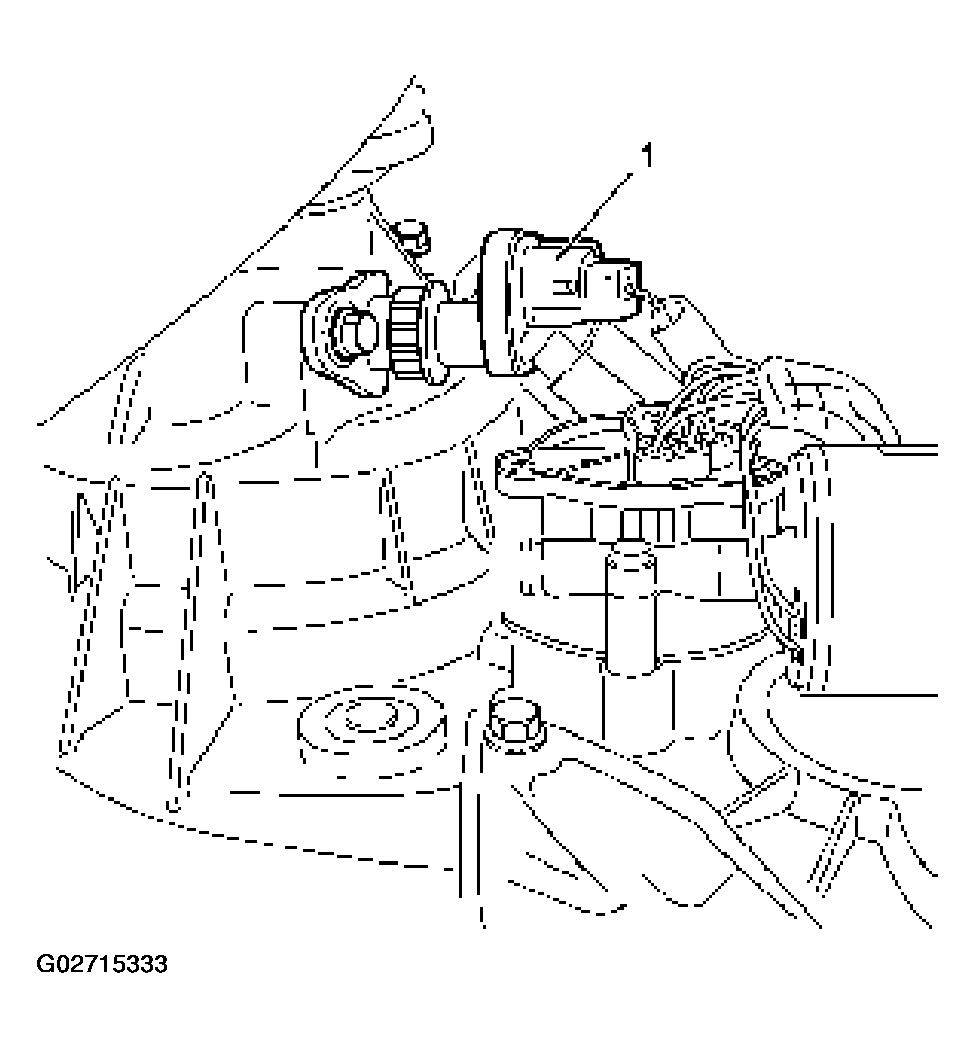

    Fig 1: Removing Vehicle Speed Sensor
    G02715333Courtesy of ISUZU MOTOR CO.
