Gauges & Instrument Panels
>>
Meter And Gauge
>>
Meter Assembly
>>
General Description
>>
Table for Meter/Gauge Connector Terminal Connections
Table for Meter/Gauge Connector Terminal Connections

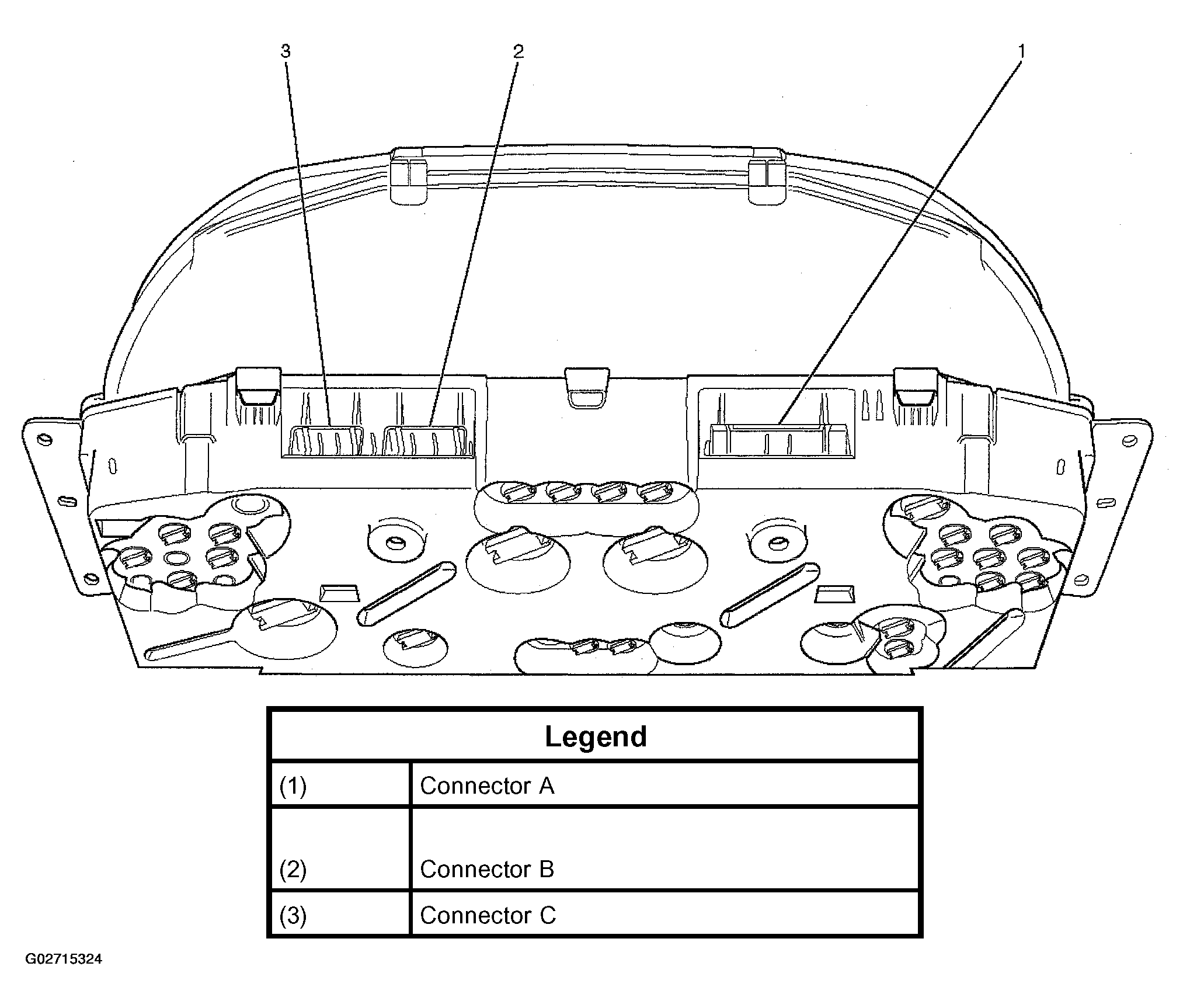

Fig 1: Identifying Meter/Gauge Connector Terminal Connections (1 Of 4)
Courtesy of ISUZU MOTOR CO.

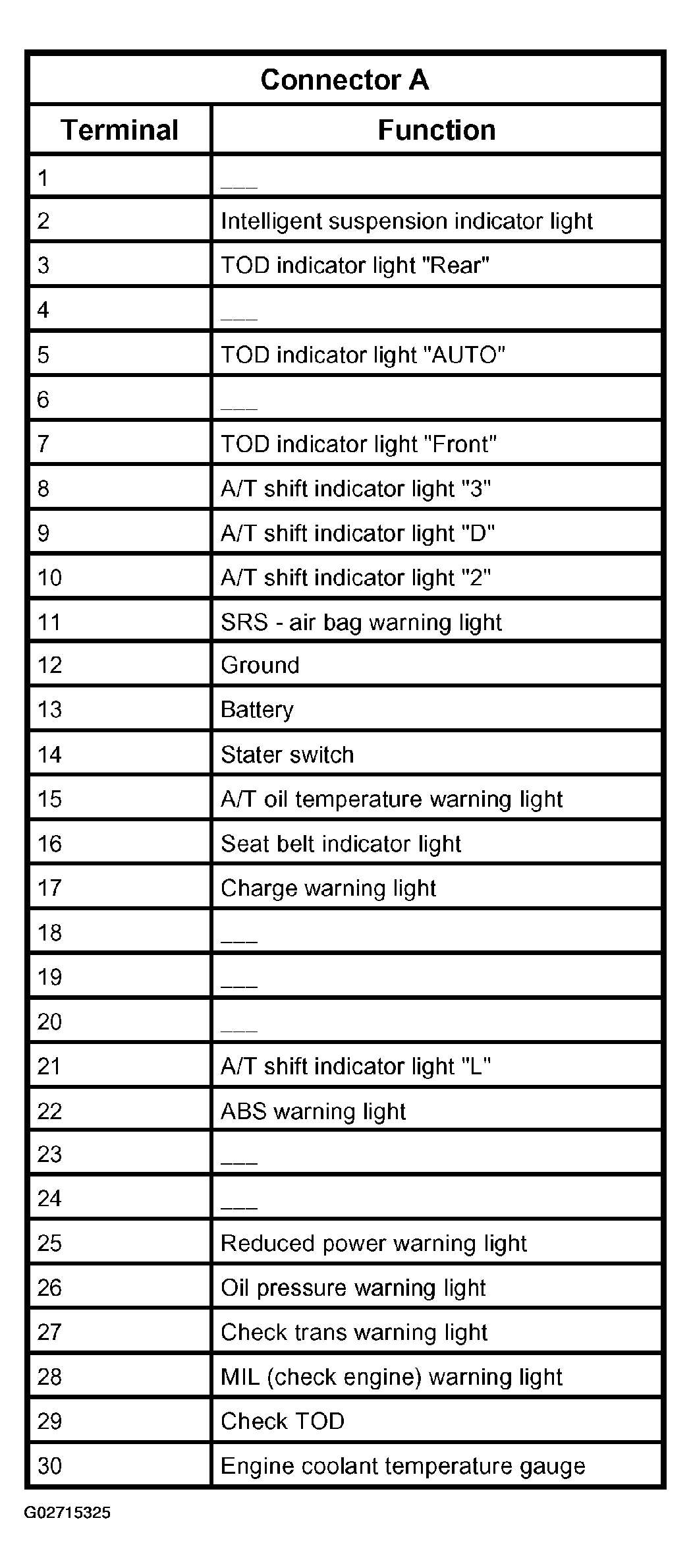

Fig 2: Identifying Meter/Gauge Connector Terminal Connections (2 Of 4)
Courtesy of ISUZU MOTOR CO.

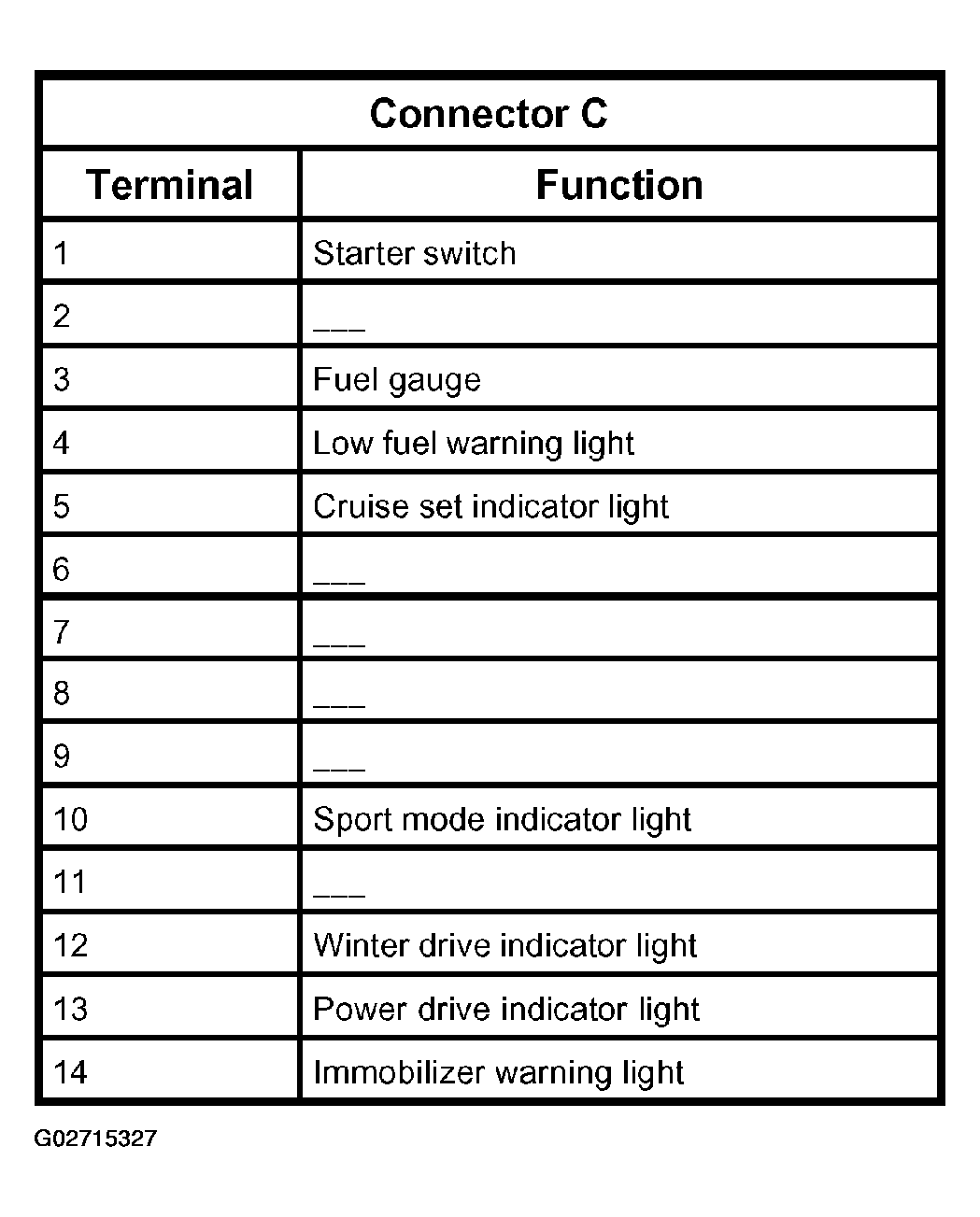

Fig 3: Identifying Meter/Gauge Connector Terminal Connections (3 Of 4)
Courtesy of ISUZU MOTOR CO.

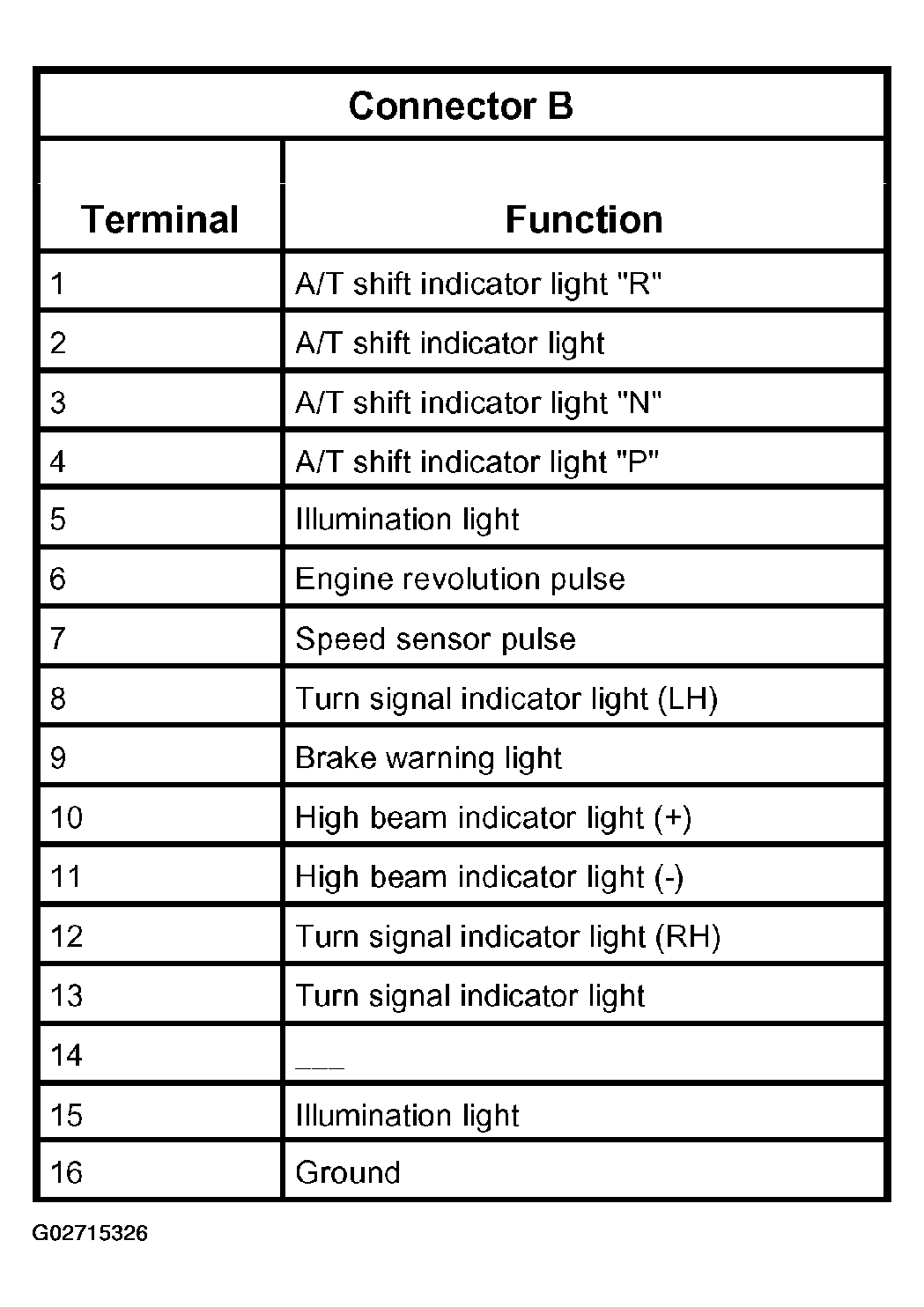

Fig 4: Identifying Meter/Gauge Connector Terminal Connections (4 Of 4)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
