Layout for Meters/Gauges, Warning Lights, Indicator Lights and Illumination Lights

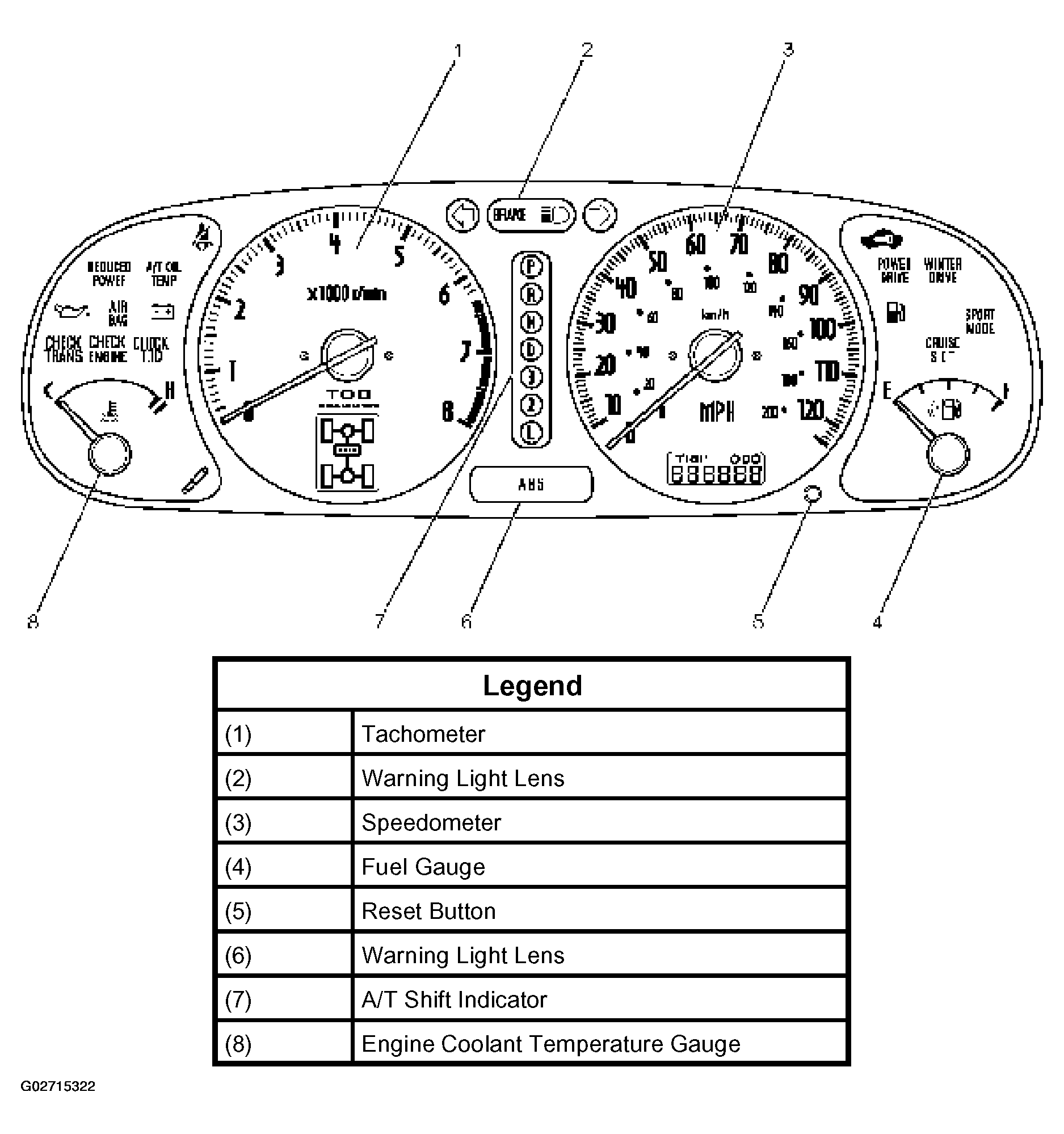

Front View

Fig 1: Identifying Front Side View Of Meter Assembly
G02715322Courtesy of ISUZU MOTOR CO.

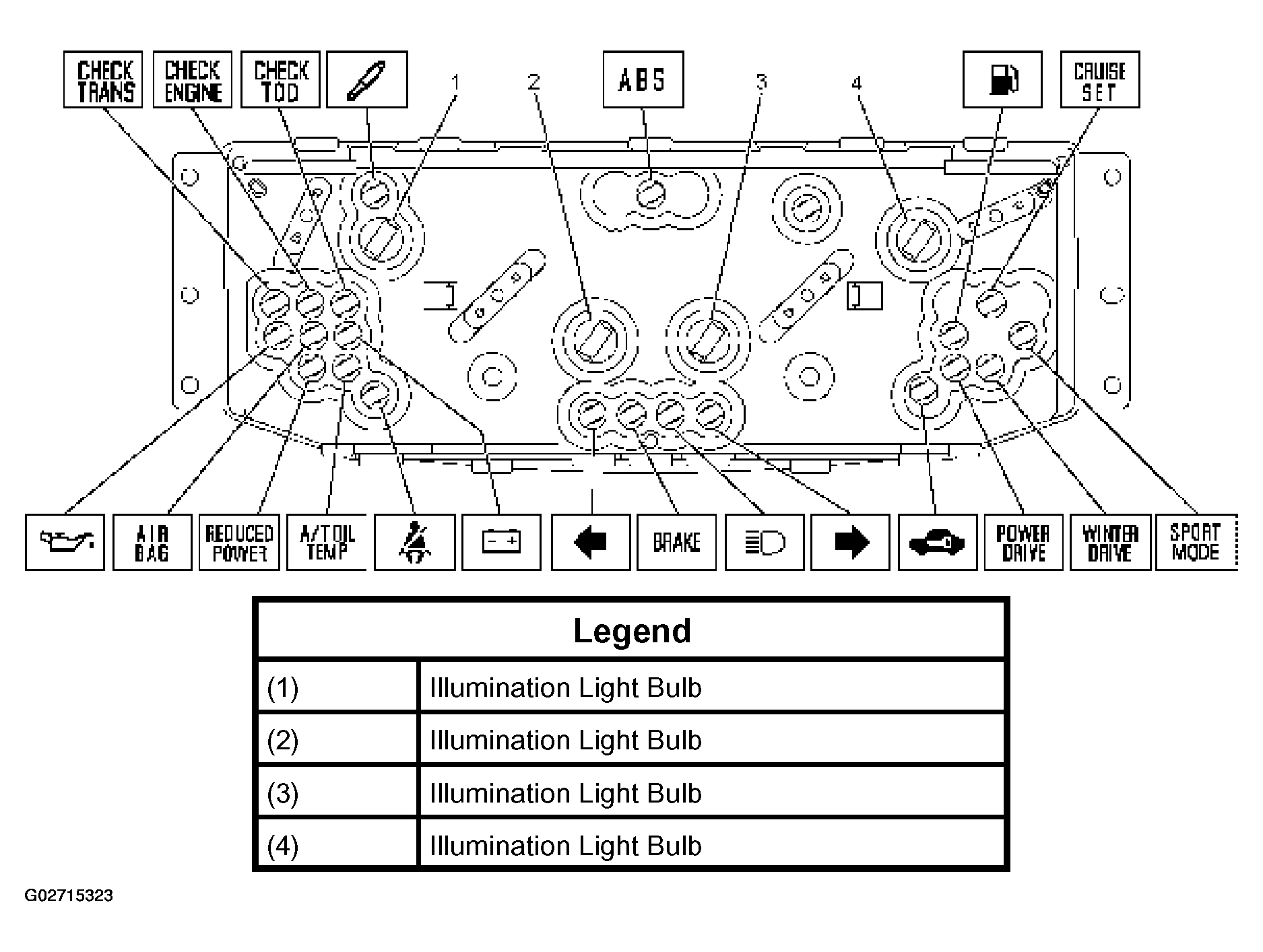

Rear View

Fig 2: Identifying Rear Side View Of Meter Assembly
G02715323Courtesy of ISUZU MOTOR CO.
