Meter Assembly: General Description: Removal

  1. Disconnect the battery ground cable.
  2. Remove the Dash Side Trim Panel-LH.
  3. Remove the lower cover Assembly (2).
  4. Remove the meter cluster Assembly(1).

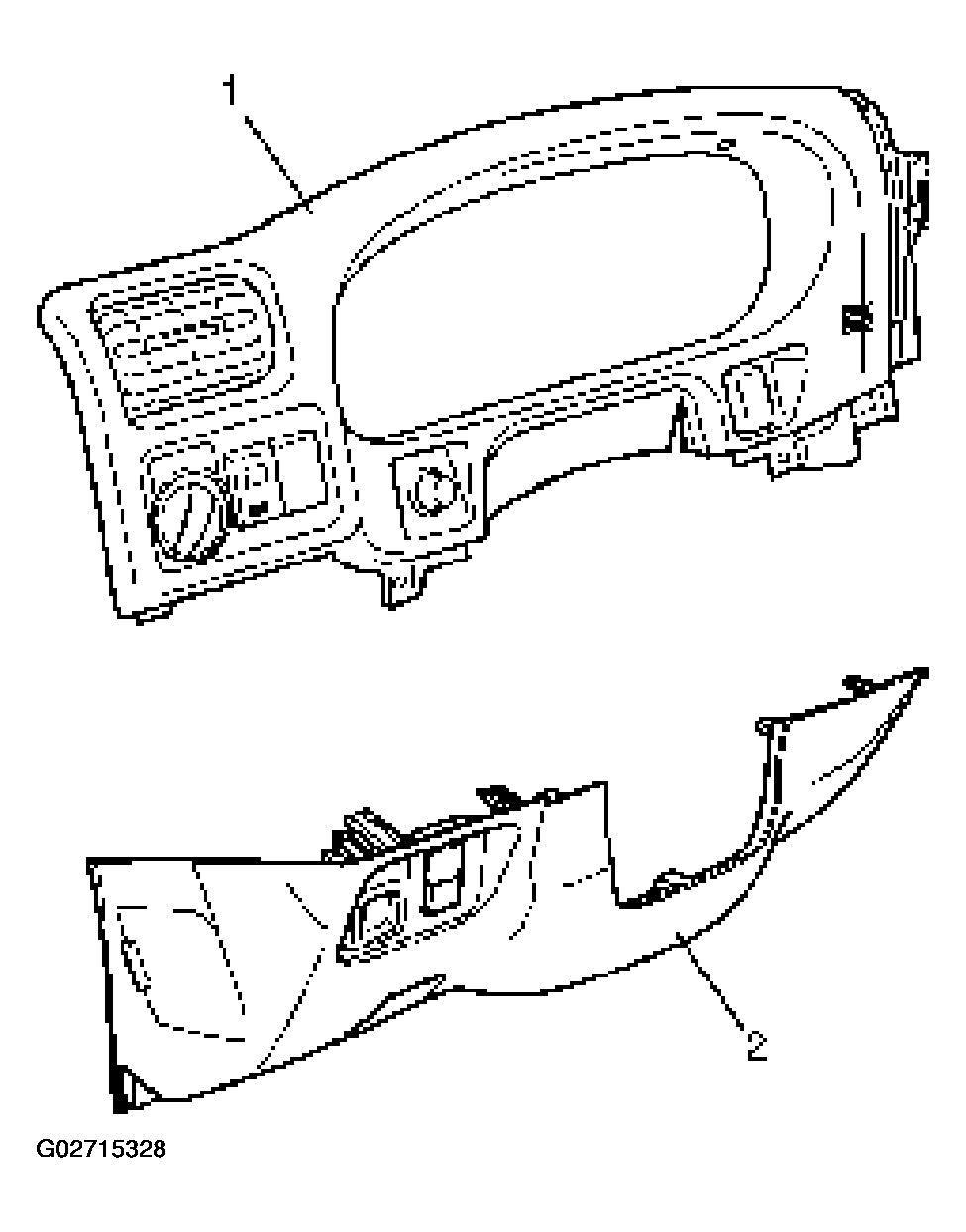

    Fig 1: Removing Meter Cluster Assembly
    G02715328Courtesy of ISUZU MOTOR CO.
  5. Remove the meter assembly (3).
    • Remove four fixing screws.
    • Disconnect the meter connectors.

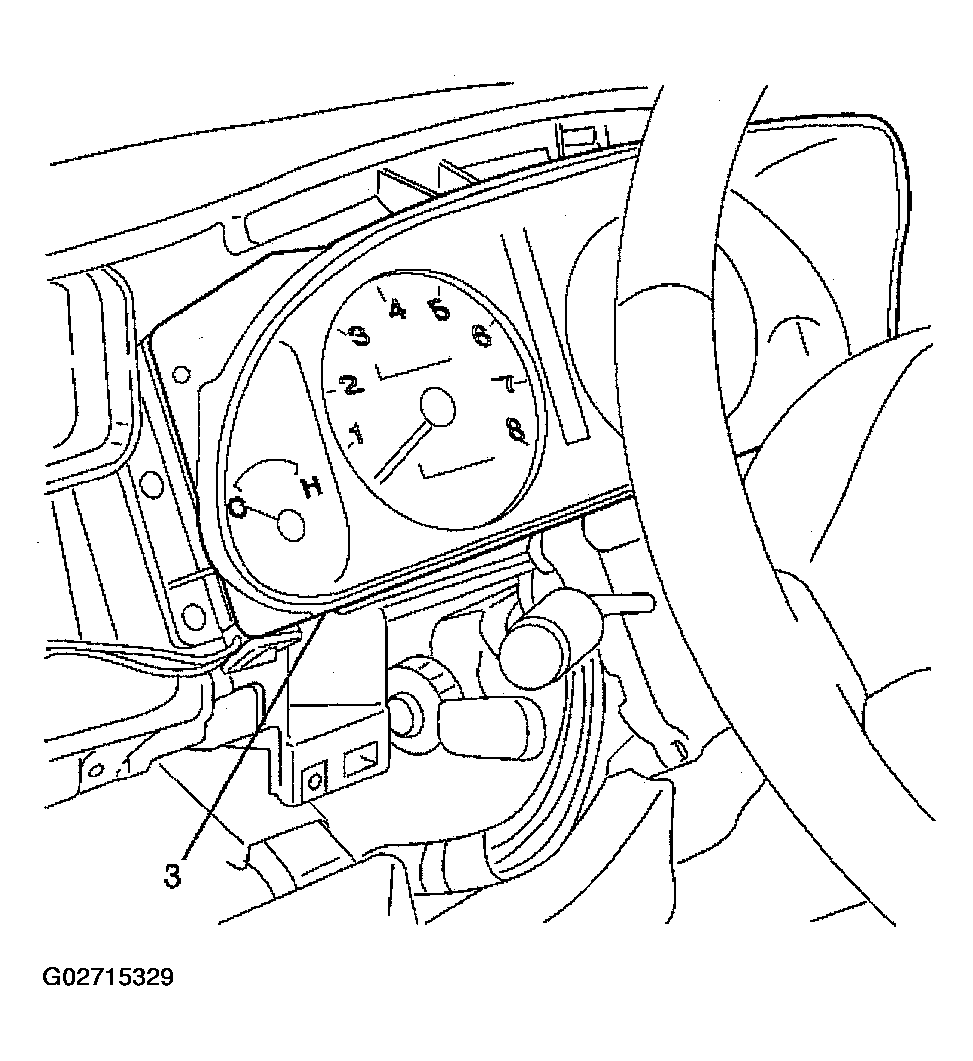

    Fig 2: Removing Meter Assembly
    G02715329Courtesy of ISUZU MOTOR CO.
    CAUTION: The removed meter assembly should be placed upright or with its face side up.
