Vehicle Speed Sensor: Removal

  1. Disconnect battery ground cable.
  2. Disconnect connector, remove vehicle speed sensor body by rotating it and remove vehicle speed sensor (1). See Fig 1.

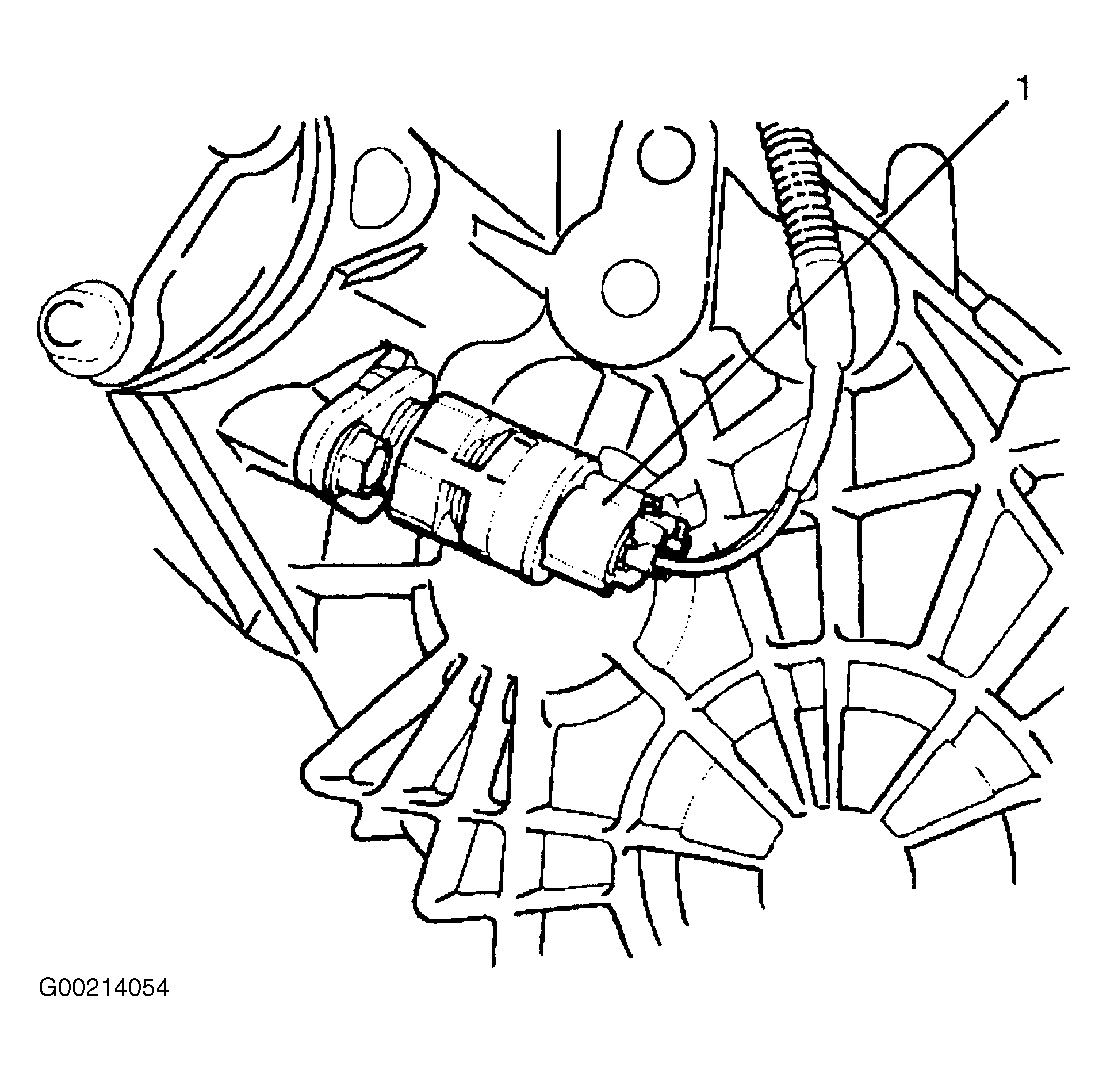

    Fig 1: Removing Vehicle Speed Sensor Body
    G00214054Courtesy of ISUZU MOTOR CO.
