Chart B-1 With the key in the ON position (Before starting the engine)/Warning light (W/L) is not activated

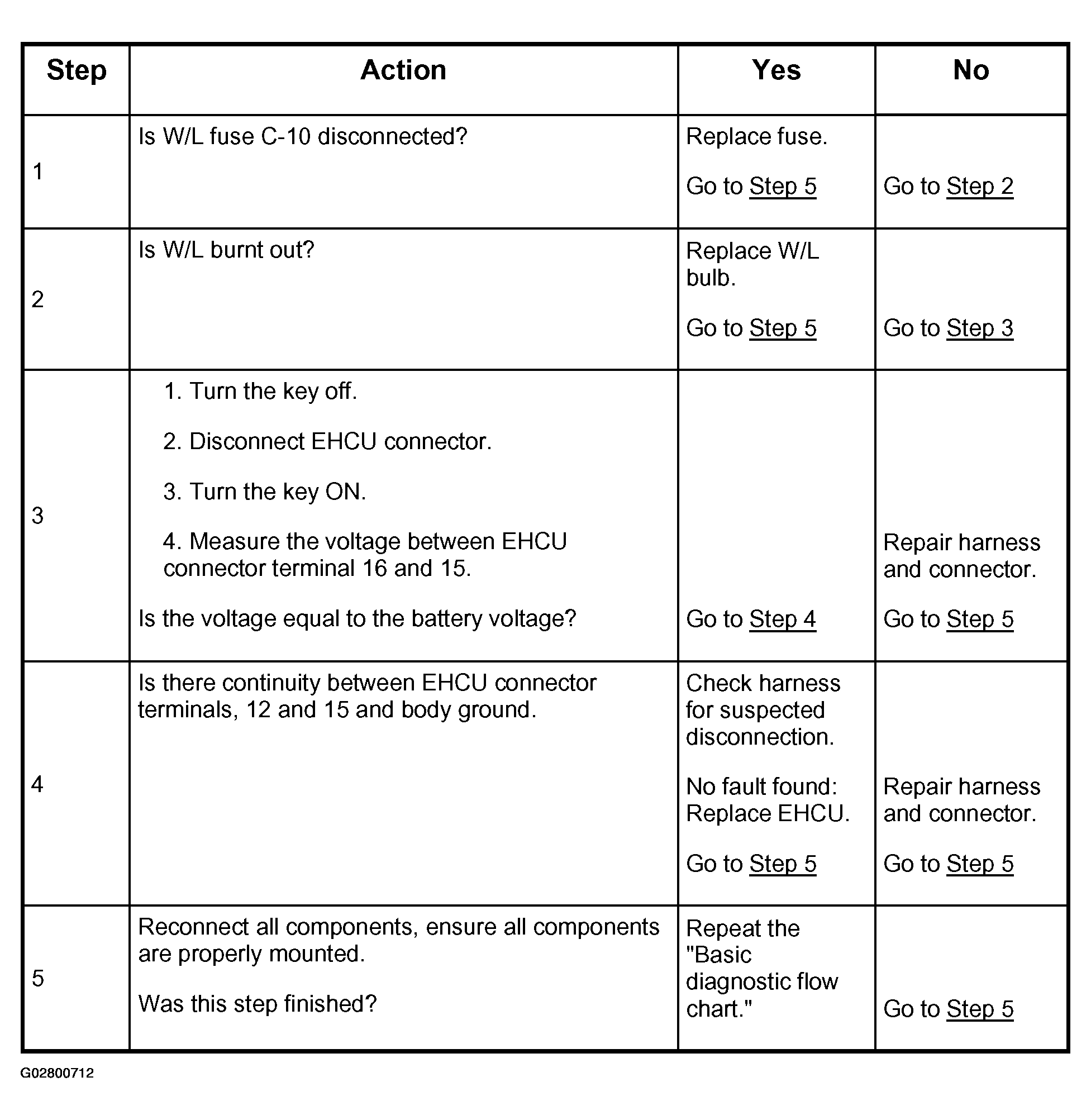

Fig 1: Warning Light Is Not Activated Diagnosis Procedure

G02800712

Courtesy of ISUZU MOTOR CO.
