Seat Belt Reminder Lamp

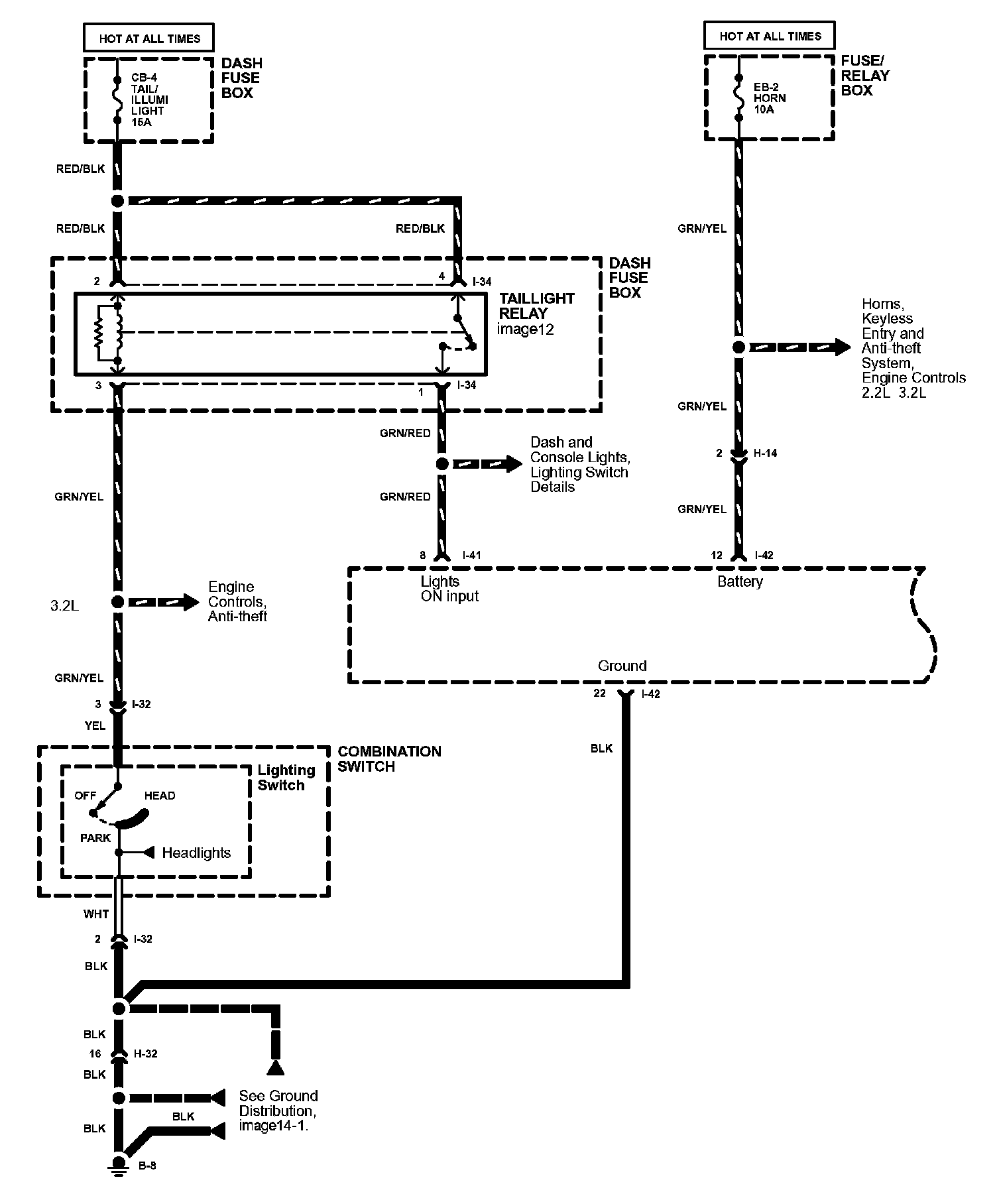

Seat Belt, Lights-On, And Key-In Ignition Warning System Image 73:

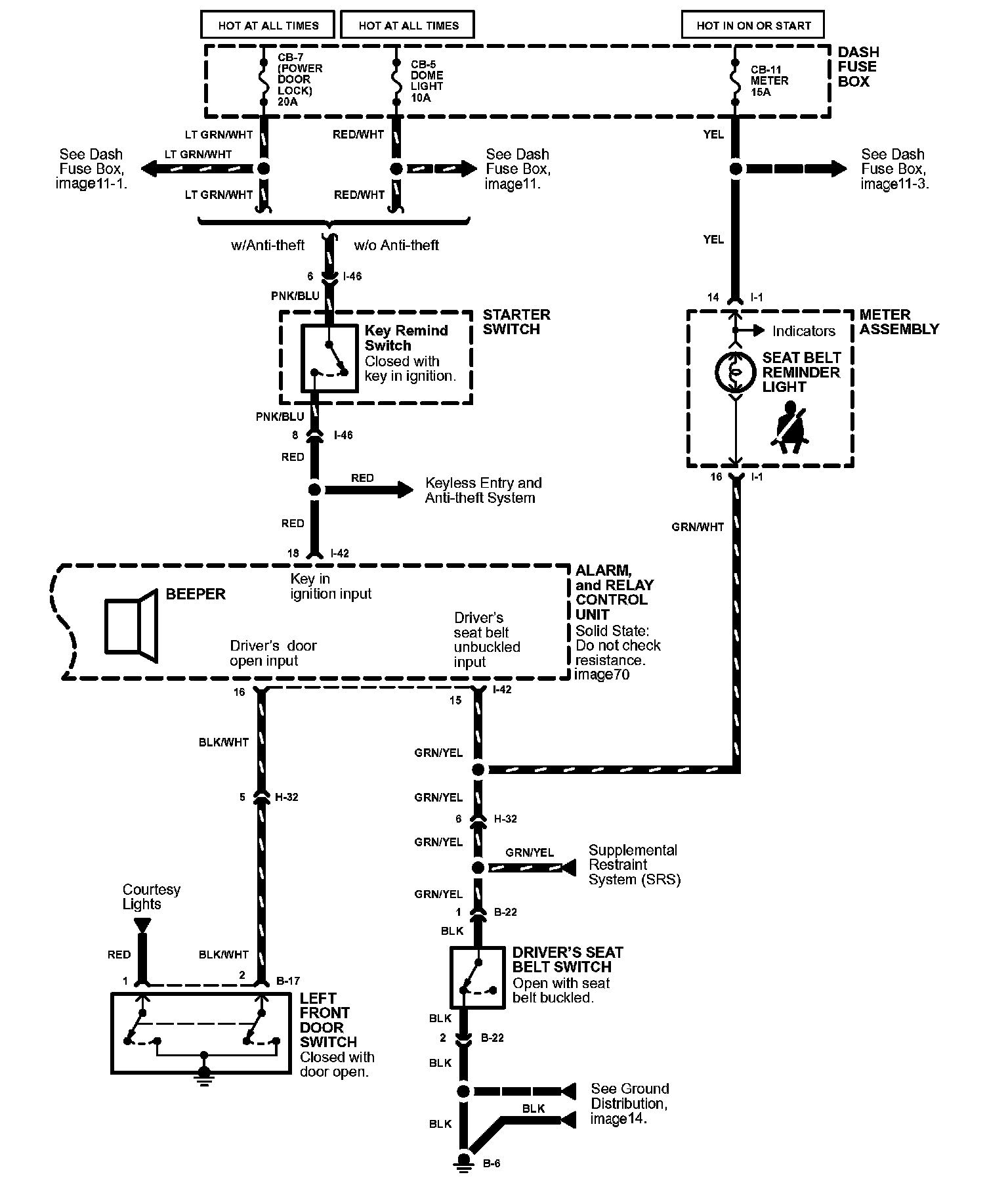

Seat Belt, Lights-On, And Key-In Ignition Warning System Image 73-1:
