Fault on Switching from 4WD to 2WD

  1. Case that indicator does not blink nor turn out.

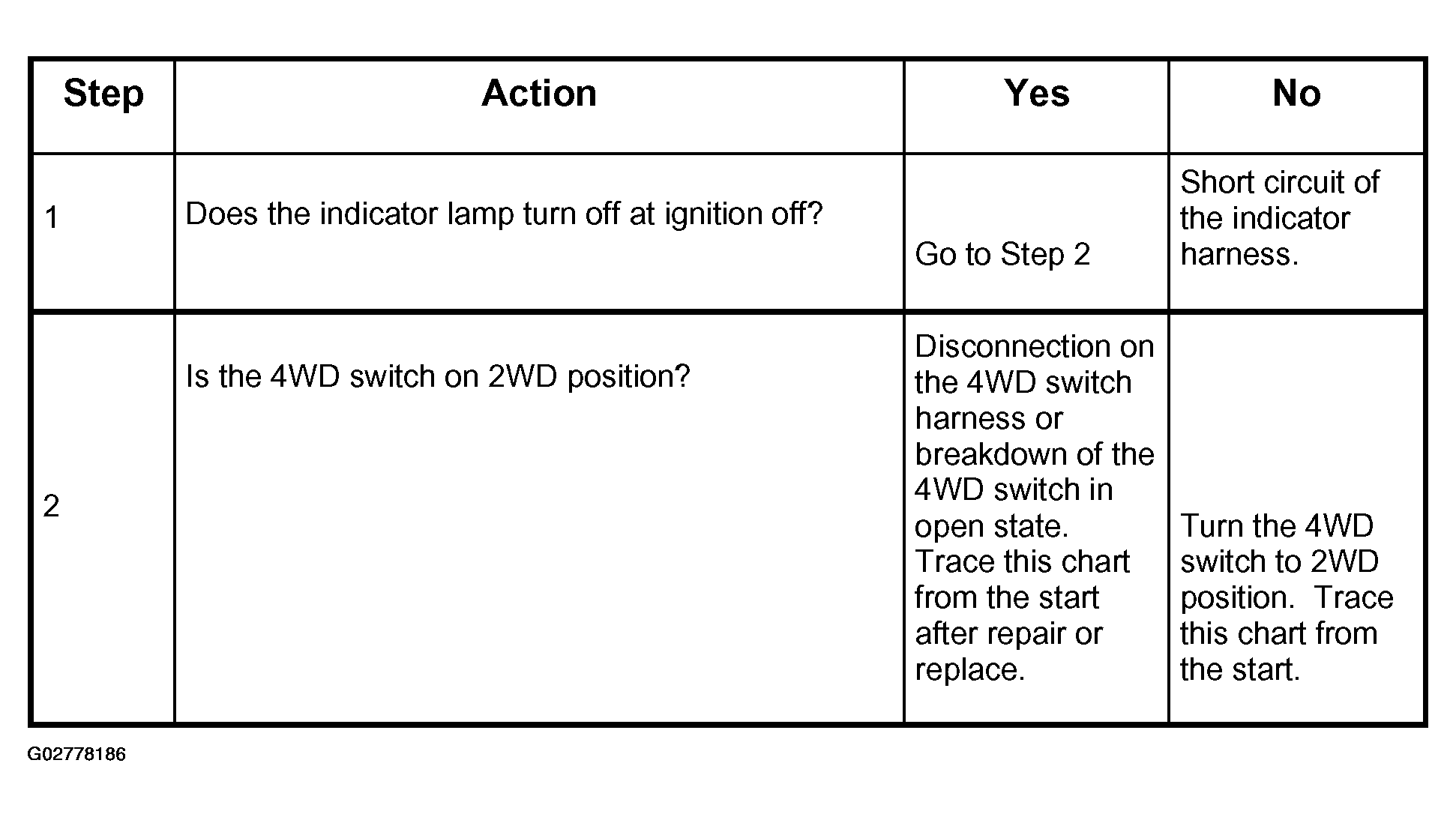

    Fig 1: 4WD To 2WD Indicator Does Not Blink
    G02778186
  2. When the indicator lamp continues to blink (at 2Hz) after performing Solution 3.

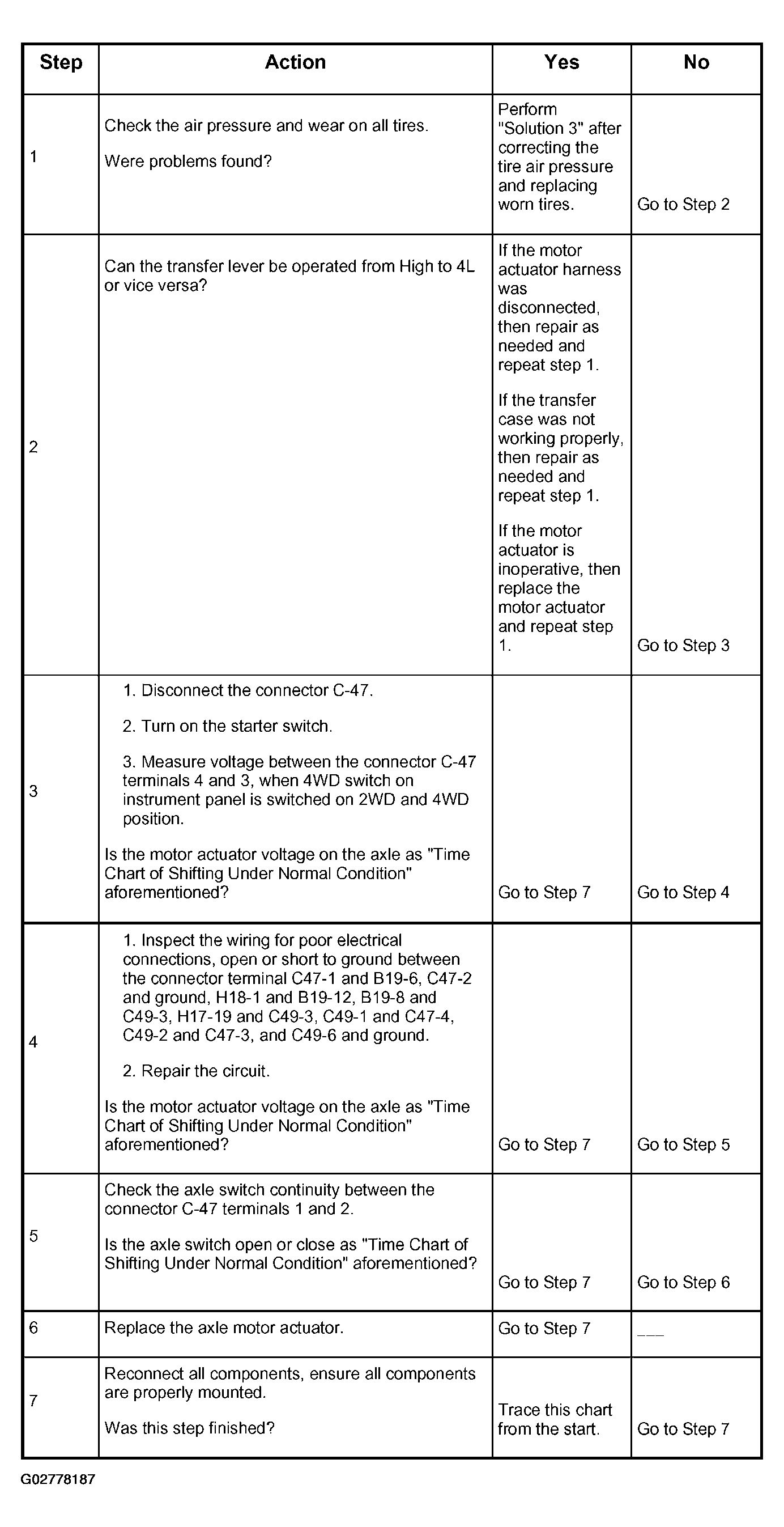

    Fig 2: Indicator Lamp Blinking Pattern (After Performing Solution 3)
    G02778187
  3. Case that indicator's blinking changes to 4Hz after aforementioned Solution 4 is carried out.

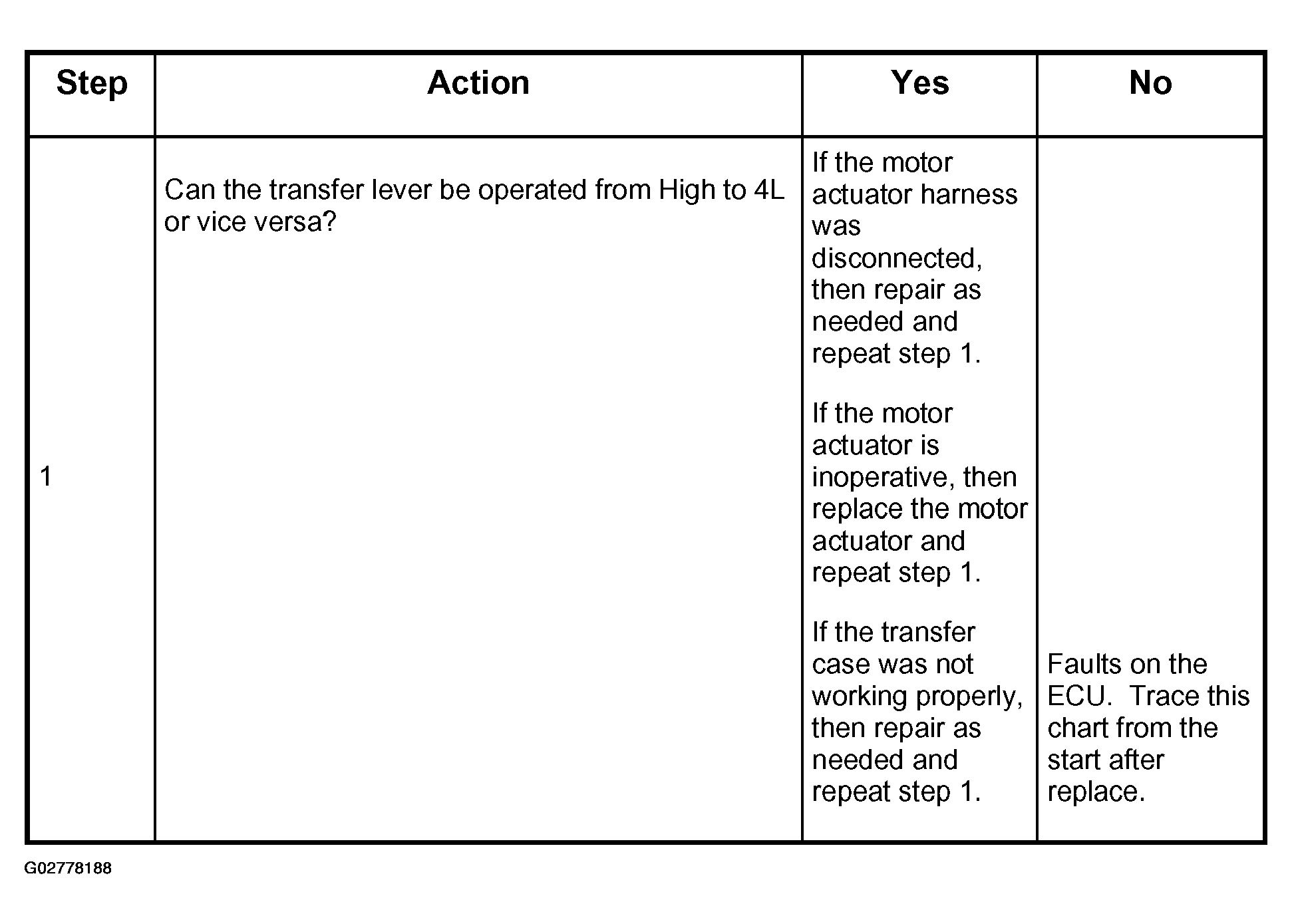

    Fig 3: Indicator Lamp Blinking Pattern (After Solution 4 Is Carried Out)
    G02778188
