Dimmer Switch: Diagrams

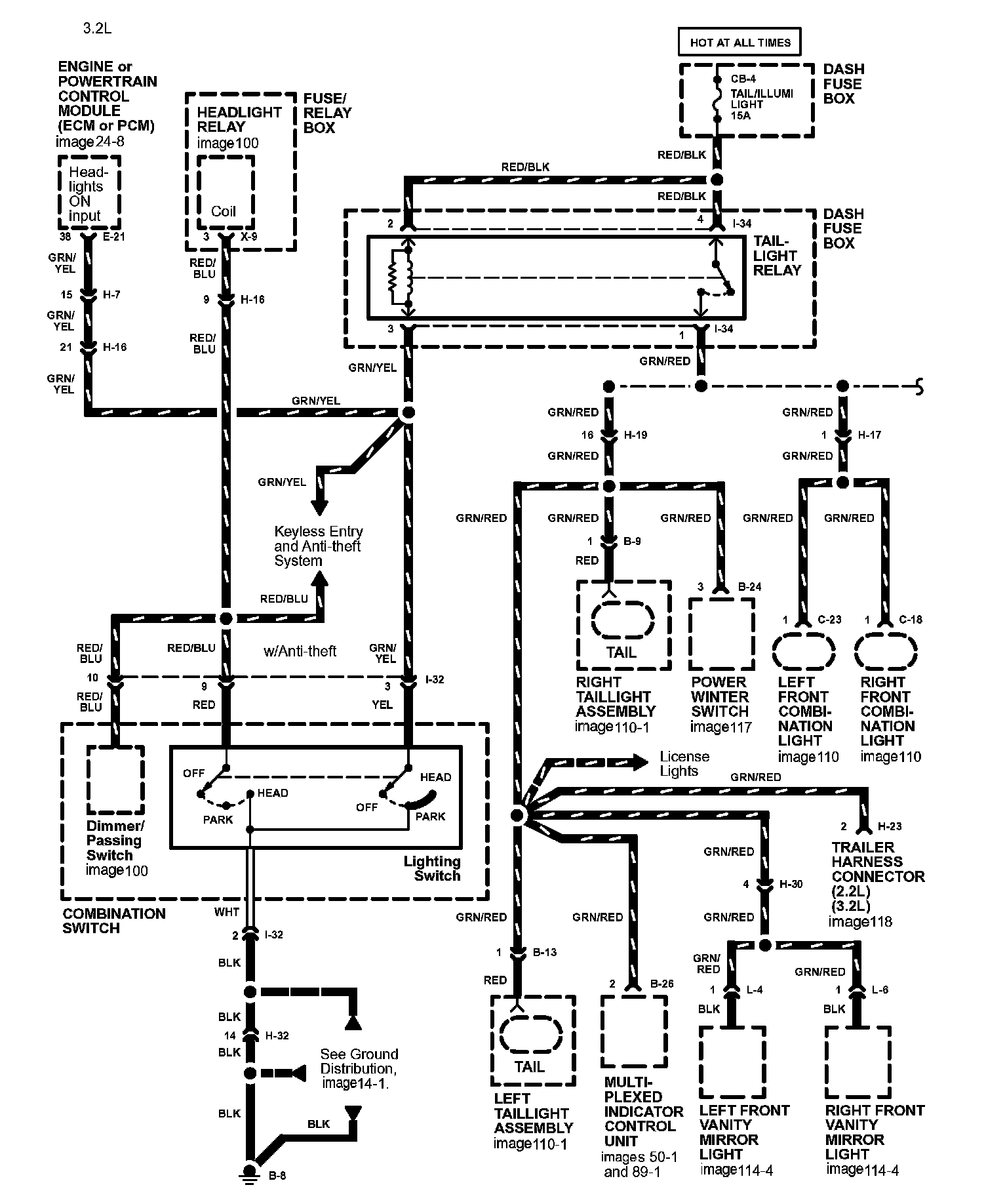

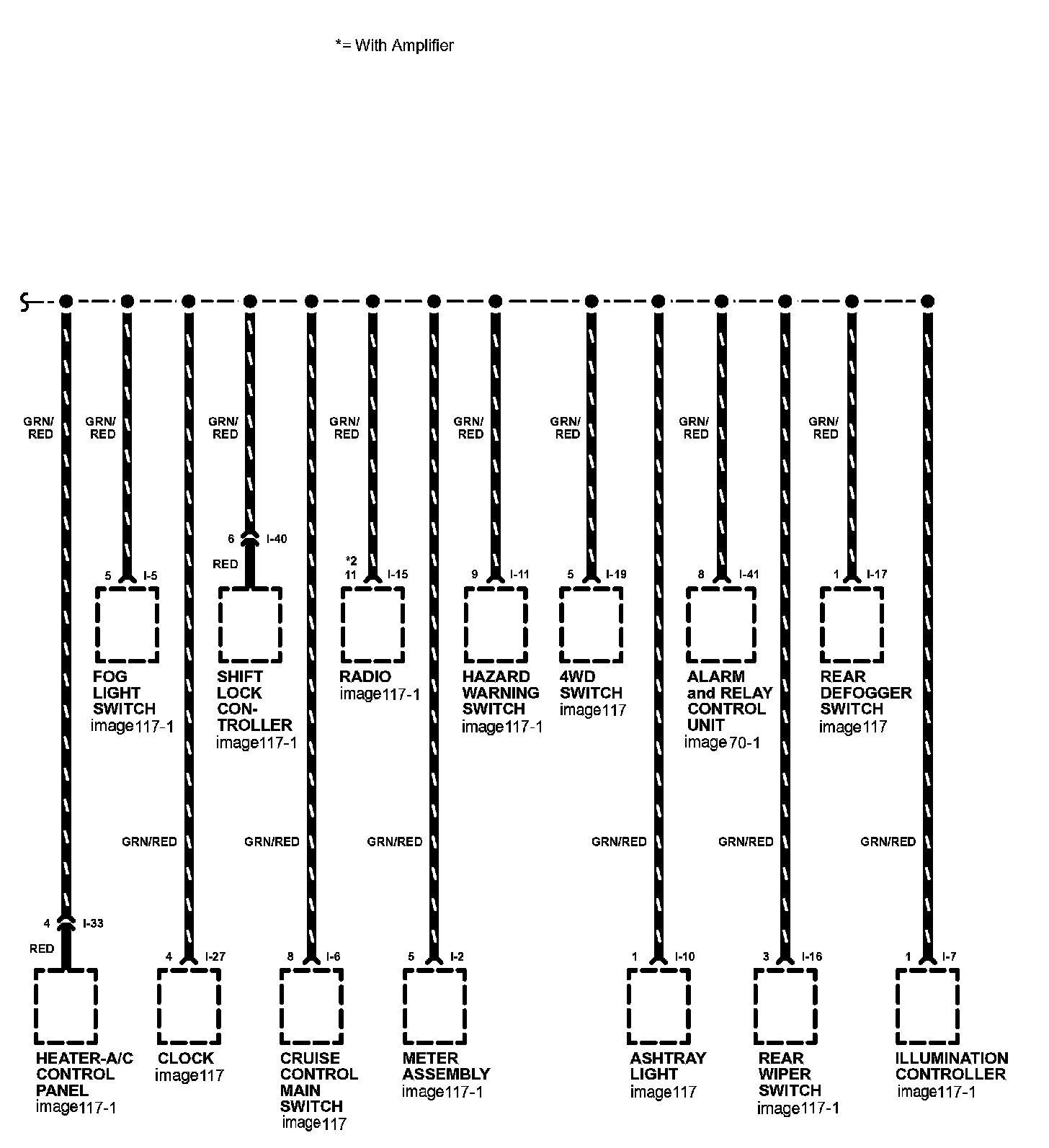

Illumination Light:

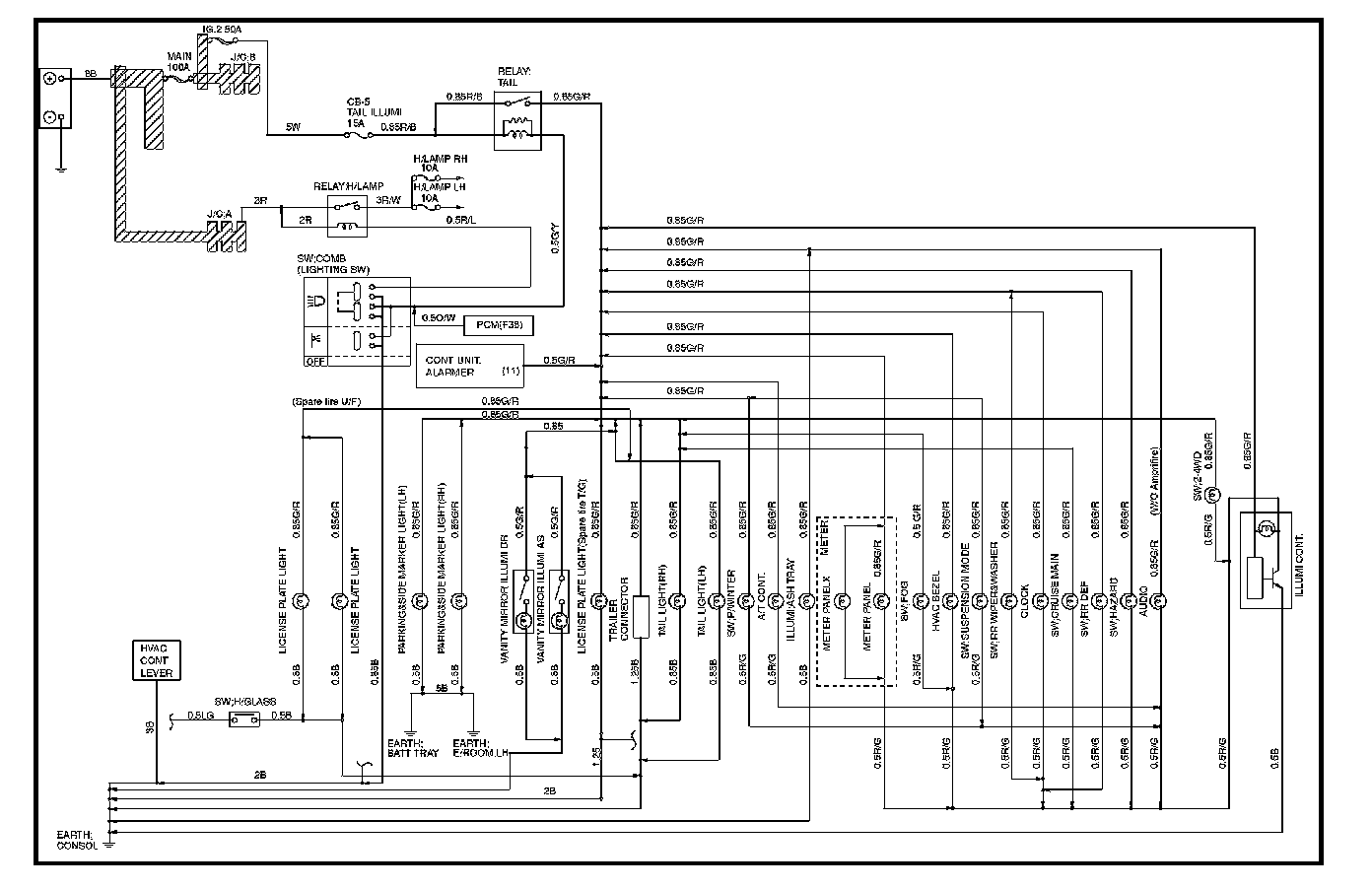

Lighting Switch Details Image 12:

Lighting Switch Details Image 12-1:
