Inspection And Repair For Bearings

  1. Inspect Crankshaft

Set the dial indicator as shown in the illustration and measure the crankshaft thrust clearance. If the thrust clearance exceeds the specified limit, replace the thrust bearings as a set.

Thrust Clearance

Standard:  0.06 mm - 0.24 mm (0.0024 in - 0.0094 in)

Limit:  0.30 mm (0.0118 in)

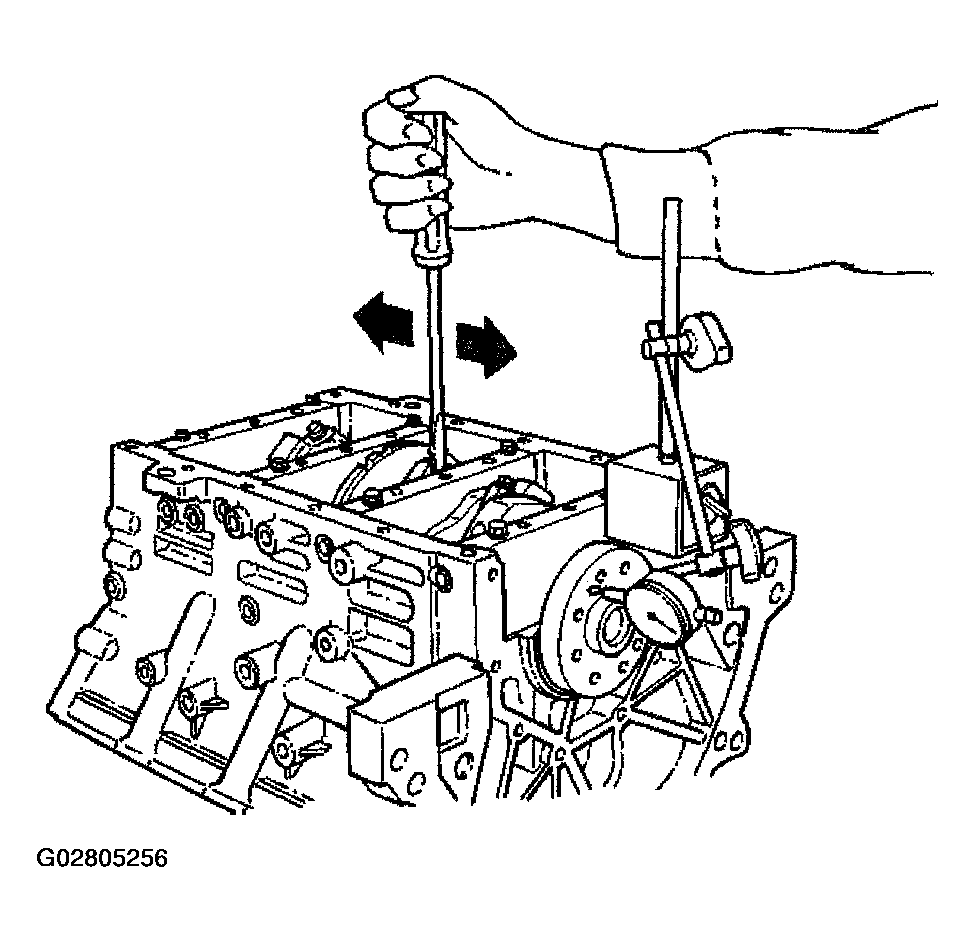

Fig 1: Measuring Crankshaft Thrust Clearance
G02805256Courtesy of ISUZU MOTOR CO.
