Slip Joint Disassembly

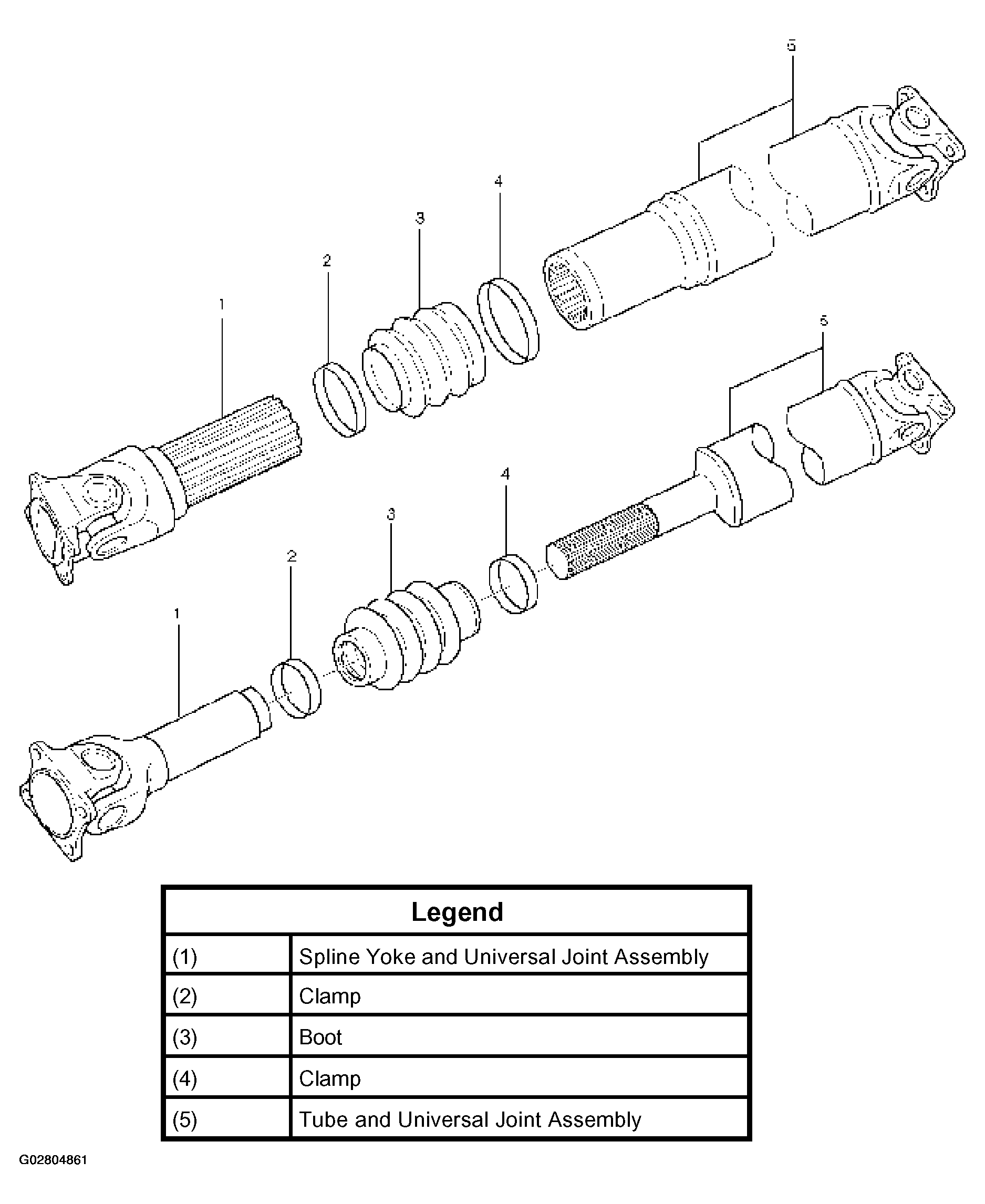

Fig 1: Disassembling Slip Joint
G02804861Courtesy of ISUZU MOTOR CO.
  1. Lay the shaft horizontally on a bench and secure.
  2. Indicate the original assembled position by marking the phasing of the shaft prior to disassembly.
  3. Using the flat blade of a screwdriver, pry the loose end of the boot clamp upwards and away from the propeller shaft boot. Be careful not to damage the boot.
  4. When boot clamps becomes loose, remove by hand.
  5. Repeat for the other boot clamp.
  6. Remove the slip yoke assembly from the driveshaft, by securing the boot with one hand and pulling on the slip yoke.
  7. Remove the boot from the shaft assembly.
