Rear Propeller Shaft And Associated Parts: Inspection

Propeller shaft for run-out Aluminum tube type.
Static run-out limit: 1.0 mm (0.04 in)

TIR full length of tubing maximum.

TIR: (Total Indicator Reading)
Propeller shaft for runout (Steel tube type).
Static run-out limit: 0.13 mm (0.005 in)

TIR on the neck of the slip tube shaft (with a boot).

0.25 mm (0.010 in)

TIR on the ends of the tubing 3 inch from the welds.

0.38 mm (0.015 in)

TIR at the linear center of the tube.

0.38 mm (0.015 in)

TIR for the full length of tube with 30" or less of tubing.

TIR: (Total Indicator Reading)

Fig 1: Checking Propeller Shaft Runout (Steel/Aluminum Tube Type)
Courtesy of ISUZU MOTOR CO.
Play in universal joint.
Limit: Less than 0.15 mm (0.006 in)
Spider pin should be smooth and free from fretting or galling.
Visible signs of needle presence is normal, but wear should not be felt.

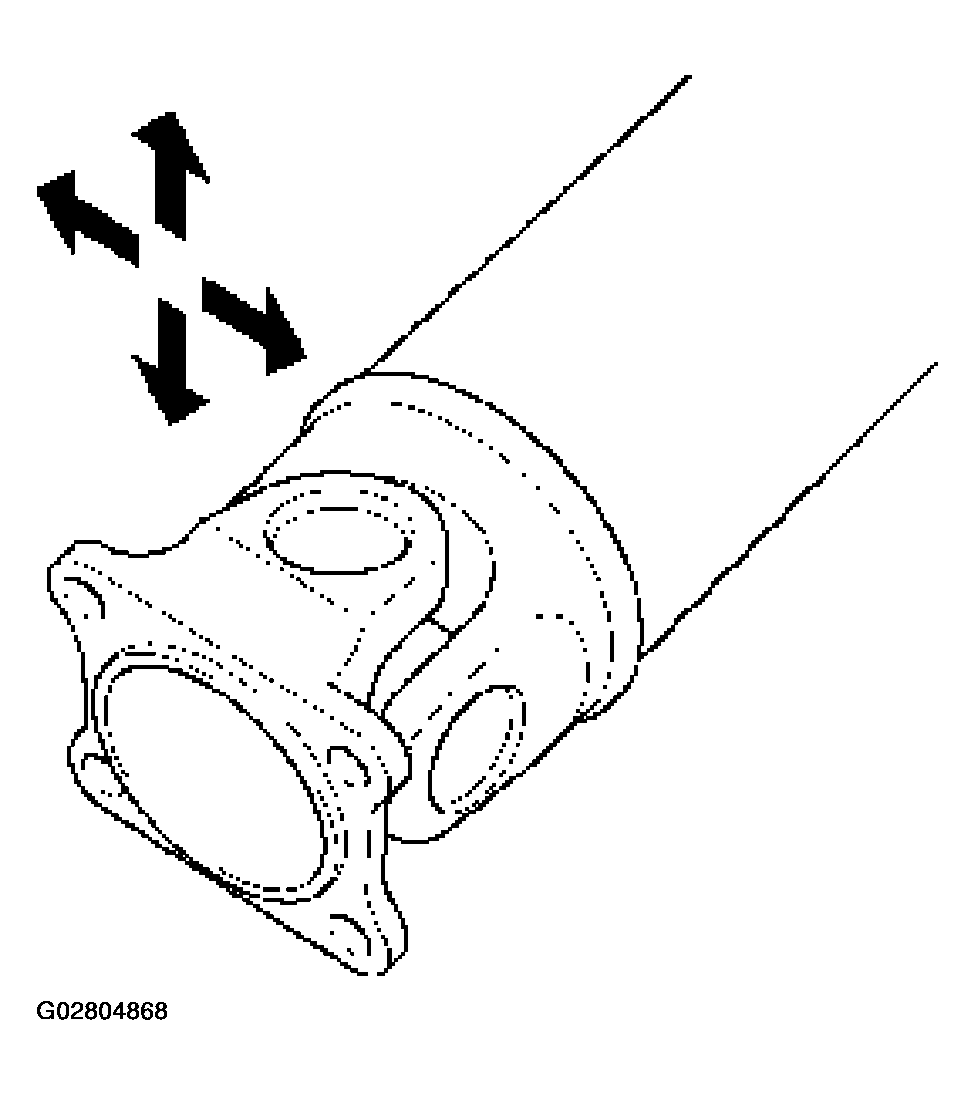

Fig 2: Checking Play In Universal Joint
Courtesy of ISUZU MOTOR CO.
Preload of the universal joint.
Preload should be 0 to 49 N (0 to 11.0 lb).

Joints should rotate smoothly and freely and should exhibit no rough or ratchety movement.

Fig 3: Checking Preload Of Universal Joint
Courtesy of ISUZU MOTOR CO.
Inspect splines of slip joint for wear.
The nylon-coated spline should be free from nicks and dings and the underlying steel spline should not be visible.

After cleaning the nylon coating spline, the coating should exhibit only slight indication of wear.

Grease volume is approximately 10 grams of grease in total. Grease should be evenly applied to both the female and the male slip splines using a small brush. After assembly of the slip joint, the sliding joint should be fully worked from the full collapsed to the full extended position.
Aluminum tube type only: Inspect the aluminum tubing for surface scratches and dents. These scratches may not exceed 0.2 mm (0.008 in) in depth.

Fig 4: Inspecting Aluminum Tubing For Surface Scratches And Dents
Courtesy of ISUZU MOTOR CO.
Aluminum tube type only: Visually inspect the circle welds and fittings for any signs of cracks or signs of deterioration. If there are any cracks that exceed 0.2 mm (0.008 in) in depth, the assembly must be replaced.
Aluminum tube type only: Check to be sure there are no missing balance weights. If balance weights are missing and void has occurred in the aluminum tubing greater than 0.2 mm (0.008 in), the assembly must be replaced.
