Pinion Oil Seal And Associated Parts: Removal

  1. Remove the rear propeller shaft. Refer to REAR PROPELLER SHAFT .
  2. Drain the rear axle oil.
  3. Check and record preload with an inch pound torque wrench. This will give combined pinion bearing, seal, carrier bearing, axle bearing and seal preload.

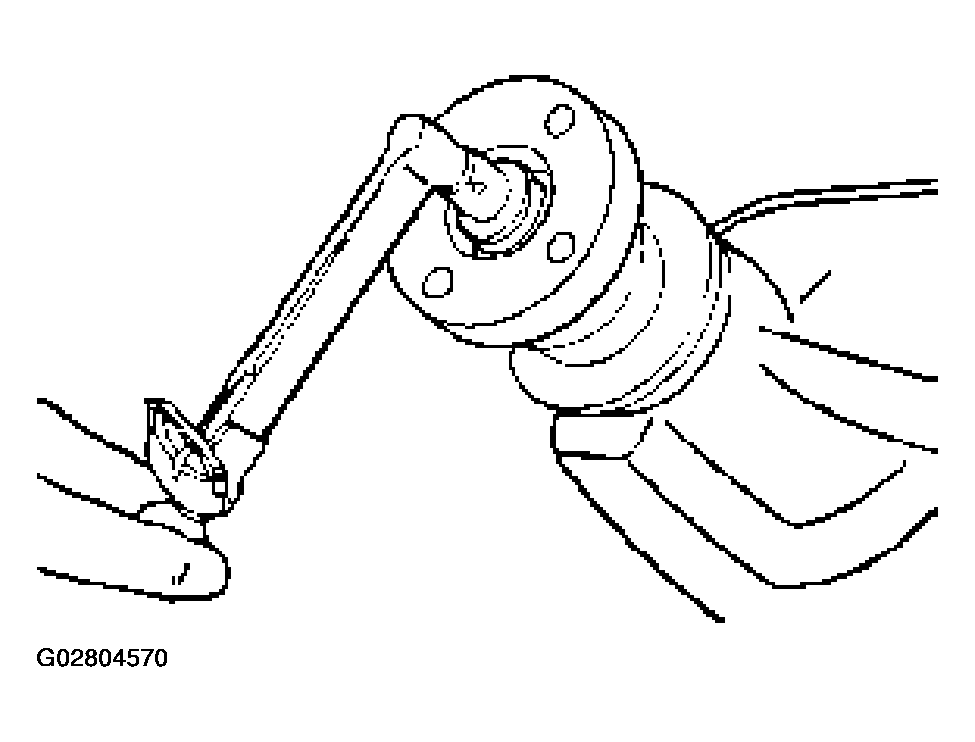

    Fig 1: Checking Preload Of Drive Pinion Bearing With An Inch Pound Torque Wrench
    G02804570Courtesy of ISUZU MOTOR CO.
  4. Remove flange nut and washer by using pinion flange holder J-8614-01 after raising up its staked parts completely.

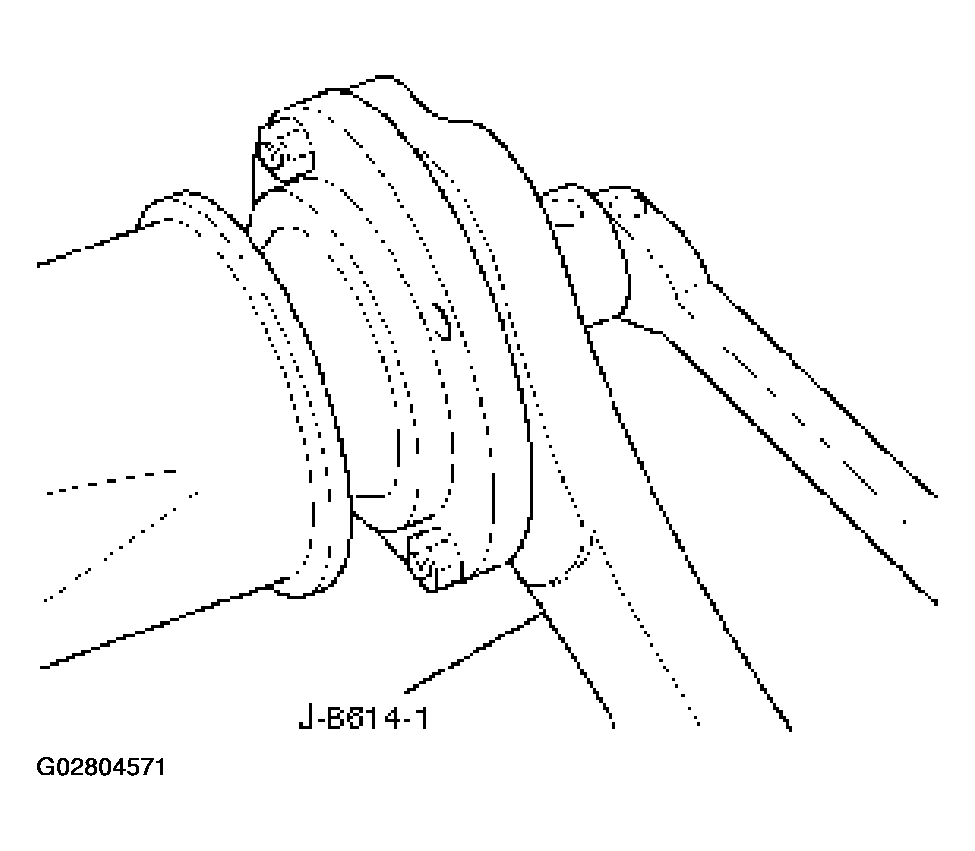

    Fig 2: Removing Flange Nut & Washer
    G02804571Courtesy of ISUZU MOTOR CO.
  5. Remove flange by using SST J-8614-1-3.
    • Have a suitable container in place to catch lubricant.

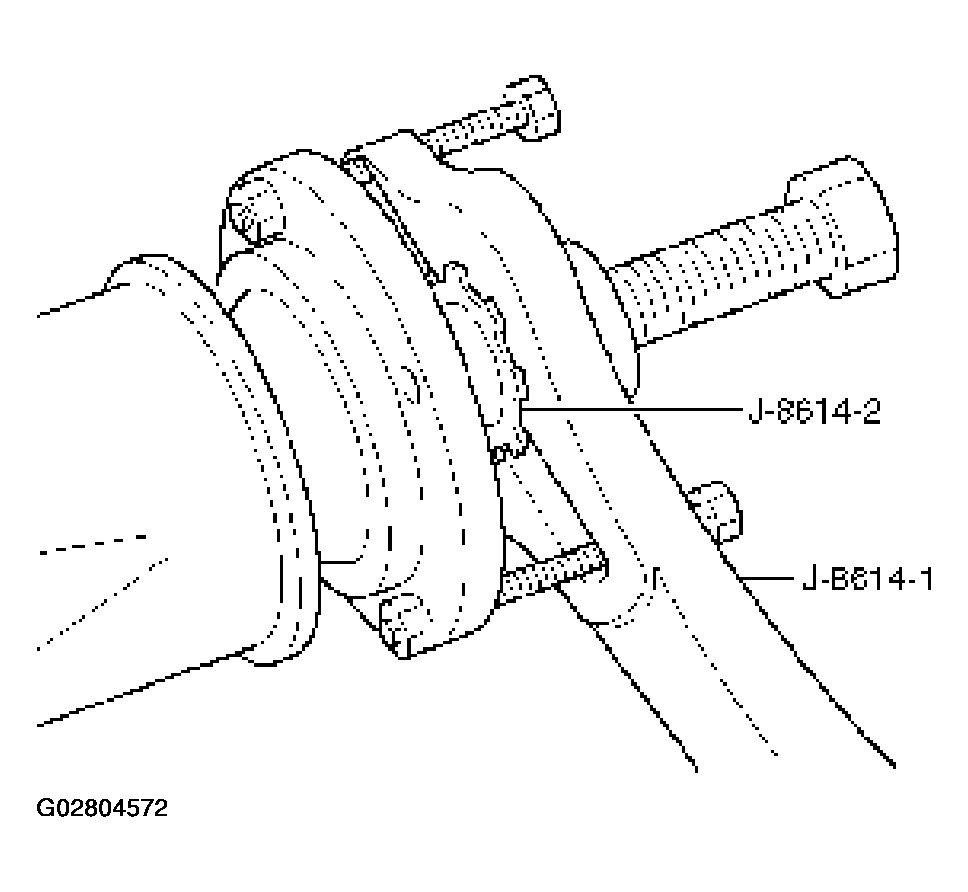

      Fig 3: Removing Flange
      G02804572Courtesy of ISUZU MOTOR CO.
  6. Remove oil seal.
  7. Remove pinion oil seal slinger.
  8. Remove outer bearing by using remover J-39602.

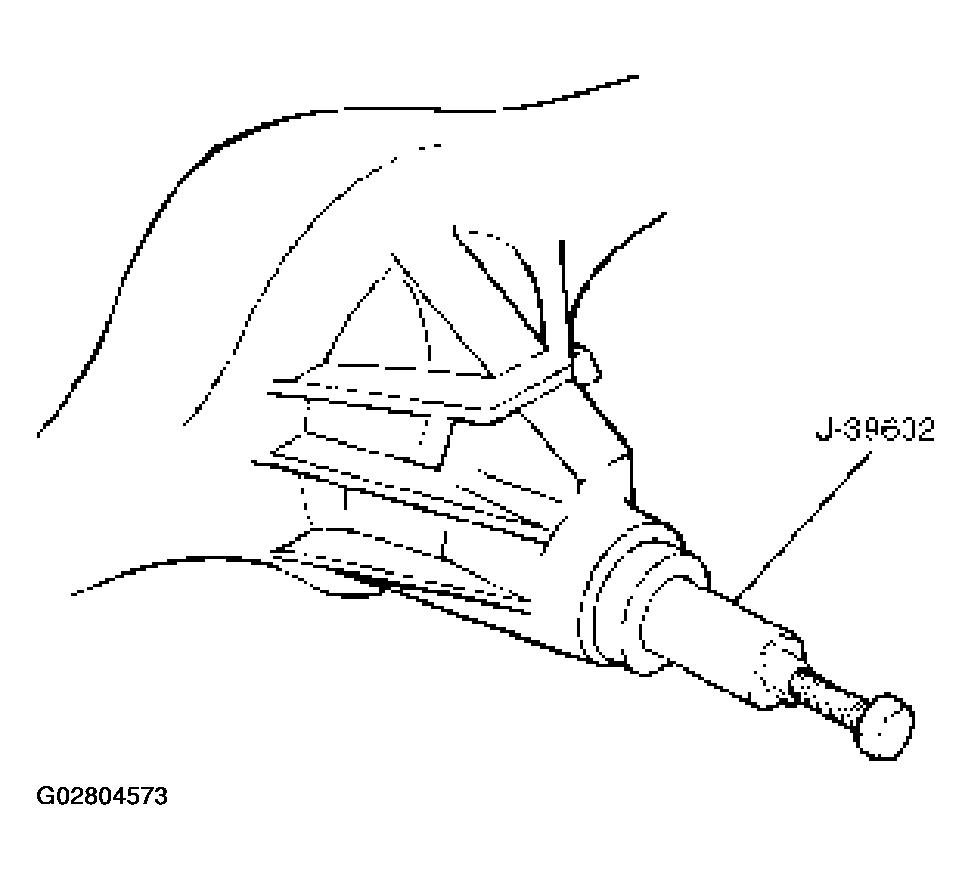

    Fig 4: Removing Outer Bearing
    G02804573Courtesy of ISUZU MOTOR CO.
  9. Remove collapsible spacer.
