Drum Brake Model: Removal

  1. Raise the vehicle.
  2. Remove rear wheels and brake calipers or drums.

    Do not let calipers hang from the vehicle by the brake line or hose. Use a wire to hang the caliper to the frame to prevent damage to the caliper.

  3. Remove four nuts and lock washers.
  4. Remove shaft assembly from the axle housing.
  5. Remove snap ring and bearing cup.
  6. Break retainer ring with hammer and chisel.

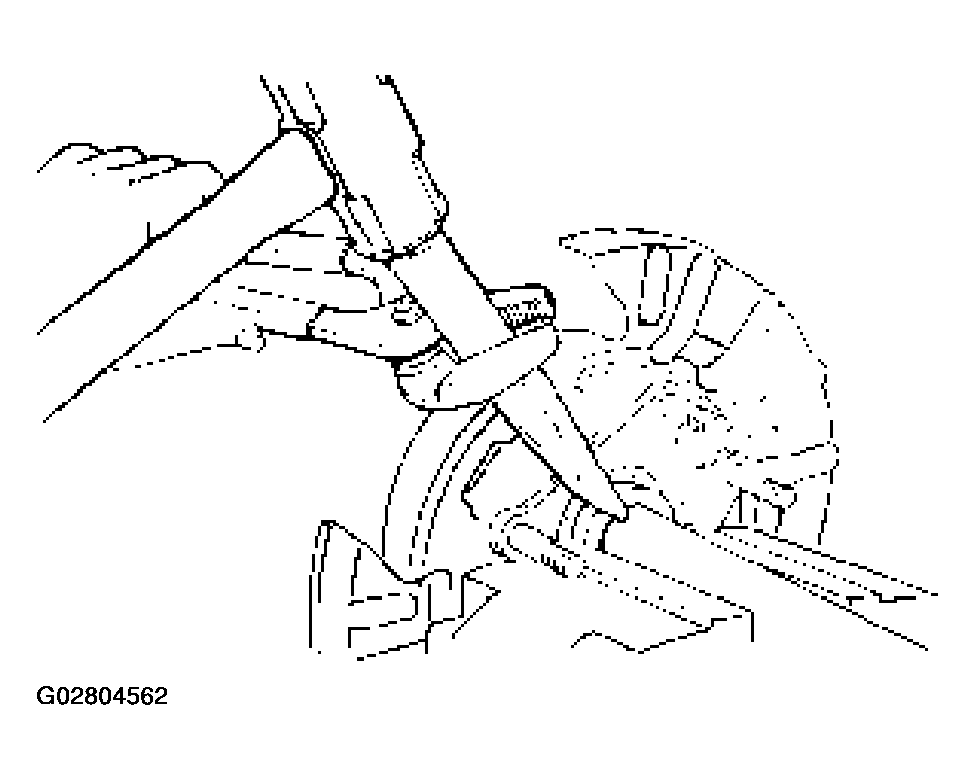

    Fig 1: Breaking Retainer Ring With Hammer & Chisel
    G02804562Courtesy of ISUZU MOTOR CO.
  7. Break bearing cage with hammer and chisel.

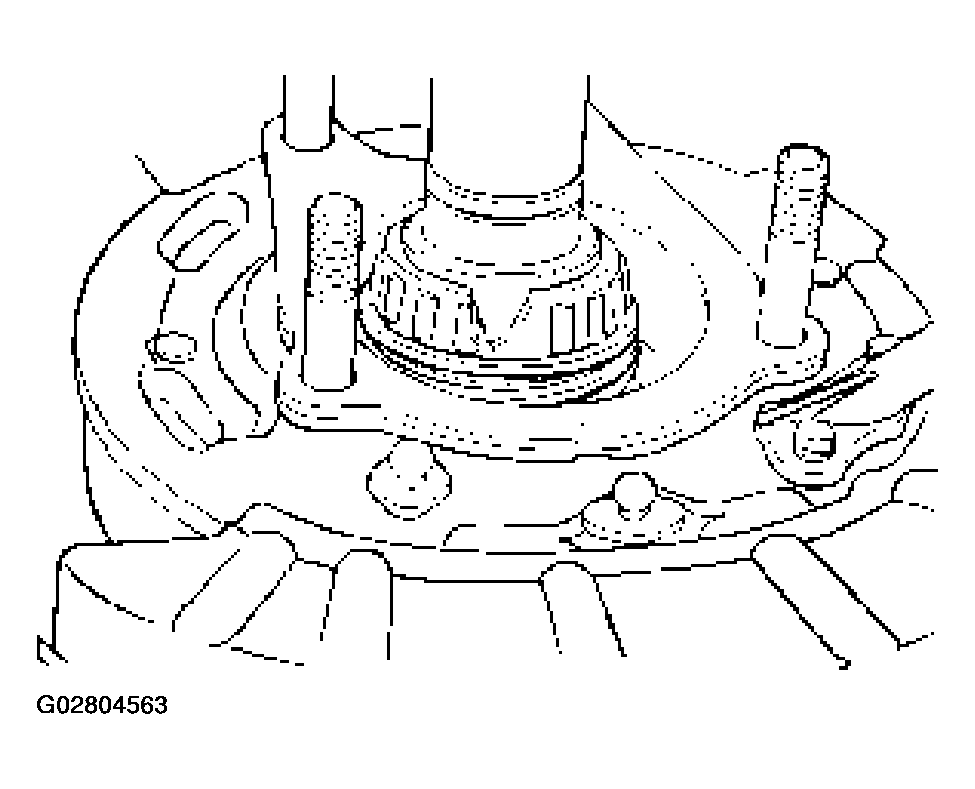

    Fig 2: Breaking Bearing Cage With Hammer & Chisel
    G02804563Courtesy of ISUZU MOTOR CO.
  8. Remove oil seal, retainer, and emergency brake assembly.
  9. Remove inner race from shaft with OTC-1126 bearing splitter and press.

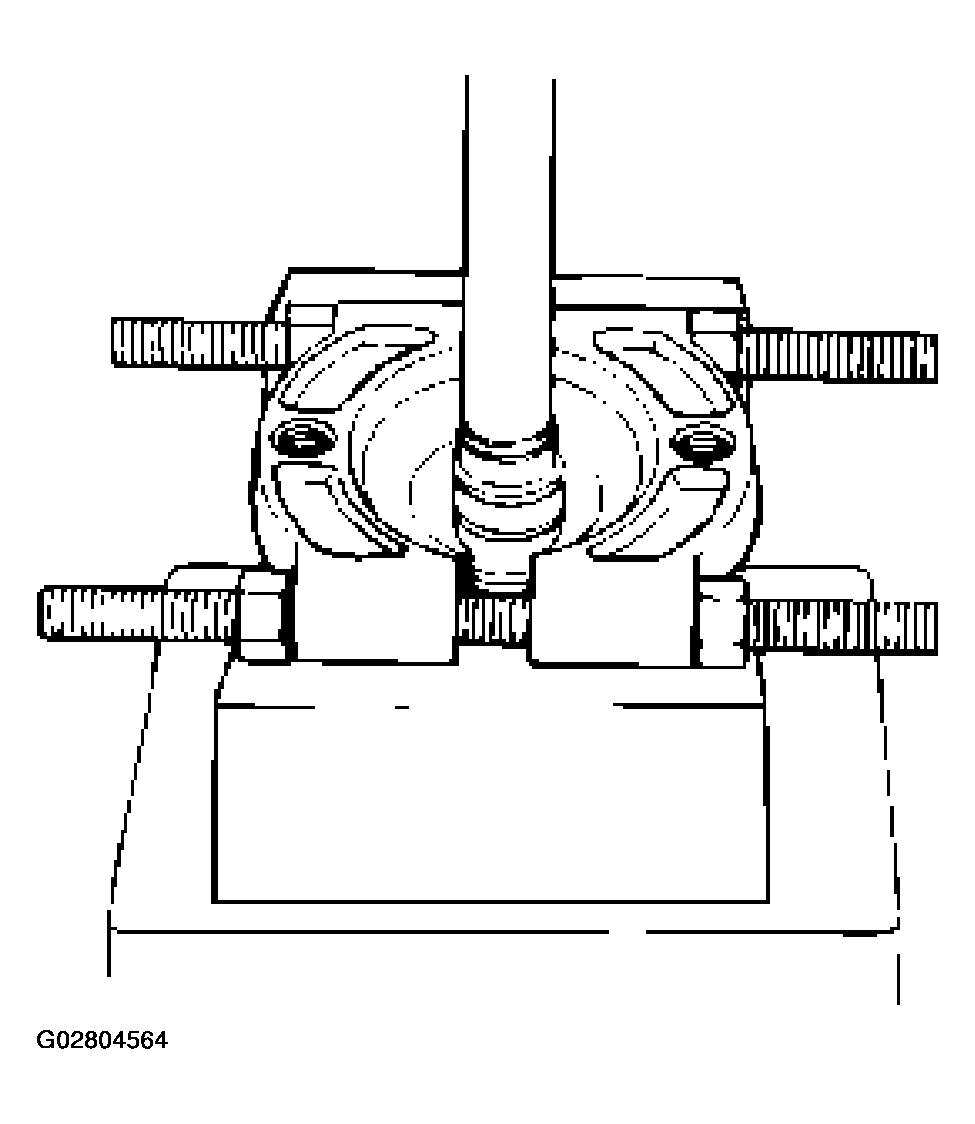

    Fig 3: Removing Inner Race From Shaft
    G02804564Courtesy of ISUZU MOTOR CO.
