Drum Brake Model: Installation

1. Emergency brake assembly.
2. Install retainer.

   Note direction - do not install backwards.

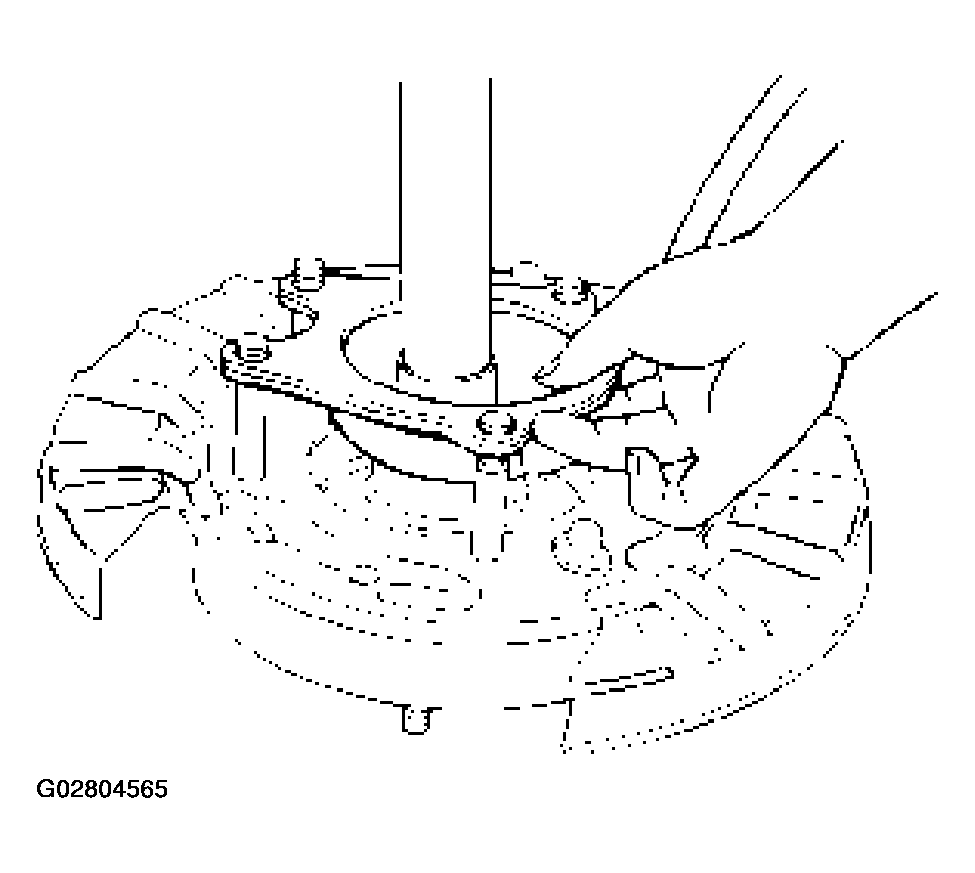

   Fig 1: Installing Retainer

   Courtesy of ISUZU MOTOR CO.
3. Install oil seal. Note direction.
4. Install bearing assembly, using installer and press.

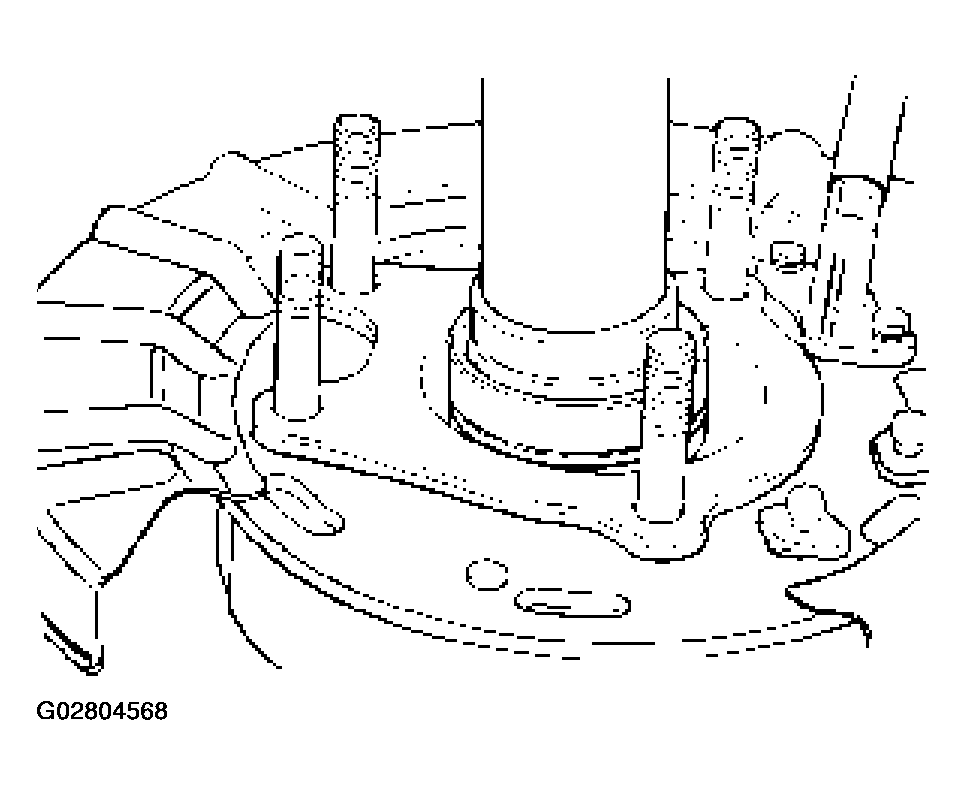

   Fig 2: Installing Oil Seal

   Courtesy of ISUZU MOTOR CO.
   NOTE: Install bearing with cup towards inboard side.

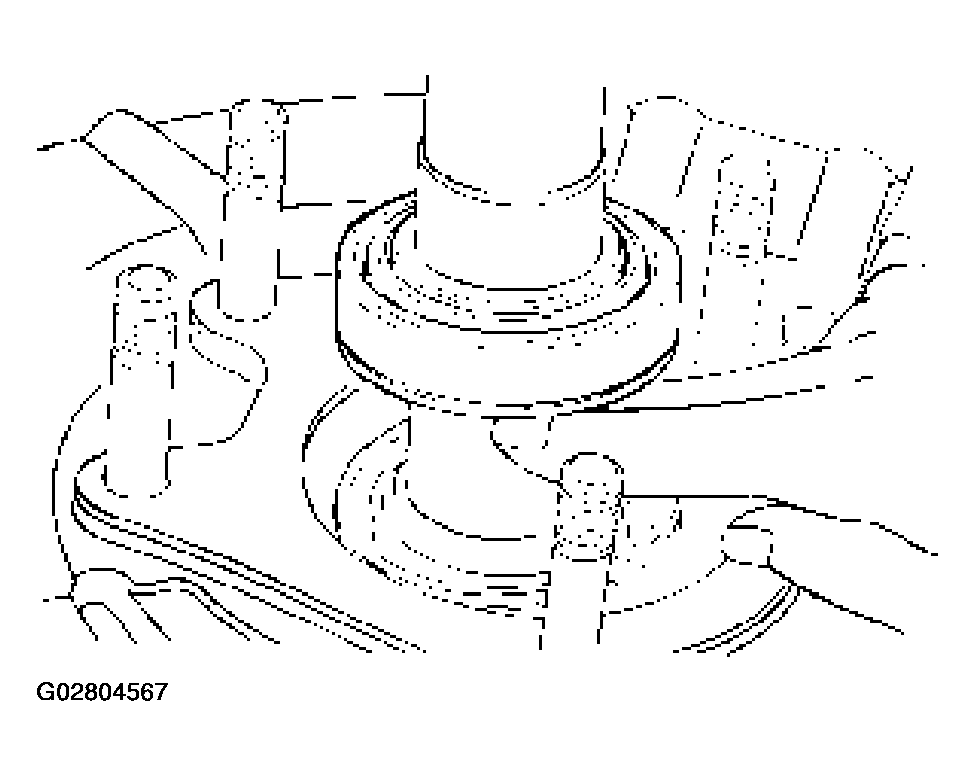

   Fig 3: Installing Bearing Assembly

   Courtesy of ISUZU MOTOR CO.
5. Install retainer ring, using installer and press.

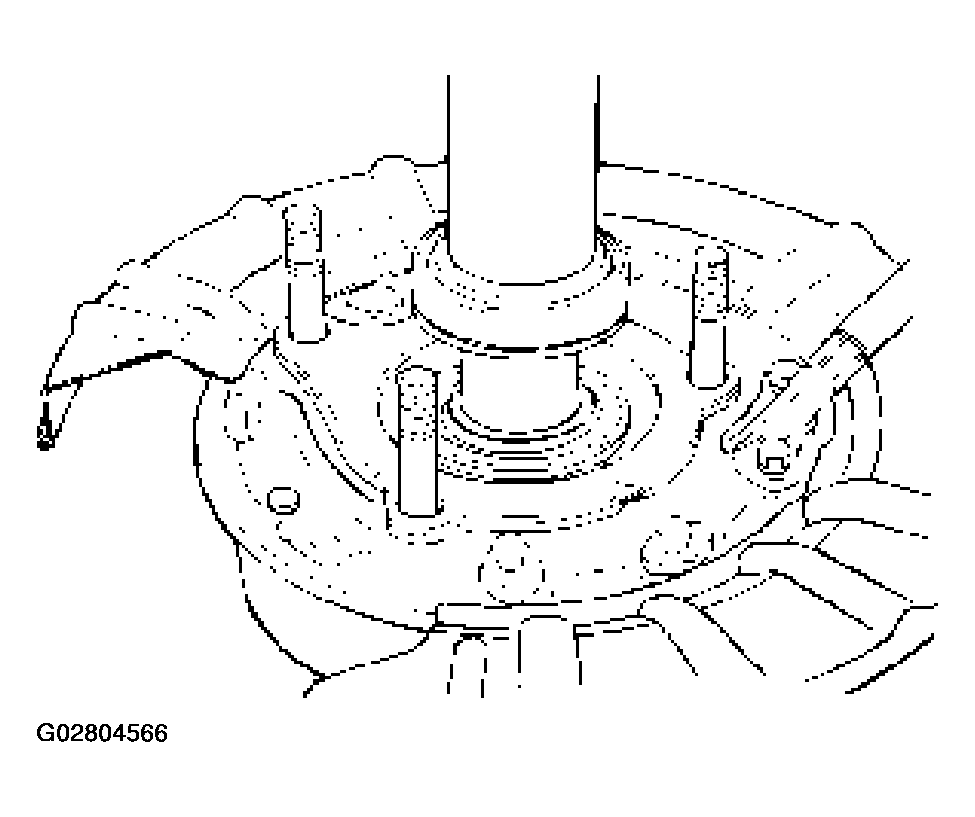

   Fig 4: Installing Retainer Ring

   Courtesy of ISUZU MOTOR CO.
6. Install snap ring.
7. Install axle shaft assembly into housing.
8. Install bolts, lock washers, and nuts.

Tighten the retainer nuts to the specified torque.

Torque:  75 N.m (55 lb ft)
