Pinion Shaft Oil Seal And Associated Parts

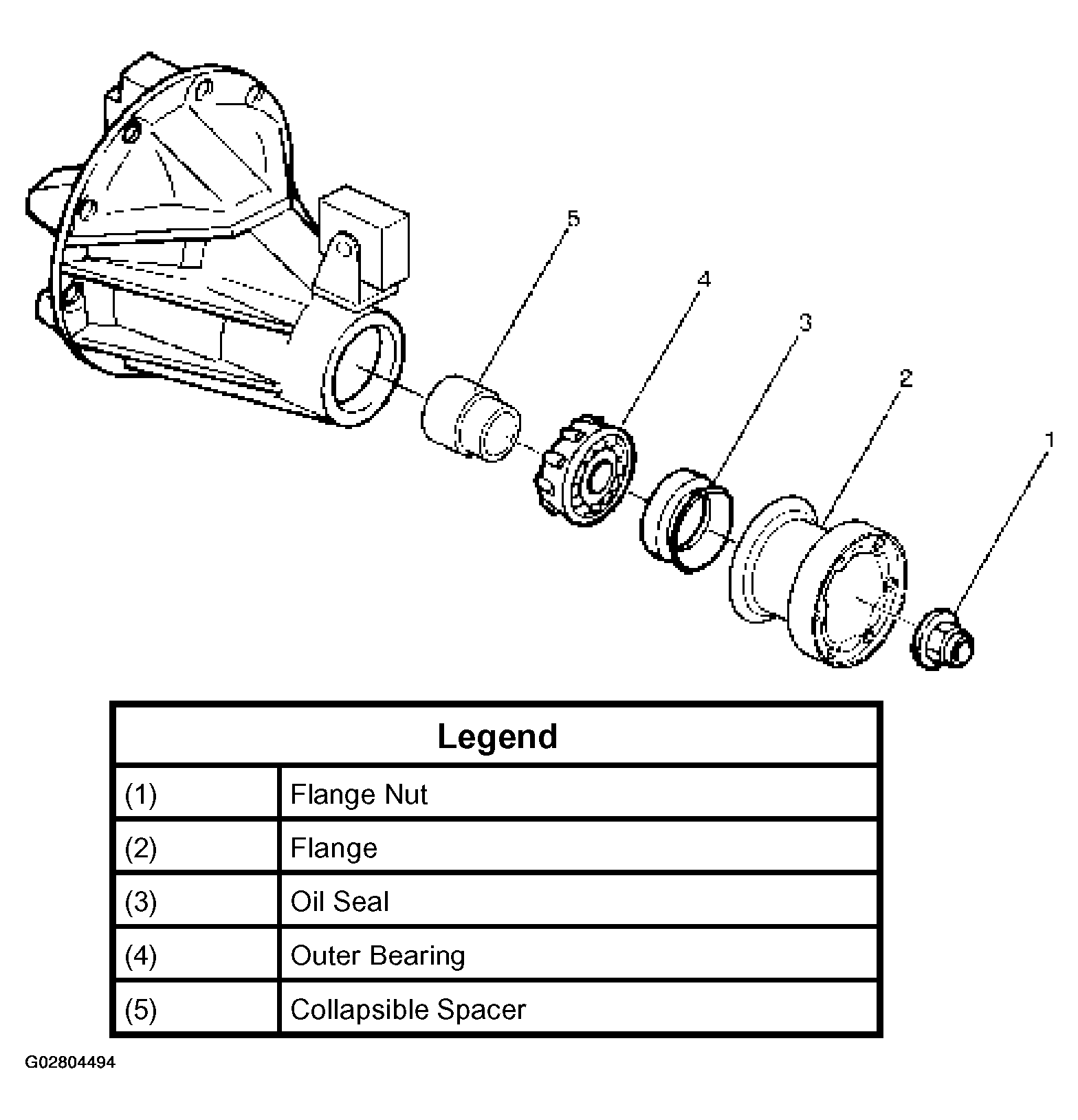

Fig 1: Identifying Pinion Shaft Oil Seal And Associated Parts

G02804494

Courtesy of ISUZU MOTOR CO.
