Brake Pedal: Installation

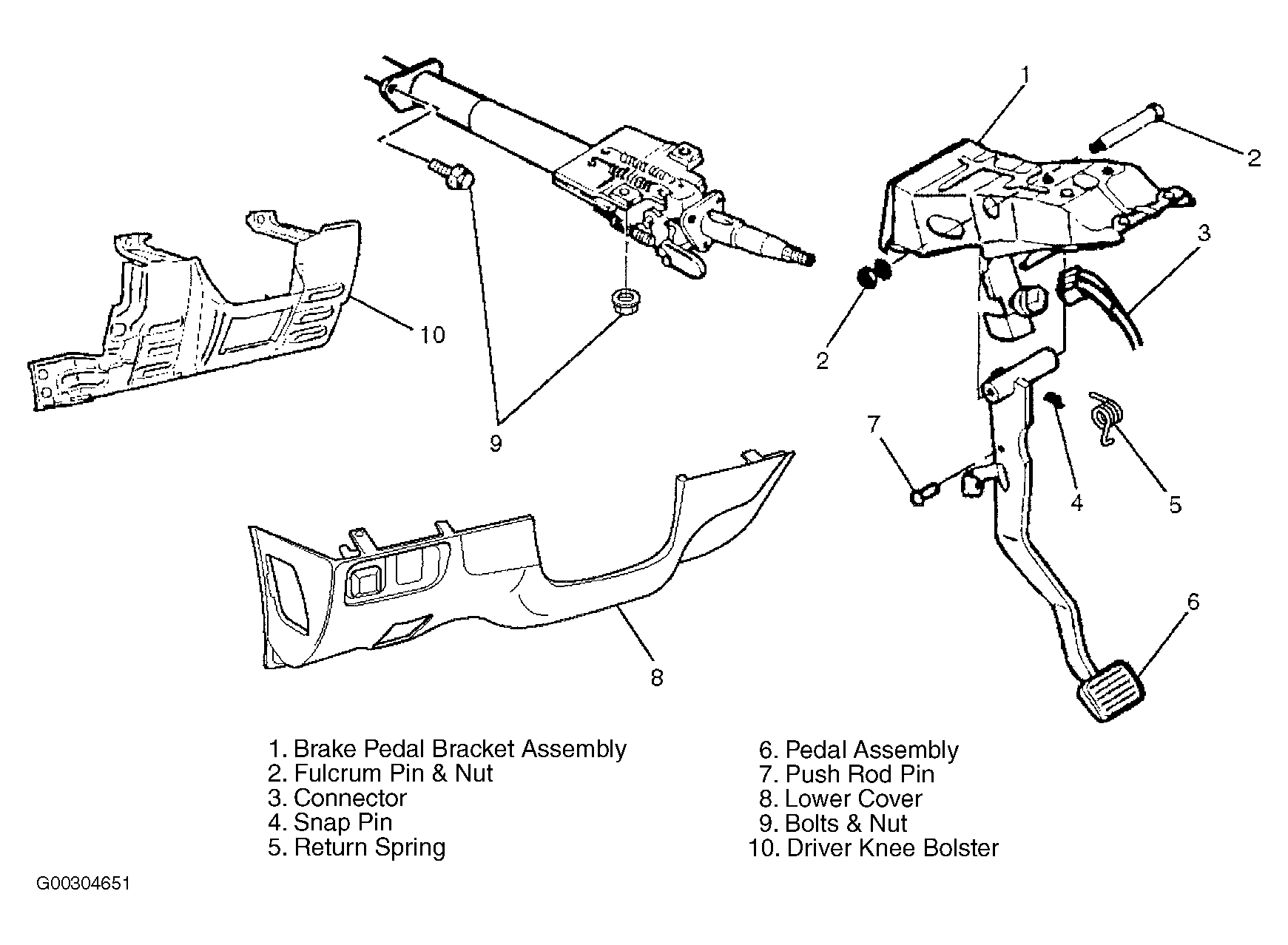

  1. Apply grease to the entire circumference of the fulcrum pin. Install pedal assembly and fulcrum pin and nut. See Figure. Tighten the nut to the specified torque. See TORQUE SPECIFICATIONS . Install the brake pedal bracket assembly. Tighten the bolts and nuts to the specified torque. Install return spring.
  2. Adjust pedal free travel. See BRAKE PEDAL HEIGHT, FREE PLAY & STOPLIGHT SWITCH  under ADJUSTMENTS. Tighten the steering column fixing bolt (dash panel) to the specification. See TORQUE SPECIFICATIONS . Tighten the steering column fixing nut (cross beam) to the specification.
  3. Apply grease to the entire circumference of the push rod pin. Install push rod pin and snap pin. Connect the anti-theft control module connector. See appropriate ANTI-THEFT SYSTEMS article. Connect the stop light switch connector.
  4. Install driver knee bolster and lower cover. Install the engine hood opening lever. Connect the yellow 3-way SRS connector located under the steering column. Connect the negative battery terminal cable.
