DTC 46: Rear Dump Solenoid Coil Failure (Flash Out) C0252, C0254 (Serial Communications)

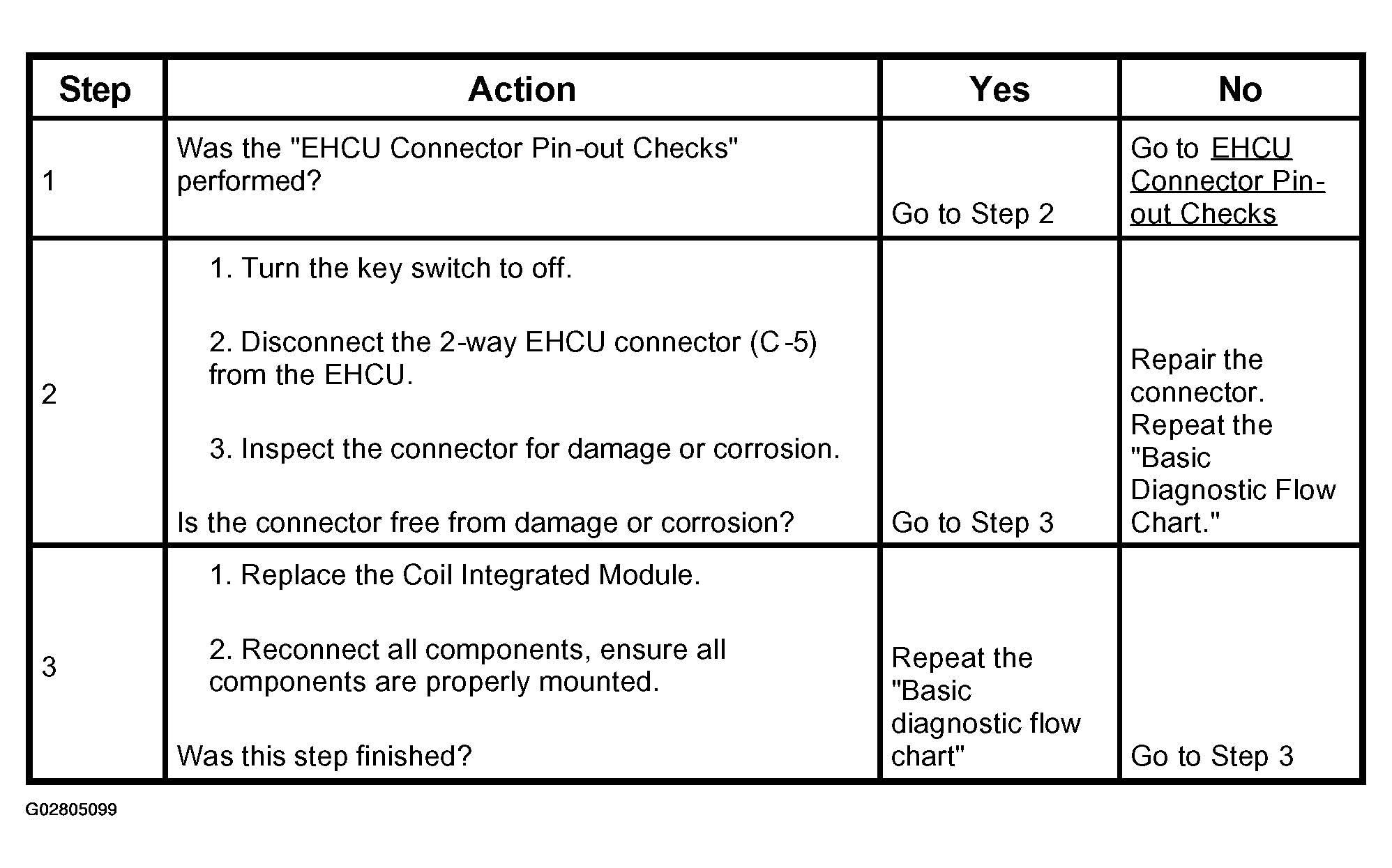

Fig 1: Diagnosis Procedure - Rear Dump Solenoid Coil Failure (DTC 46 (Flash Out) / C0252, C0254 (Serial Communications)
G02805099Courtesy of ISUZU MOTOR CO.
