DTC 42: Fl Dump Solenoid Coil Failure (Flash Out) C0246, C0248 (Serial Communications)

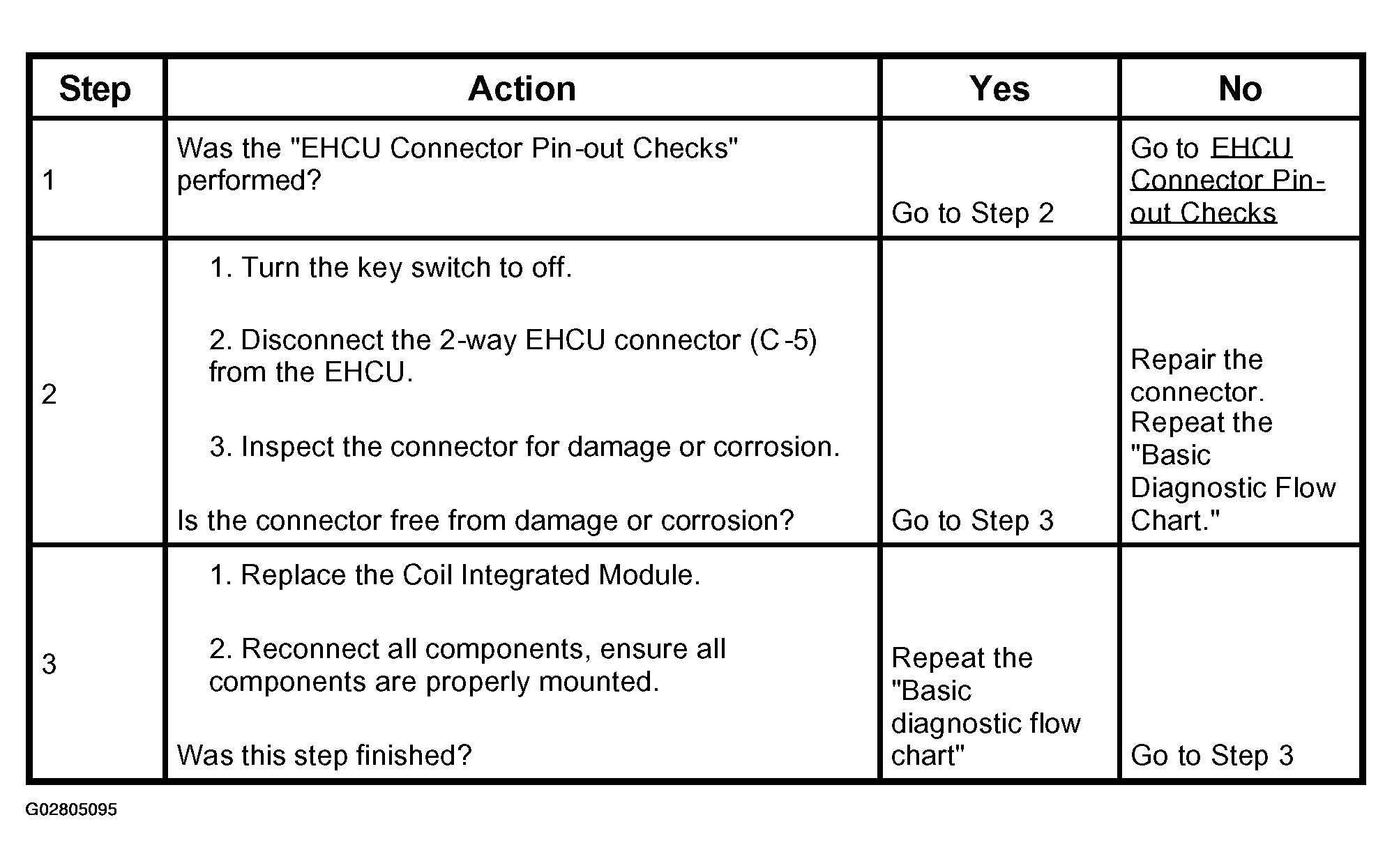

Fig 1: DIAGNOSIS PROCEDURE - FL Dump Solenoid Coil Failure (DTC 42 (Flash Out) / C0246, C0248 (Serial Communications)
G02805095Courtesy of ISUZU MOTOR CO.
