DTC 45: Rear Isolation Solenoid Coil Failure (Flash Out) C0251, C0253 (Serial Communications)

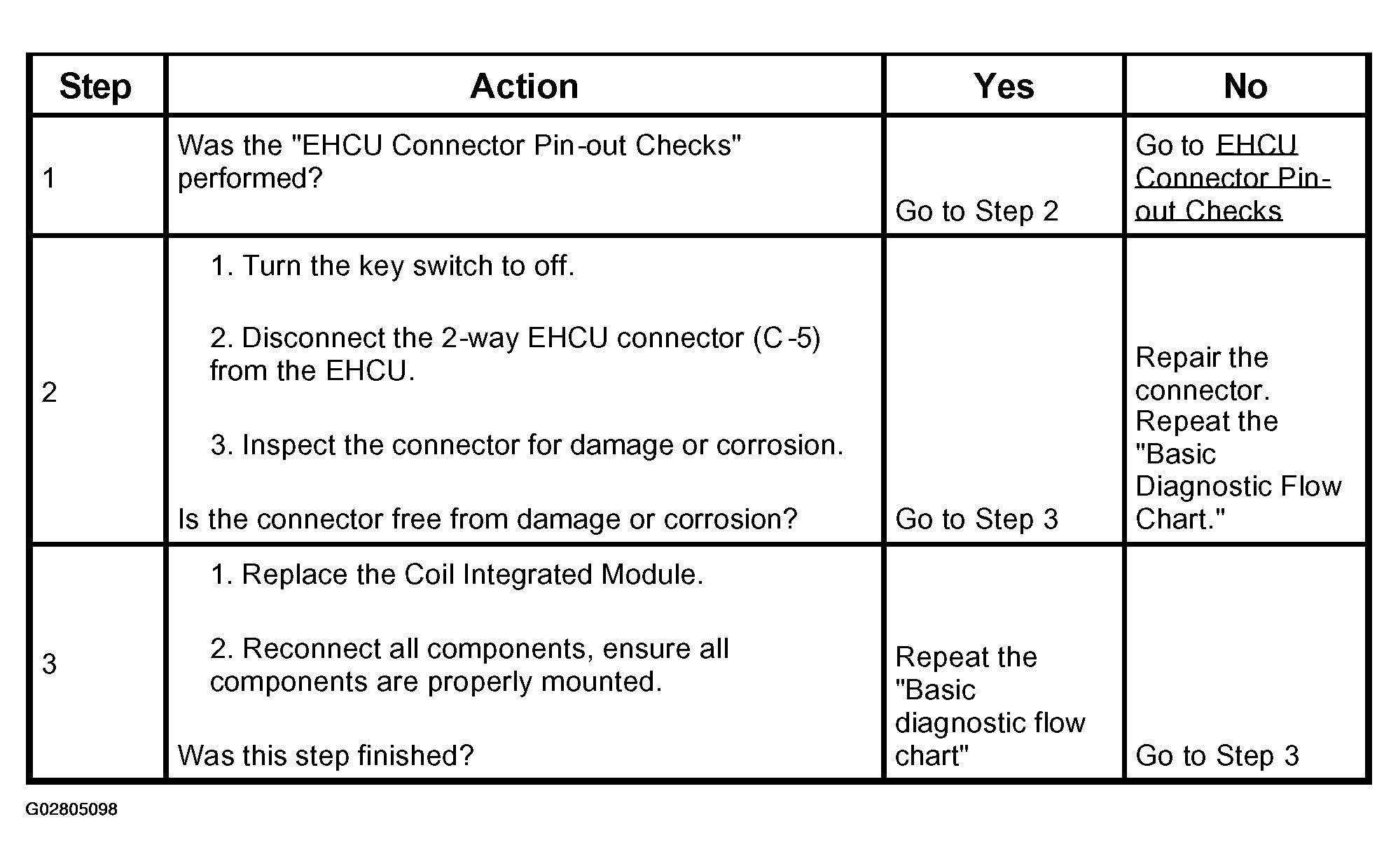

Fig 1: Diagnosis Procedure - Rear Isolation Solenoid Coil Failure (DTC 45 (Flash Out) / C0251, C0253 (Serial Communications)
G02805098Courtesy of ISUZU MOTOR CO.
