DTC 44: Fr Dump Solenoid Coil Failure (Flash Out) C0242, C0244 (Serial Communications)

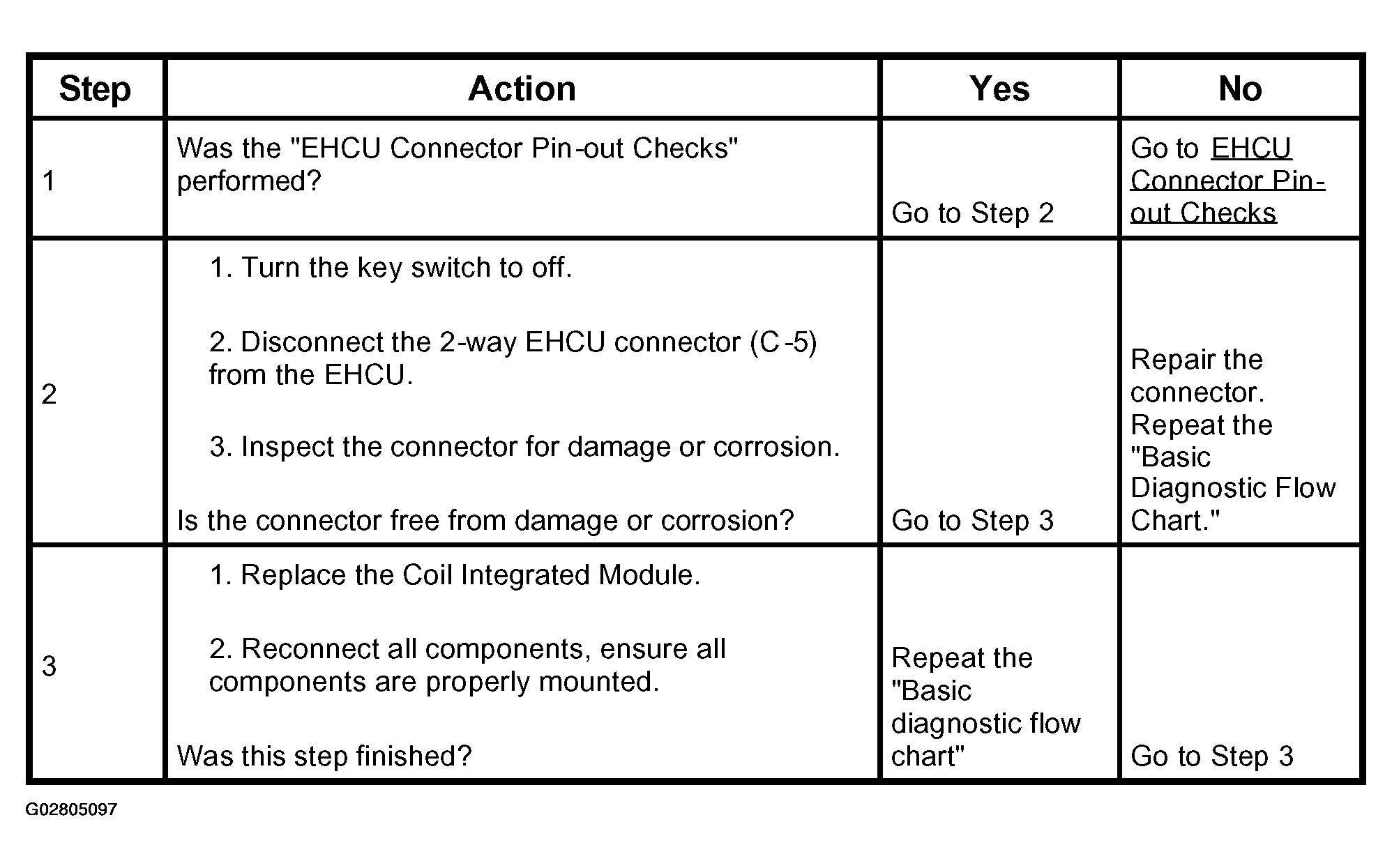

Fig 1: Diagnosis Procedure - FR Dump Solenoid Coil Failure (DTC 44 (Flash Out) / C0242, C0244 (Serial Communications)
G02805097Courtesy of ISUZU MOTOR CO.
