DTC 43: Fr Isolation Solenoid Coil Failure (Flash Out) C0241, C0243 (Serial Communications)

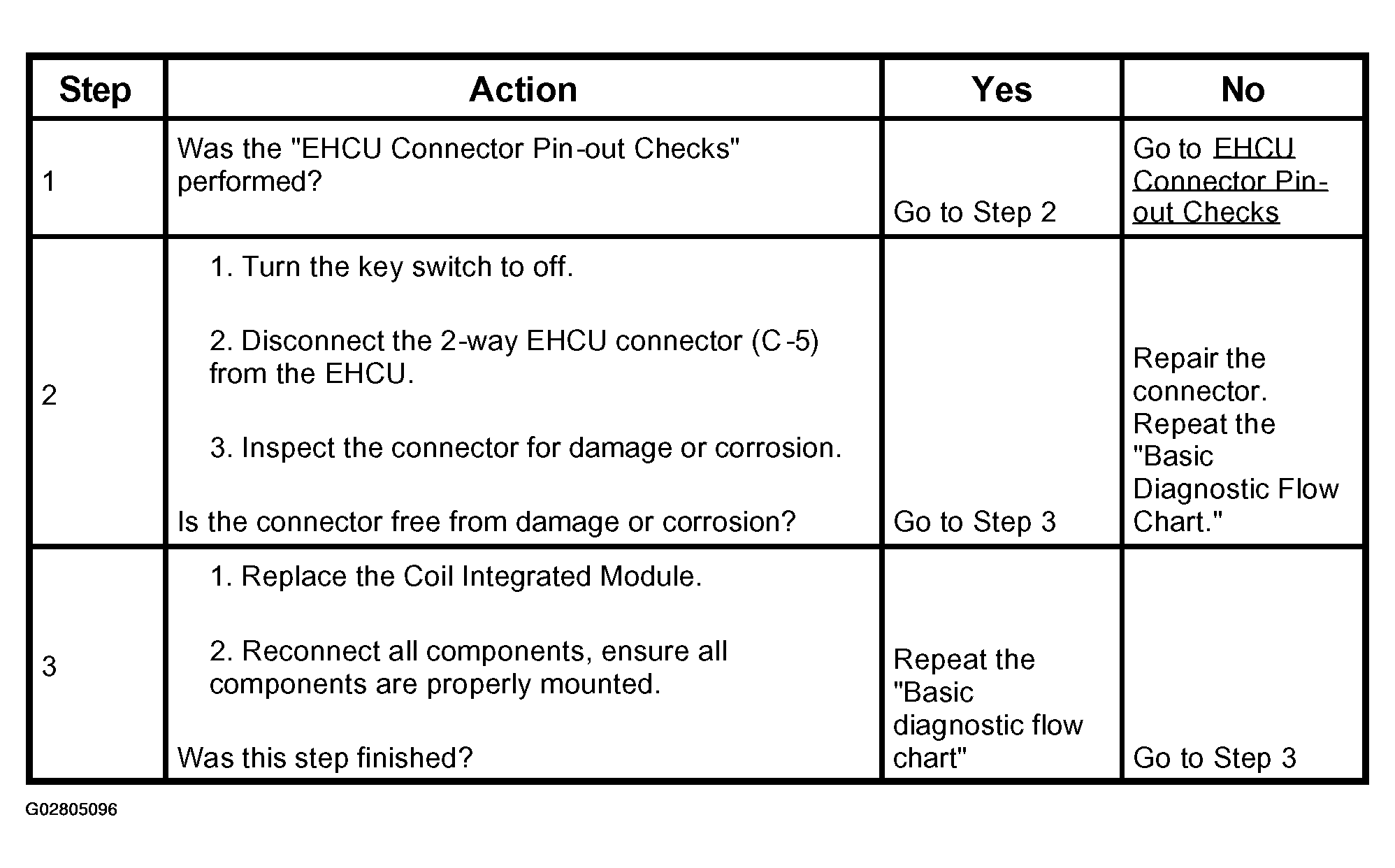

Fig 1: Diagnosis Procedure - FR Isolation Solenoid Coil Failure (DTC 43 (Flash Out) / C0241, C0243 (Serial Communications)
G02805096Courtesy of ISUZU MOTOR CO.
