DTC 35: EHCU Valve Relay Failure (Flash Out) C0265, C0266 (Serial Communications)

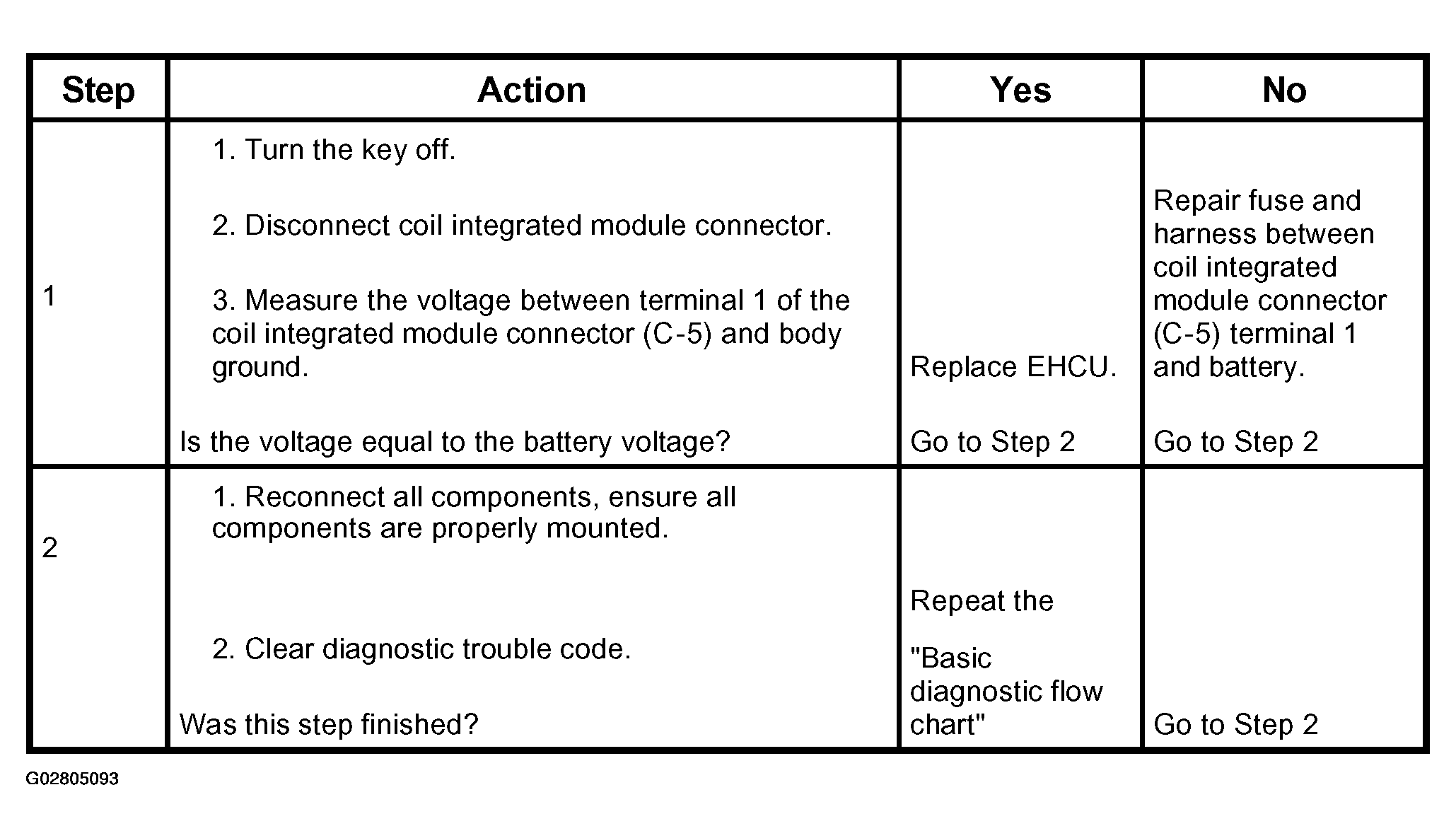

Fig 1: Diagnosis Procedure - EHCU Valve Relay Failure (DTC 35 (Flash Out) / C0265, C0266 (Serial Communications)
G02805093Courtesy of ISUZU MOTOR CO.
