Rear Door Trim Panel And Associated Parts: Removal

Disconnect the battery ground cable.
Remove the pull box.
- Remove the fixing screw.

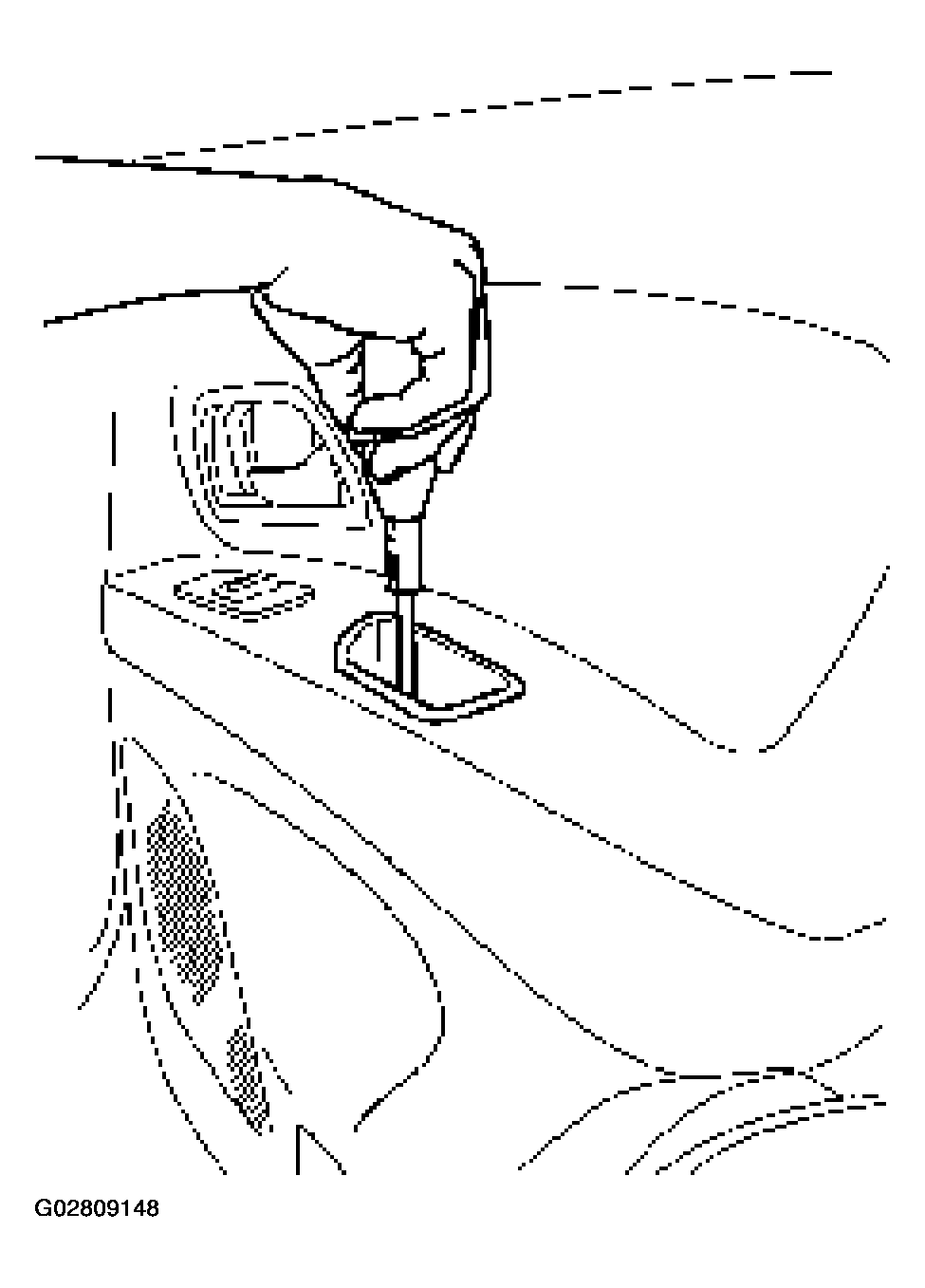

  Fig 1: Removing Screw Pull Box
  Courtesy of ISUZU MOTOR CO.
Remove the power window switch.
- Pry the power window switch (1) and remove the connector.

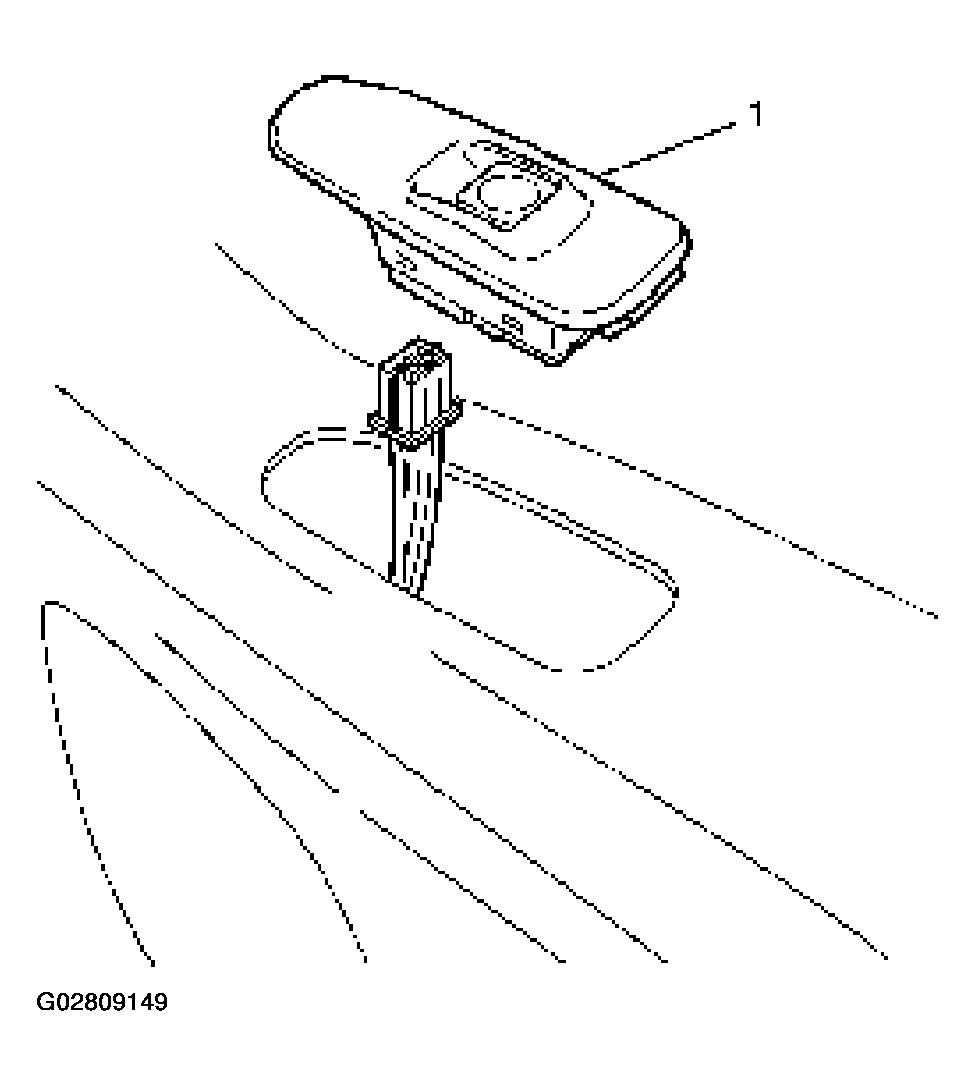

  Fig 2: Removing Power Window Switch
  Courtesy of ISUZU MOTOR CO.
Remove the inside handle.
- Open the screw cover and remove the screw.
- Disconnect the cable.

  Fig 3: Removing Screw Of Inside Handle
  Courtesy of ISUZU MOTOR CO.
Remove the door trim panel.
- Remove the trim panel with the seven clips from the door panel.

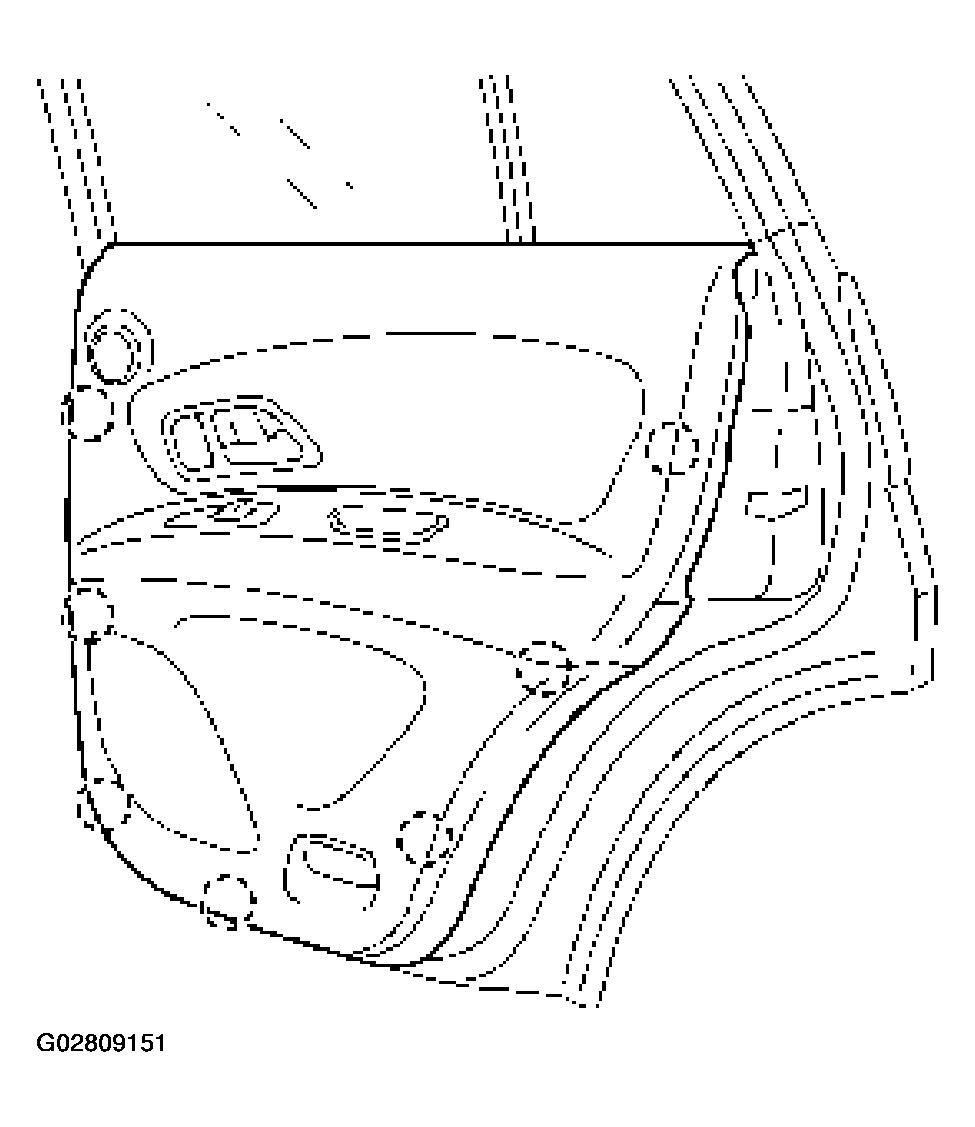

  Fig 4: Removing Clips Of Trim Panel
  Courtesy of ISUZU MOTOR CO.
- Disconnect the tweeter and the courtesy light connectors.
Remove the inner waist seal.
Remove the tweeter.
Remove the courtesy light.
