Parts Location: Removal

  1. Open the hatch gate and tail gate.
  2. Remove the spare tire (3).
    • Put the spare tire handle (1) to the center of upper side of rear bumper (2) and turn counterclockwise. Put spare tire down.

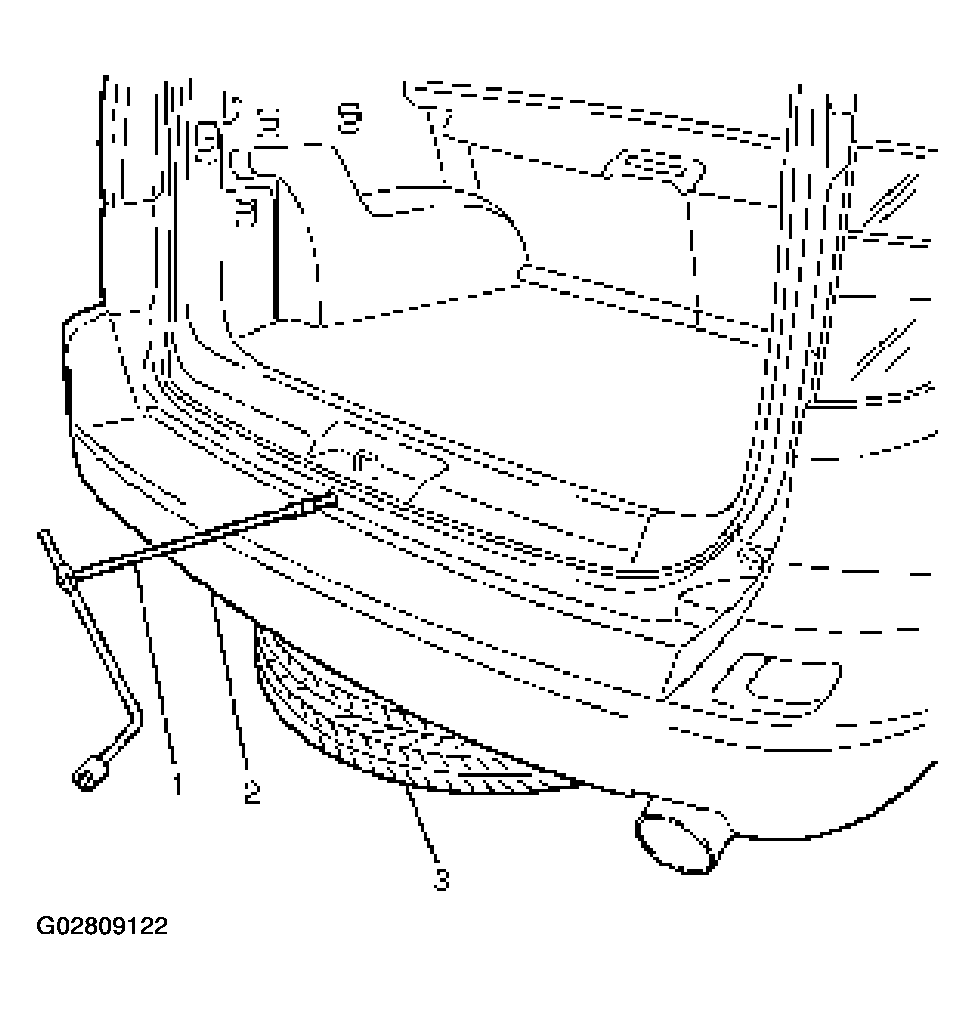

      Fig 1: Removing Spare Tire By Using Spare Tire Handle
      G02809122Courtesy of ISUZU MOTOR CO.
  3. Remove the spare tire support.
    • Remove the four bolts that are fixed to frame cross member.
  4. Remove the spare tire hanger assembly.
    • Remove the two fixing bolts.
