Rear Door Speaker: Removal

  1. Disconnect the battery ground cable.
  2. Remove the rear door trim pad.
  3. Remove the rear speaker (2).
    • Remove the three screws and the speaker spacer (1).
    • Disconnect the connector (3).

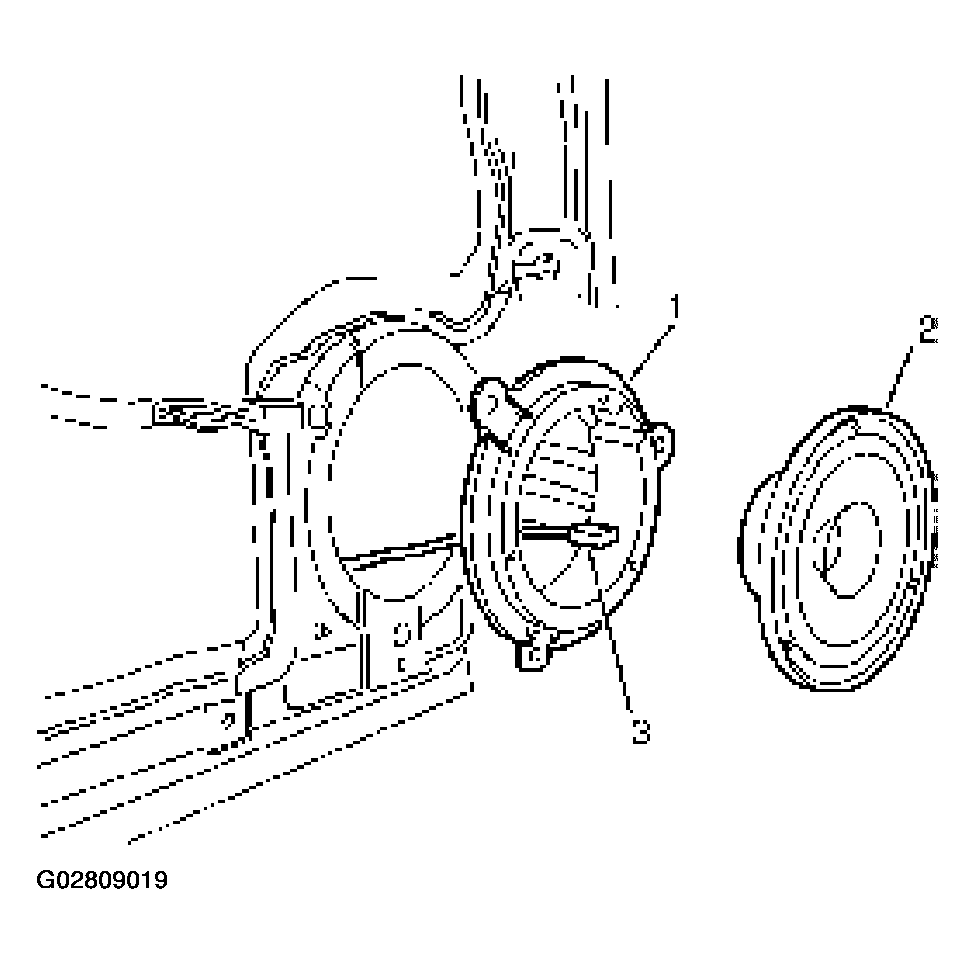

Fig 1: Removing Rear Speaker
G02809019Courtesy of ISUZU MOTOR CO.
